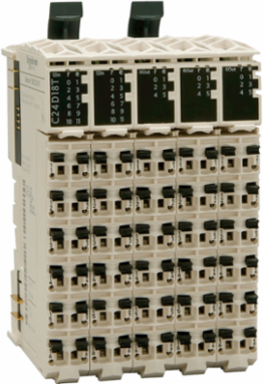

Schneider Electric TM5C12D8T Modicon TM5 Compact I/O Expansion Block, 20 I/O, 12 DI, 8 DO, Transistor
Schneider Electric TM5C12D8T Modicon TM5 Compact I/O Expansion Block, 20 I/O, 12 DI, 8 DO, Transistor
- MPN: TM5C12D8T
- PPN: SCH-TM5C12D8T
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$501.80/ EA
Description
This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. This compact I/O expansion block features 12 discrete inputs with sink logic and 8 discrete transistor outputs with source logic. It is an expansion block with 3 module(s) x 4 digital input with input voltage of 24V DC and 2 module(s) x 4 digital output. There is an isolation between 500Vrms AC insulation between channel and bus, no insulation between channels. It is furnished with removable spring terminal block for electrical connection. It is an IP20 rated product. The enclosure is made of white plastic. It weighs 0.37kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. This product is compatible with Modicon LMC058 motion controller and Modicon M258 logic controller. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.
Specifications
Environment
- Product Certifications
- C-Tick || GOST-R || CSA || cULus
- Standards
- IEC 61131-2 || UL 508 || CSA C22.2 No 213 || CSA C22.2 No 142
- Storage Altitude
- 0-3000 m
- Ip Degree Of Protection
- IP20IEC 61131-2
- Shock Resistance
- 15 gn 11 ms
- Pollution Degree
- 2 IEC 60664
- Relative Humidity
- 5-95 % without condensation
- Resistance To Fast Transients
- 1 kV IEC 61000-4-4 I/O) || 1 kV IEC 61000-4-4 shielded cable) || 2 kV IEC 61000-4-4 power lines)
Resistance To Electromagnetic Fields1 V/m 2...2.7 GHz IEC 61000-4-3 || 10 V/m 80...2000 MHz IEC 61000-4-3
Mounting SupportDIN rail
Ambient Air Temperature For Operation-10-50 °C vertical installation) || -10-60 °C horizontal installation)
Vibration Resistance1 gn 8.4-150 Hz DIN rail || 3.5 mm 5-8.4 Hz DIN rail
Net Weight0.24 kg
Ambient Air Temperature For Storage-40-70 °C
Resistance To Electrostatic Discharge4 kV on contact IEC 61000-4-2 || 8 kV in air IEC 61000-4-2
Operating Altitude0...2000 m
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1511024EN
- Pvc Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- ENVEOLI1511024EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Toxic Heavy Metal FreeYes
Reach Free Of SvhcYes
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Discrete Output Type
- transistor
- Discrete Input Voltage
- 24 V
- Discrete Input Voltage Type
- DC
- Maximum Voltage Drop
- <0.3 V at 500 mA output
- Discrete Input Current
- 3.75 mA
- Input Voltage Limits
- 20.4...28.8 V
- Discrete Output Current
- 0.5 A per output
- Input/Output Number
- 20
- Current Consumption
- 68 mA 5 V DC bus || 80 mA 24 V DC input/output
- Input/Output Number Of Splitter Box
- 12 I + 8 O
- Analogue Input Number
- 0
- Discrete Output Number
- 8
- Colour
- white
- Sensor Power Supply
- 24-24 V, 500 mA for all channels overload, short-circuit and reverse polarity protection
- Discrete Input Number
- 12
- Surge Withstand
- 0.5 kV differential mode 24 V DC IEC 61000-4-5 || 1 kV common mode 24 V DC IEC 61000-4-5
- Max Current
- 1000 mA sensor supply || 1500 mA actuator supply || 4000 mA loads on I/O power segment
- Peak Output Current
- 4 A
- Input Filtering
- <= 100 ms hardware || <= 25 ms configurable by software
Discrete Output Logicsource
Output Voltage24 V DC
Wiring Mode3-wire discrete input || 3-wire discrete output
Response Time<= 300 µs from state 0 to state 1 output || <= 300 µs from state 1 to state 0 output
MarkingCE
Voltage State 0 Guaranteed<= 5 V
Maximum Leakage Current5 µA when switched off) output
Output Voltage Limits20.4...28.8 V DC
Disturbance Radiated/ConductedCISPR 11
Electromagnetic CompatibilityEN/IEC 61000-4-6
Number Of Modulesdigital input 3 x 4 || digital output 2 x 4
Maximum Power Dissipation In W2.36 W
Discrete Input Logicsink
Isolation500 Vrms AC insulation between channel and bus || no insulation between channels
Local Signallingpower supply 5 LEDs green) || power supply 5 LEDs red) || input status 12 LEDs green) || output status 8 LEDs yellow)
Input Impedance6.4 kOhm
Electrical Connectionremovable spring terminal block
Enclosure Materialplastic
Voltage State 1 Guaranteed>= 15 V
Specifications
- Range Of Product
- Modicon TM5
Product Or Component Typecompact I/O expansion block
