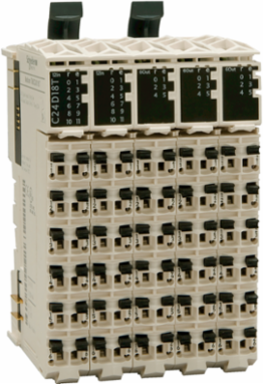

Schneider Electric TM5C24D12R Modicon TM5 Compact I/O Expansion Block, 36 I/O, 24 DI, 12 DO Relay
- MPN: TM5C24D12R
- PPN: SCH-TM5C24D12R
CAD
$636.42
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Modicon TM5 Compact I/O Expansion Block, 36 I/O, 24 DI, 12 DO Relay
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Austria, Brazil, France
Depth75 mm
Physical Attributes
- Color
- White
Complementary Attributes
- Minimum Switching Current
- 10 mA 5 V DC
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Local Signalling
- 24 LEDs (green) for input status, 4 LEDs (green) for power supply, 4 LEDs (red) for power supply, 12 LEDs (yellow) for output status
- Response Time
- <= 12 ms from state 0 to state 1 output, <= 12 ms from state 0 to state 1 output, <= 12 ms from state 0 to state 1 output, <= 10 ms from state 1 to state 0 output, <= 10 ms from state 1 to state 0 output, <= 10 ms from state 1 to state 0 output<= 12 ms from state 0 to state 1 output, <= 12 ms from state 0 to state 1 output, <= 12 ms from state 0 to state 1 output, <= 10 ms from state 1 to state 0 output, <= 10 ms from state 1 to state 0 output
- Vibration Resistance
- 1 gn 8.4-150 Hz) on DIN rail, 3.5 mm 5-8.4 Hz) on DIN rail
- Carbon Footprint Of The Distribution Phase [A4]
- 0.011617815562629075, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.022915602254677345
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 82 kg CO2 eq., 82.29029447556577
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Device Type
- PLC System - PLC Component
- Traceability
- Yes
- Average Life Duration
- 20 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- ADVANCED
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Electrical Connection
- removable spring terminal block
- Front Installation Possible
- false
- Isolation Between Channels And Bus
- 500 Vrms AC
- Mechanical Durability
- 20000000 cycles
- Network Type
- DC
- Power Dissipation In W
- 4.3 W
- Product Or Component Type
- compact I/O expansion block
- Radio Standard Gprs
- false
- Radio Standard Umts
- false
- Returnability
- No
- Software Version
- v6.2.5-6
- Supporting Protocol For Can
- false
- Supporting Protocol For Devicenet Safety
- false
- Supporting Protocol For Foundation Fieldbus
- false
- Supporting Protocol For Knx
- false
- Supporting Protocol For Modbus
- false
- Supporting Protocol For Profibus
- false
- Supporting Protocol For Profinet Io
- false
- Supporting Protocol For Safetybus P
- false
- Supporting Protocol For Suconet
- false
- Total Lifecycle Carbon Footprint
- 83 kg CO2 eq.
- Voltage State 1 Guaranteed
- >= 15 V>= 15 V
- Certified For Ul Hazardous Location Class I
- false
- Certified For Ul Hazardous Location Class Iii
- false
- Certified For Ul Hazardous Location Division 2
- false
- Digital Outputs Configurable
- false
- System Accessory
- false
- Short Circuit Protection Outputs Present
- false
- Pep Code
- ENVPEP1511024_V2
- Pep Verification Date
- 2025-12-17
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; Austria, AT
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; Turkey, TR
- Recyclability Potential, In %
- 1
- Width Nominal
- 12.5 mm
- Appendant Operation Agent (Ex Ia)
- false
- Certified For Ul Hazardous Location Group A (Acetylene)
- false
- Certified For Ul Hazardous Location Group C (Ethylene))
- false
- Certified For Ul Hazardous Location Group E (Metal Dusts)
- false
- Certified For Ul Hazardous Location Group G (Non Conductive Dust)
- false
- Io-link Master Present
- false
- Rack-assembly Possible
- false
- Supporting Protocol For Data-highway
- false
- Supporting Protocol For Tcp/Ip
- false
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Number Of Modulesdigital input 2 x 12, relay output 2 x 6
Typical Current Consumption68 mA 5 V DC, 165 mA 24 V DC for inputs/outputs
Certificate AgencycULus, GOST-R, CSA, cULus, GOST-R, CSA, C-tick
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.05292909288804595, 0.1 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]1 kg CO2 eq., 1.1169203251717517
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityNo
Field Service DivisionIDIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1511024EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1901
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionAdvanced
Market SegmentationIndustrial
Bearing Track Assembly Possibletrue
Enclosure MaterialPlastic
Isolation Between Channelsnone
MarkingCE
Mounting SupportDIN rail
Optical Interface Presentfalse
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Radio Standard Bluetoothfalse
Radio Standard Gsmfalse
Range Of ProductModicon TM5
Shock Resistance15 gn 11 ms
Supporting Protocol For Asifalse
Supporting Protocol For Devicenetfalse
Supporting Protocol For Ethercatfalse
Supporting Protocol For Interbusfalse
Supporting Protocol For Lonfalse
Supporting Protocol For Other Bus Systemsfalse
Supporting Protocol For Profinet Cbafalse
Supporting Protocol For Profisafefalse
Supporting Protocol For Sercosfalse
Sustainable PackagingNo
Voltage State 0 Guaranteed<= 5 V<= 5 V
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Certified For Ul Hazardous Location Class Iifalse
Certified For Ul Hazardous Location Division 1false
Dc Supply Voltage24-24 V
Fieldbus Connection Over Separate Bus Coupler Possiblefalse
Digital Inputs Configurablefalse
Time Delay At Signal Change0.1-0.1 ms
Database Version2024-01
Pcr VersionPCR-4-ed4-FR-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo expand digital and/or analogue I/O control system configurations 100% of the time for 10 years in industrial atmosphere.
Functional-unit Unitunit
Energy Consumption On Product Lifetime, In Kwh178.704
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal99 mm
Input/Output Number36
Appendant Operation Agent (Ex Ib)false
Certified For Ul Hazardous Location Group B (Hydrogen)false
Certified For Ul Hazardous Location Group D (Propane))false
Certified For Ul Hazardous Location Group F (Carbonaceous Dust)false
Input/Output Number Of Splitter Box24 I + 12 O
Performance Level According To En Iso 13849-1none
Supporting Protocol For As-interface Safety At Workfalse
Supporting Protocol For Ethernet/Ipfalse
Wall Mounting/Direct Mounting Possiblefalse
Package Weight(Lbs)289.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -10-50 °C vertical installation), -10-50 °C vertical installation), -10-60 °C horizontal installation), -10-60 °C horizontal installation)-10-50 °C vertical installation), -10-50 °C vertical installation), -10-60 °C horizontal installation)
- Reach Free Shvc
- Yes
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Ambient Air Temperature For Storage
- -40-70 °C-40-70 °C
- Environmental Disclosure
- ENVPEP1511024_V2
- Ip Degree Of Protection
- IP20
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
- Relative Humidity
- 5-95 % without condensation
- Pep Verification Date
- 2025-12-17
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Take BackNo
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Carbon Footprint83.49467731144289
Circularity ProfileENVEOLI1511024EN
Eu Rohs DirectiveCompliant By Exemption
Operating Altitude0...6561.68 ft (0...2000 m)
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep CodeENVPEP1511024_V2
Pcr VersionPCR-4-ed4-FR-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- compact I/O expansion block
Range Of ProductModicon TM5
ETIM
- ETIM 8
- EC001599
ETIM 9EC001599
Output Attributes
- Discrete Output Current
- 2 A, 2 A per output
- Discrete Output Voltage
- 30 V DC 24...36 V)relay, 240 V AC 184...276 V)AC
- Discrete Output Logic
- source or sink
- Discrete Output Voltage Type
- DC
Discrete Output Number12 relay at 30 V DC, at 240 V AC, 12
Output Voltage Limits24...36 V, 184...276 V
Discrete Output Typerelay
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Discrete Input Number
- 24 at 24 V DC, 24
- Discrete Input Current
- 3.75 mA at 24 V DC
- Discrete Input Voltage
- 24 V DC 20.4...28.8 V)
- Input Impedance
- 6.4 kOhm
Input Filtering<= 100 ms hardware, <= 100 ms hardware, <= 25 ms configurable by software, <= 25 ms configurable by software, <= 100 ms hardware, <= 100 ms hardware, <= 25 ms configurable by software, <= 25 ms configurable by software
Discrete Input Logicsink
Discrete Input Voltage TypeDC
Input Voltage Limits20.4...28.8 V
