Schneider Electric

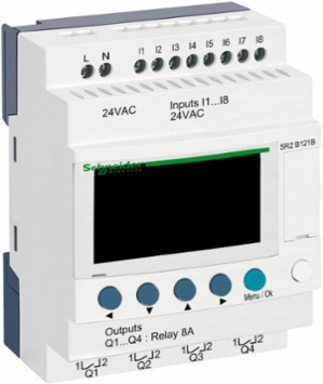

Schneider Electric SR2B121B Compact Smart Relay 24V AC, 12 I/O, 4 Outputs, IP20/IP40, 0.25 kg

  • MPN: SR2B121B
  • PPN: SCH-SR2B121B
  • UNSPSC: 39122331
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $262.14

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This Schneider Electric Zelio Logic SR2B compact smart relay / programmable controller uses a supply voltage of 24 volts alternating current, has 12 inputs / outputs with screw-clamp terminals, has an integrated clock and LCD display. This compact programmable relay is ideal for management, remote control or monitoring of simple automation systems. It is suitable for both industrial and commercial applications. It has compact form-factor, allowing installation on DIN rail. It also offers simple programming, display and diagnosing of malfunctions display and navigation buttons. Simple ladder programming, adapted for non-specialists. Discovery package, coming with Zelio Soft programming software, the simplest way to learn and use this relay. Built-in EEPROM flash memory for data backup up to 10 years, easy-to-recover after a power shortage or incident. This product meets EN/IEC 61000-4-3, EN/IEC 61000-4-4 level 3, EN/IEC 61000-4-11, EN/IEC 60068-2-27 Ea, EN/IEC 61000-4-5, EN/IEC 61000-4-6 level 3, EN/IEC 61000-4-2 level 3, EN/IEC 60068-2-6 Fc and EN/IEC 61000-4-12 standards. Simple to select, install and program, Zelio Logic is suitable for all your applications. Flexible, it offers you the choice of 2 ranges, compact or modular, extendable and 2 programming languages (FBD or LADDER). Easy to use, Zelio Logic provides a real alternative to solutions based on cabled logic or specific cards.

    Features

    • Simple ladder programming, adapted for non-specialists
    • Discovery package, coming with Zelio Soft programming software: the simplest way to learn and use this relay
    • Built-in EEPROM flash memory for data backup up to 10 years: easy-to-recover after a power shortage or incident

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of OriginFrance
    Weight243 g

    Complementary Attributes

    Maximum Altitude Transport3048 m
    Uimp Rated Impulse Withstand Voltage4 kV EN/IEC 60947-1 and EN/IEC 60664-1
    Maximum Supply Current145 mA without extension)
    Us Rated Supply Voltage24 V AC

    Important Information Attributes

    Persona Type IdsEU, OM, OM8
    Current State 0 Guaranteed<= 0.5 mA discrete input), <= 0.5 mA discrete input)<= 0.5 mA discrete input), <= 0.5 mA discrete input)
    Environmental CharacteristicEMC directive conforming to IEC 61000-6-2, EMC directive conforming to IEC 61000-6-3, EMC directive conforming to IEC 61000-6-4, EMC directive conforming to IEC 61131-2 zone Blow voltage directive conforming to IEC 61131-2
    Response Time50...255 ms FBD from state 1 to state 0)discrete input, 50 ms ladder from state 0 to state 1)discrete input, 50 ms ladder from state 1 to state 0)discrete input50...255 ms FBD from state 0 to state 1)discrete input10 ms from state 0 to state 1)relay output, 5 ms from state 1 to state 0)relay output
    Voltage State 0 Guaranteed<= 5 V discrete input, <= 5 V discrete input<= 5 V discrete input, <= 5 V discrete input
    Connections Terminalsscrew terminals, 1 x 0.2...1 x 2.5 mm² 25 AWG...14 AWG) semi-solid, screw terminals, 1 x 0.2...1 x 2.5 mm² 25 AWG...14 AWG) solidscrew terminals, 1 x 0.25...1 x 2.5 mm² 24 AWG...14 AWG) flexible with cable endscrew terminals, 2 x 0.2...2 x 1.5 mm² 24 AWG...16 AWG) solidscrew terminals, 2 x 0.25...2 x 0.75 mm² 24 AWG...18 AWG) flexible with cable end
    Carbon Footprint Of The Distribution Phase A40.4824334121180578, 0.5 kg CO2 eq.
    Carbon Footprint Of The Installation Phase A50 kg CO2 eq., 0.045666275445656254
    Carbon Footprint Of The Use Phase B2 B3 B4 B691 kg CO2 eq., 91.11300046745393
    Local Publishable Date2026-03-26
    Device TypePLC System - PLC CPU
    TraceabilityYes
    Average Life Duration20 year(s)
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label5
    Without Single Use PlasticYes
    Dangerous Goods CodeLITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
    Tier1
    Function OptionStandard
    Market SegmentationIndustrial
    Checksprogram memory on each power up
    Clock Drift12 min/year 0-55 °C6 s/month 25-25 °C
    Cycle Time6-90 ms
    Immunity To Microbreaks10 ms repeated 20 times
    Local Displaywith
    Operating Rate In Hz0.1 Hz at Ie)relay output10 Hz no load)relay output
    Power Consumption In Va4 VA without extension
    Product Or Component Typecompact smart relay
    Range Of ProductZelio Logic
    Software Versionv6.2.2
    Supply Voltage Limits20.4-28.8 V
    Tightening Torque0.5 N.m
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Data Sourceextrapolated product
    Nbr. Of Units In Pkg.1
    Warranty In Months18
    Functional Unit Quantity1
    Reference Lifetime In Y10
    Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
    Current State 1 Guaranteed>= 2 mA discrete input), >= 2 mA discrete input)>= 2 mA discrete input), >= 2 mA discrete input)
    Number Or Control Scheme Lines0-240 ladder, 0-500 FBD
    Switching Capacity In Ma>= 10 mA 12 V relay output), >= 10 mA 12 V relay output), >= 10 mA 12 V relay output)>= 10 mA 12 V relay output), >= 10 mA 12 V relay output), >= 10 mA 12 V relay output)
    Voltage State 1 Guaranteed>= 14 V discrete input, >= 14 V discrete input>= 14 V discrete input, >= 14 V discrete input
    Certificate AgencyC-tick, CSA, GL, UL, GOST
    Carbon Footprint Of The End Of Life Phase C1 To C40.6085547456974569, 0.6 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase A1 To A330 kg CO2 eq., 29.76911345876071
    Local Data StatusPublishable
    Return IndicatorY
    ServiceabilityYes
    Field Service DivisionIDIBS
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI0604006EN
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1846
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier Id1
    Function Option IdSTANDARD
    Market Segmentation IdINDUSTRIAL
    Product Kit IdentifierN
    Clockwith
    Contacts Type And CompositionNO relay output
    Electrical DurabilityAC-12 500000 cycles 230 V, 1.5 A relay output IEC 60947-5-1AC-15 500000 cycles 230 V, 0.9 A relay output IEC 60947-5-1DC-12 500000 cycles 24 V, 1.5 A relay output IEC 60947-5-1DC-13 500000 cycles 24 V, 0.6 A relay output IEC 60947-5-1
    Isolation Voltage1780 V
    Mechanical Durability10000000 cycles relay output
    Overvoltage CategoryIII conforming to IEC 60664-1
    Product AvailabilityStock - Normally stocked in distribution facility
    Protection Typeagainst inversion of terminals (control instructions not executed)
    ReturnabilityYes
    Supply Frequency50/60 Hz
    Sustainable PackagingYes
    Total Lifecycle Carbon Footprint122 kg CO2 eq.
    Database Version2023-02
    Disturbance Radiated/Conductedclass B EN 55022-11 group 1
    Customs Code8537109160
    Functional Unit DescriptionTo provide automated control of simple systems from 10 to 40 I/O for 10 years 100% of the time.
    Functional Unit UnitUnit
    Energy Consumption On Product Lifetime In Kwh245.28

    Environment Attributes Main

    Ambient Air Temperature For Operation-20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2, -20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2, -20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2, -20-55 °C IEC 60068-2-1 and IEC 60068-2-2, -20-55 °C IEC 60068-2-1 and IEC 60068-2-2-20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2, -20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2, -20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2
    Take BackNo
    China Rohs RegulationX
    Carbon Footprint122.01876835947581
    Environmental DisclosureENVPEP0604006EN
    Ip Degree Of ProtectionIP20 IEC 60529 terminal block)IP40 IEC 60529 front panel)
    Packaging Made With Recycled CardboardYes
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep CodeENVPEP0604006EN
    Pcr VersionPCR-4-ed4-EN-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Circularity ProfileENVEOLI0604006EN
    Eu Rohs DirectiveCompliant By Exemption
    Operating Altitude6561.68 ft (2000 m)
    Packaging Without Single Use PlasticYes
    Relative Humidity95-95 % without condensation or dripping water
    Pep Verification Date2024-11-01
    Psr VersionPSR-0005-ed3.1-EN-2023 12 08

    General Attributes

    Product Or Component Typecompact smart relay
    Range Of ProductZelio Logic

    ETIM

    ETIM 8EC001417
    ETIM 10EC001417
    ETIM 9EC001417

    Output Attributes

    Number Of Outputs4 relay
    Output Voltage Limits5...30 V DC relay output)24...250 V AC
    Output Thermal Current8 A for all 4 outputs relay output

    Contractual Warranty Attributes

    Warranty Period18 months
    Warranty18 months

    Input Attributes

    Discrete Input Frequency57...63 Hz, 47...53 Hz
    Discrete Input Current4.4 mA
    Discrete Input Voltage24 V AC
    Analogue Input Number0
    Discrete Input Number8
    Input Impedance4.6 kOhm discrete input

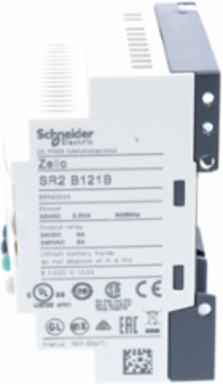

    Compact Smart Relay 24V AC, 12 I/O, 4 Outputs, IP20/IP40, 0.25 kg

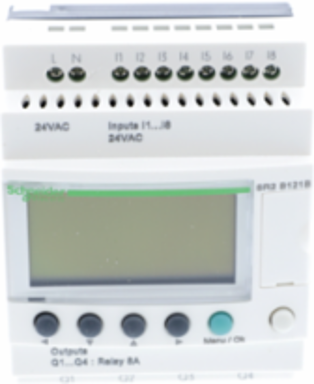

    Compact Smart Relay 24V AC, 12 I/O, 4 Outputs, IP20/IP40, 0.25 kg

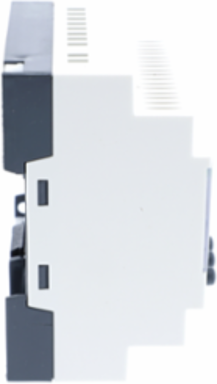

    Compact Smart Relay 24V AC, 12 I/O, 4 Outputs, IP20/IP40, 0.25 kg
    Compact Smart Relay 24V AC, 12 I/O, 4 Outputs, IP20/IP40, 0.25 kg

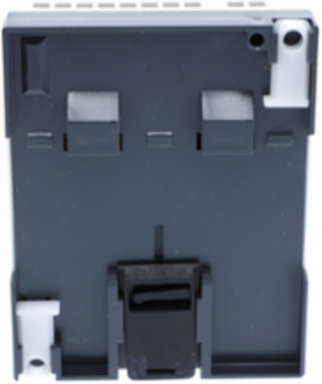

    Compact Smart Relay 24V AC, 12 I/O, 4 Outputs, IP20/IP40, 0.25 kg
