Harmony XB6 Illuminated Push Button, 12-24V, 16mm, Blue Light, 1NO + 1NC
Schneider Electric

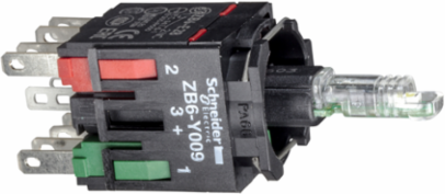

Schneider Electric ZB6ZB65B Harmony XB6 Illuminated Push Button, 12-24V, 16mm, Blue Light, 1NO + 1NC

  • MPN: ZB6ZB65B
  • PPN: SCH-ZB6ZB65B

CAD

$36.22

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

This Harmony ZB6ZB65B is a blue light block with body/fixing collar with integral LED 12V to 24V, 1 NO + 1 NC. It is part of the range Harmony XB6 diameter 16mm monolithic plastic push buttons, switches, and pilot lights.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Spain, France, Mexico

Physical Attributes

Cad Overall Depth
51 mm
Cad Overall Width
24 mm
Cad Overall Height18 mm
Light Source Colorblue

Important Information Attributes

Electrical Durability
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
Certificate Agency
CCC, CSA, UL, GOST
Carbon Footprint Of The Distribution Phase [A4]
0.0014384247, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]
0.001240137, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
0.8 kg CO2 eq., 0.7931782696
Local Publishable Date
2026-03-26
Stocking Flag
N
Weee Scope
In
Scope Perimeter
At least in Europe
End Of Life Doc Ref
ENVEOLI2403025EN
Rohs Eur Status
Compliant By Exemption
Rohs Eur Full Compliance Status
Compliant By Exemption
China Rohs Label
5
Without Single Use Plastic
No
Product Kit Identifier
N
Compatibility Code
ZB6
Contacts Material
silver alloy (Ag/Ni)
Contacts Usage
standard
Device Short Name
ZB6
Electrical Shock Protection Class
class II conforming to IEC 61140
Fixing Collar Material
plastic
Operating Force
1.6 N NO changing electrical state2.5 N NC changing electrical state
Positive Opening
with IEC 60947-5-1 appendix K
Product Or Component Type
complete body for illuminated push-button
Range Of Product
Harmony XB6
Resistance To Electrostatic Discharge
6 kV on contact (on metal parts) IEC 61000-2-68 kV in free air (in insulating parts) IEC 61000-2-6
Returnability
Yes
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Software Version
v5.9.4
Sustainable Packaging
No
Weee Label
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep Code
ENVPEP2403025EN
Pep Verification Date
2023-10-01
Psr Version
PSR-0005-ed2-2016 03 29
Data Source
extrapolated product
Functional-unit Quantity
1
Reference Lifetime In Y
10
Energy Model - Installation [A5]
Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
Energy Model - End Of Life [C1-c4]
Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
[Ie] Rated Operational Current
3 A 120 V, AC-15, B3001.5 A 240 V, AC-15, B3000.1 A 250 V, DC-13, R3000.22 A 125 V, DC-13, R300
[Uimp] Rated Impulse Withstand Voltage
4 kV IEC 60947-1
Connections - Terminals
Faston connector 2.8 x 0.5 mm
Nbr. Of Units In Pkg.
1
Take-back
No
Customs Code
8536509035
Vibration Resistance+/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Terminals Description Iso N°1(11-12)NC, (11-12)NC
Carbon Footprint Of The End-of-life Phase [C1 To C4]0 kg CO2 eq., 0.0199575342
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.2 kg CO2 eq., 0.2457328767
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Bulb Baseintegral LED
Contact Operationslow-break
Contacts Type And Composition1 NO + 1 NC
Current Consumption15 mA
Electrical Reliabilityλ = 10exp(-8) 5 V 1 mA with confidence level of 90 % IEC 60947-5-4
Electromagnetic Emissionclass B IEC 55011
Light SourceLED
Operating Travel1 mm NC changing electrical state)2 mm NO changing electrical state)4.3 mm total travel)
Product AvailabilityStock - Normally stocked in distribution facility
Protective TreatmentTC
Resistance To Electromagnetic Fields10 V/m IEC 61000-4-3
Resistance To Fast Transients2 kV IEC 61000-4-4
Sale Per Indivisible Quantity1
Signalling Typesteady
Supply Voltage Limits6-30 V AC/DC
Total Lifecycle Carbon Footprint1 kg CO2 eq.
Light Source Colorblue
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionHarmony XB6 illuminated rectangular green push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 16mm diameter panel. It has power consumption of 0.39375 W with use rate of 71% for a period of 10 years and product is adhering to standards IEC 60947-5-1.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; FR
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
Recyclability Potential In %17
[Ui] Rated Insulation Voltage250 V 3)IEC 60947-1
[Us] Rated Supply Voltage12...24 V AC/DC
Short-circuit Protection6 A cartridge fuse gG IEC 60947-5-1
Package Weight(Lbs)8.000 g
Warranty (In Months)18

Environment Attributes Main

Ambient Air Temperature For Operation
-25-70 °C, -25-70 °C
Take Back
No
China Rohs Regulation
X
Carbon Footprint
1.0615472422
Environmental Disclosure
ENVPEP2403025EN
Packaging Made With Recycled Cardboard
Yes
Pep Code
ENVPEP2403025EN
Pcr Version
PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep
Independent internal review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2403025EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticNo
Pep Verification Date2023-10-01
Psr VersionPSR-0005-ed2-2016 03 29

General Attributes

Product Or Component Type
complete body for illuminated push-button
Range Of ProductHarmony XB6

ETIM

ETIM 8
EC000204
ETIM 9EC000204

Surge Protection And Filtering Attributes

Surge Withstand
1 kV direct contact IEC 61000-4-52 kV in free air IEC 61000-4-5

Contractual Warranty Attributes

Warranty Period
18 months
Warranty18 months
