Harmony XB6 Illuminated Push Button, 12-24V, Green LED, 1NO + 1NC
Schneider Electric

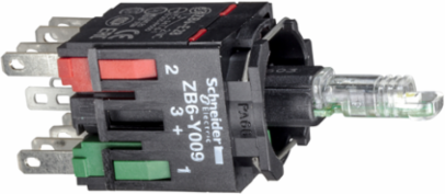

Schneider Electric ZB6ZB35B Harmony XB6 Illuminated Push Button, 12-24V, Green LED, 1NO + 1NC

  • MPN: ZB6ZB35B
  • PPN: SCH-ZB6ZB35B

CAD

$45.11

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

This Harmony ZB6ZB35B is a green light block with body/fixing collar and integral LED 12V to 24V, 1 NO + 1 NC. It is part of the range Harmony XB6 diameter 16mm monolithic plastic push buttons, switches, and pilot lights.

Documentation & Downloads

Specifications

Key Specifications

Range Of Product
Harmony XB6
Product Or Component Type
complete body for illuminated push-button
Connections - Terminals
Faston connector 2.8 x 0.5 mm
Sale Per Indivisible Quantity
1
Light Source Colour
green
[Us] Rated Supply Voltage
12...24 V AC/DC
Light SourceLED
Fixing Collar Materialplastic
Contacts Type And Composition1 NO + 1 NC
Contact Operationslow-break
Device Short NameZB6
Bulb Baseintegral LED

Complementary

Contacts Usage
standard
Short-Circuit Protection
6 A cartridge fuse gG IEC 60947-5-1
Operating Travel
1 mm NC changing electrical state) || 2 mm NO changing electrical state) || 4.3 mm total travel)
Positive Opening
with IEC 60947-5-1 appendix K
[Uimp] Rated Impulse Withstand Voltage
4 kV IEC 60947-1
Current Consumption
15 mA
Surge Withstand
1 kV direct contact IEC 61000-4-5 || 2 kV in free air IEC 61000-4-5
Signalling Type
steady
Supply Voltage Limits
6-30 V AC/DC
Cad Overall Width
24 mm
Terminals Description Iso N°1(11-12)NC
Operating Force1.6 N NO changing electrical state || 2.5 N NC changing electrical state
Contacts Materialsilver alloy (Ag/Ni)
Net Weight0.009 kg
Cad Overall Height18 mm
Electrical Durability1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
[Ui] Rated Insulation Voltage250 V 3)IEC 60947-1
[Ie] Rated Operational Current3 A 120 V, AC-15, B300 || 1.5 A 240 V, AC-15, B300 || 0.1 A 250 V, DC-13, R300 || 0.22 A 125 V, DC-13, R300
Electrical Reliabilityλ = 10exp(-8) 5 V 1 mA with confidence level of 90 % IEC 60947-5-4
Cad Overall Depth51 mm

Environment

Product Certifications
GOST || CSA || CCC || UL
Resistance To Electromagnetic Fields
10 V/m IEC 61000-4-3
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ambient Air Temperature For Storage
-40-70 °C
Electrical Shock Protection Class
class II IEC 61140
Resistance To Fast Transients
2 kV IEC 61000-4-4
Ambient Air Temperature For Operation-25-70 °C
StandardsJIS C 852 || IEC 60947-5-5 || UL 508 || IEC 60947-1 || JIS C 4520 || IEC 60947-5-1 || CSA C22.2 No 14
Vibration Resistance+/- 3 mm 2-500 Hz)IEC 60068-2-6 || 5 gn 2-500 Hz)IEC 60068-2-6
Resistance To Electrostatic Discharge6 kV on contact (on metal parts) IEC 61000-2-6 || 8 kV in free air (in insulating parts) IEC 61000-2-6
Protective TreatmentTC
Electromagnetic Emissionclass B IEC 55011

Contractual warranty

Warranty
18 months

Offer Sustainability

Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP1710010EN
Reach Regulation
Reference contains Substances of Very High Concern above the threshold
China Rohs Regulation
X
Eu Rohs Directive
Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1710010EN
