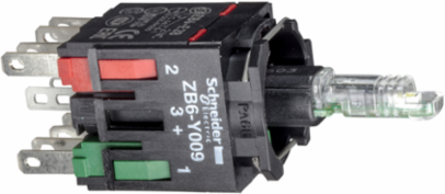

Schneider Electric ZB6ZB55B Harmony XB6 Illuminated Push Button, Yellow LED, 12-24V, 1NO+1NC, 16mm
- MPN: ZB6ZB55B
- PPN: SCH-ZB6ZB55B
CAD
$45.11
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Harmony ZB6ZB55B is a yellow light block with body/fixing collar with integral LED, 12V to 24V, 1 NO + 1 NC. It is part of the range Harmony XB6 diameter 16mm monolithic plastic push buttons, switches, and pilot lights.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, Spain, France, Mexico |
|---|
Physical Attributes
| Cad Overall Depth | 51 mm |
|---|---|
| Cad Overall Width | 24 mm |
| Cad Overall Height | 18 mm |
|---|---|
| Light Source Color | yellow |
Important Information Attributes
| Electrical Durability | 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C |
|---|---|
| Certificate Agency | CCC, GOST, UL, CSA |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Weee Product Category | 5 |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Bulb Base | integral LED |
| Contact Operation | slow-break |
| Contacts Type And Composition | 1 NO + 1 NC |
| Current Consumption | 15 mA |
| Electrical Reliability | λ = 10exp(-8) 5 V 1 mA with confidence level of 90 % IEC 60947-5-4 |
| Electromagnetic Emission | class B IEC 55011 |
| Light Source | LED |
| Operating Travel | 1 mm NC changing electrical state)2 mm NO changing electrical state)4.3 mm total travel) |
| Product Availability | Stock - Normally stocked in distribution facility |
| Protective Treatment | TC |
| Resistance To Electromagnetic Fields | 10 V/m IEC 61000-4-3 |
| Resistance To Fast Transients | 2 kV IEC 61000-4-4 |
| Sale Per Indivisible Quantity | 1 |
| Signalling Type | steady |
| Sustainable Packaging | No |
| Light Source Color | yellow |
| [Ui] Rated Insulation Voltage | 250 V 3)IEC 60947-1 |
| [Us] Rated Supply Voltage | 12...24 V AC/DC |
| Short-circuit Protection | 6 A cartridge fuse gG IEC 60947-5-1 |
| Package Weight(Lbs) | 12.0 g |
| Warranty (In Months) | 18 |
| Vibration Resistance | +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
|---|---|
| Terminals Description Iso N°1 | (11-12)NC, (11-12)NC |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | N |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | No |
| Product Kit Identifier | N |
| Compatibility Code | ZB6 |
| Contacts Material | silver alloy (Ag/Ni) |
| Contacts Usage | standard |
| Device Short Name | ZB6 |
| Electrical Shock Protection Class | class II conforming to IEC 61140 |
| Fixing Collar Material | plastic |
| Operating Force | 1.6 N NO changing electrical state2.5 N NC changing electrical state |
| Positive Opening | with IEC 60947-5-1 appendix K |
| Product Or Component Type | complete body for illuminated push-button |
| Range Of Product | Harmony XB6 |
| Resistance To Electrostatic Discharge | 6 kV on contact (on metal parts) IEC 61000-2-68 kV in free air (in insulating parts) IEC 61000-2-6 |
| Returnability | Yes |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Supply Voltage Limits | 6-30 V AC/DC |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| [Ie] Rated Operational Current | 3 A 120 V, AC-15, B3001.5 A 240 V, AC-15, B3000.1 A 250 V, DC-13, R3000.22 A 125 V, DC-13, R300 |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV IEC 60947-1 |
| Connections - Terminals | Faston connector 2.8 x 0.5 mm |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536509035 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -25-70 °C, -25-70 °C |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | No |
| Ambient Air Temperature For Storage | -40-70 °C, -40-70 °C |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Packaging Made With Recycled Cardboard | Yes |
General Attributes
| Product Or Component Type | complete body for illuminated push-button |
|---|
| Range Of Product | Harmony XB6 |
|---|
ETIM
| ETIM 8 | EC000204 |
|---|
| ETIM 9 | EC000204 |
|---|
Surge Protection And Filtering Attributes
| Surge Withstand | 1 kV direct contact IEC 61000-4-52 kV in free air IEC 61000-4-5 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
