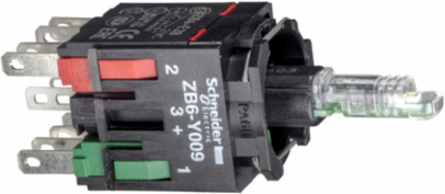

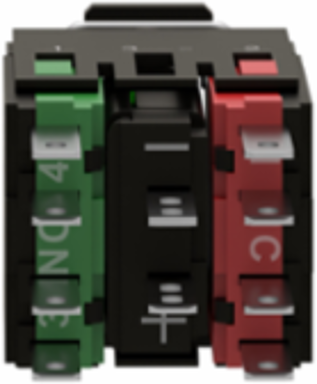

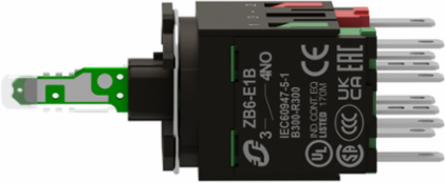

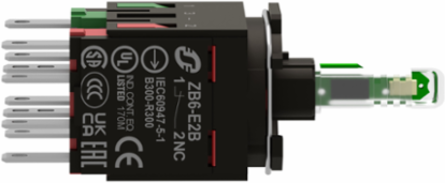

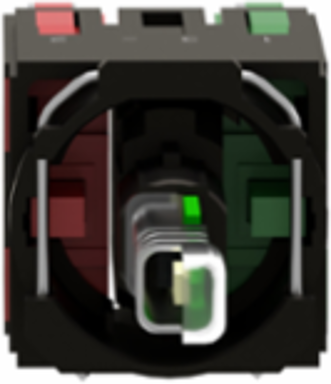

Schneider Electric ZB6ZB51B Harmony XB6 Illuminated Push Button, Yellow LED, 12-24 V, 16mm

MPN: ZB6ZB51B
PPN: SCH-ZB6ZB51B

$36.22

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This Harmony ZB6ZB51B is a yellow light block with body/fixing collar with integral LED 12V to 24V, 1 NO. It is part of the range Harmony XB6 diameter 16mm monolithic plastic push buttons, switches, and pilot lights.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, Spain, France, Mexico

Physical Attributes

Cad Overall Depth	51 mm
Cad Overall Width	24 mm

Cad Overall Height	18 mm
Light Source Color	yellow

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Electrical Durability	1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
Certificate Agency	CSA, GOST, CCC, UL
Carbon Footprint Of The Distribution Phase [A4]	0.001046127, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.0009019178, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	0.2 kg CO2 eq., 0.1982945674
Local Publishable Date	2026-01-12
Stocking Flag	N
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2403025EN
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	No
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Compatibility Code	ZB6
Contacts Material	silver alloy (Ag/Ni)
Contacts Usage	standard
Device Short Name	ZB6
Electrical Shock Protection Class	class II conforming to IEC 61140
Fixing Collar Material	plastic
Operating Force	1.6 N NO changing electrical state
Positive Opening	with IEC 60947-5-1 appendix K
Product Or Component Type	complete body for illuminated push-button
Range Of Product	Harmony XB6
Resistance To Electrostatic Discharge	6 kV on contact (on metal parts) IEC 61000-2-68 kV in free air (in insulating parts) IEC 61000-2-6
Returnability	Yes
Shock Resistance	30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Software Version	v5.9.4
Sustainable Packaging	No
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep Code	ENVPEP2403025EN
Pep Verification Date	2023-10-01
Psr Version	PSR-0005-ed2-2016 03 29
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	10
Energy Model - Installation [A5]	Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
Energy Model - End Of Life [C1-c4]	Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
[Ie] Rated Operational Current	3 A 120 V, AC-15, B3001.5 A 240 V, AC-15, B3000.1 A 250 V, DC-13, R3000.22 A 125 V, DC-13, R300
[Uimp] Rated Impulse Withstand Voltage	4 kV IEC 60947-1
Connections - Terminals	Faston connector 2.8 x 0.5 mm
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8536509031

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Vibration Resistance	+/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Terminals Description Iso N°1	(13-14)NO, (13-14)NO
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0 kg CO2 eq., 0.0145145704
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	0.2 kg CO2 eq., 0.1787148194
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Weee Product Category	5
Eoli Availability Display	Yes
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Bulb Base	integral LED
Contact Operation	slow-break
Contacts Type And Composition	1 NO
Current Consumption	15 mA
Electrical Reliability	λ = 10exp(-8) 5 V 1 mA with confidence level of 90 % IEC 60947-5-4
Electromagnetic Emission	class B IEC 55011
Light Source	LED
Operating Travel	2 mm NO changing electrical state)4.3 mm total travel)
Product Availability	Stock - Normally stocked in distribution facility
Protective Treatment	TC
Resistance To Electromagnetic Fields	10 V/m IEC 61000-4-3
Resistance To Fast Transients	2 kV IEC 61000-4-4
Sale Per Indivisible Quantity	1
Signalling Type	steady
Supply Voltage Limits	6-30 V AC/DC
Total Lifecycle Carbon Footprint	0.4 kg CO2 eq.
Light Source Color	yellow
Database Version	2022-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	Harmony XB6 illuminated rectangular green push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 16mm diameter panel. It has power consumption of 0.39375 W with use rate of 71% for a period of 10 years and product is adhering to standards IEC 60947-5-1.
Functional-unit Unit	Unit
Energy Model - Manufacturing [A1-a3]	Energy model used: Electricity Mix; Production mix; Low voltage; FR
Energy Model - Use [B6]	Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
Recyclability Potential In %	17
[Ui] Rated Insulation Voltage	250 V 3)IEC 60947-1
[Us] Rated Supply Voltage	12...24 V AC/DC
Short-circuit Protection	6 A cartridge fuse gG IEC 60947-5-1
Package Weight(Lbs)	8.000 g
Warranty (In Months)	18

Environment Attributes Main

Ambient Air Temperature For Operation	-25-70 °C, -25-70 °C
Take Back	No
China Rohs Regulation	X
Carbon Footprint	0.393472002
Environmental Disclosure	ENVPEP2403025EN
Packaging Made With Recycled Cardboard	Yes
Pep Code	ENVPEP2403025EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI2403025EN
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	No
Pep Verification Date	2023-10-01
Psr Version	PSR-0005-ed2-2016 03 29
