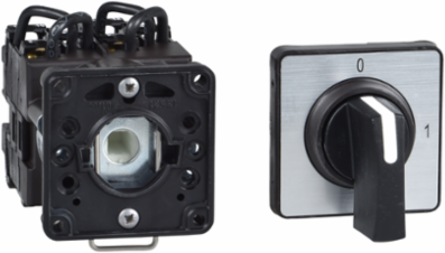

Schneider Electric K2B1002HCH Harmony K Cam Switch, Ø 22mm, 2 Poles, 20A, 90° Rotation, IP65
- MPN: K2B1002HCH
- PPN: SCH-K2B1002HCH
CAD
$61.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The Schneider Electric K2B1002HCH Harmony K Cam Switch is engineered for robust control in demanding environments, featuring a durable design that ensures reliable operation. This switch, with a diameter of 22mm, is rated for 20A and accommodates two poles, making it highly versatile for various automation and switching applications. Designed for 90° rotation and equipped with an IP65 rating, it provides excellent protection against dust and moisture, ensuring consistent performance whether in industrial settings or other challenging conditions. With its thoughtful construction, this cam switch stands out as a dependable choice for enhancing operational efficiency.
Documentation & Downloads
Specifications
Additional
- Amperage
- 20 A cartridge fuse gG
- Rated Operational Power
- 1300 W AC-3 230 V 1 phase, 14000 W AC-21 400 V 3 phase, 17000 W AC-21 500-660 V 3 phase
- Maximum Operating Rate
- 2.5 cyc/mn AC-21, AC-23, AC-3; 8.333 cyc/mn AC-15
- Contact Operation
- slow-break
- Diameter
- 22 mm
- Cam Switch Head Size
- 45 x 45 mm
- Poles
- 2P
- Conventional Enclosed Thermal Current
- 16 A
- Mechanical Durability
- 1,000,000 cycles
- Dimensions (W x H x D)
- 45 mm x 50 mm x 49 mm
- IP Degree of Protection
- IP65 IEC 60529
- Product Certifications
- CSA, UL, CCC
- Operating Temperature Range
- -25 to 55 °C
- Shock Resistance
- 30 gn IEC 68-2-27
- Overvoltage Category
- Class II IEC 536, Class II NF C 20-030
- Environmental Disclosure
- ENVPEP071103EN_V1
- Mounting Location
- front
- Switching Positions
- right: 0° - 90°
- Type of Operator
- black handle 35 mm
- Fixing Mode
- Ø 22 mm hole
Rated Operational Current AC8 A to 14.6 A depending on voltage and type, detailed per IEC 60947-3
Short-Circuit Current10000 A
Switching Angle90°
Positive OpeningYes
Mounting Hole SizeØ 22 mm
Handle Size35 mm black handle
Conventional Free Air Thermal Current20 A
Electrical Durability200,000 cycles AC-23 and AC-3, 600,000 cycles AC-15 and AC-21
Electrical Connectioncaptive screw clamp terminals flexible 2 x 1.5 mm² and solid 1 x 2.5 mm²
Net Weight0.15 kg
StandardsIEC 60947-3, IEC 60947-5-1, CENELEC EN 50013, GB/T 14048.3, GB/T 14048.5
Protective TreatmentTC
Storage Temperature Range-40 to 70 °C
Vibration Resistance5 gn, 10-150 Hz IEC 68-2-6
Sustainability ComplianceGreen Premium, REACh SVHC free, EU RoHS compliant, Toxic heavy metal free, Mercury free, China RoHS compliant
Range of ProductHarmony K
Off Positionwith
Cam Switch Head Typewith front plate 45 x 45 mm
Component NameK2
