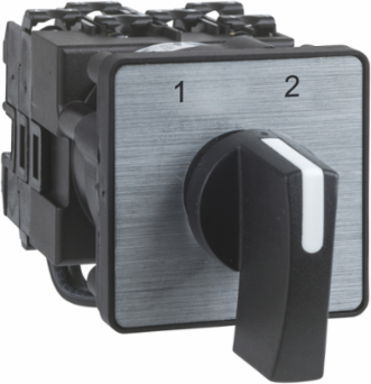

Schneider Electric K10B011UCH Cam changeover switch, Harmony K, front mounting Ø16 or 22mm, plastic, 1 pole, 2 positions, 30°, 10A, 30x30mm, marked 1/2

MPN: K10B011UCH
PPN: SCH-K10B011UCH

Spec sheet

Compare

Loading compare button...

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$64.23/ EA

Qty:

Loading add to cart quantity...

Description

Cam changeover switch, Harmony K, front mounting Ø16 or 22mm, plastic, 1 pole, 2 positions, 30°, 10A, 30x30mm, marked 1/2

Specifications

Environment

Ambient Air Temperature For Operation: -20-55 °C

Standards: CENELEC EN 50013 || EN/IEC 60947-3 || EN/IEC 60947-5-1

Electrical Shock Protection Class: class II IEC 60536

Product CertificationscULus

Ambient Air Temperature For Storage-40-70 °C

Protective TreatmentTC

Contractual warranty

Warranty: 18 months

Offer Sustainability

Rohs Exemption Information: Yes

Toxic Heavy Metal Free: Yes

Reach Free Of Svhc: Yes

China Rohs Regulation: X

Mercury FreeYes

Reach RegulationFree of Substances of Very High Concern above the threshold

WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)

Complementary

Short-Circuit Protection: 10 A cartridge fuse gG

[Uimp] Rated Impulse Withstand Voltage: 4 kV IEC 60947-1

Switching Angle: 60 °

Electrical Durability: 100000000 cycles

Contact Operation: slow-break

Rated Power In Hp: 1 hp 220/240 V AC, 3 phases || 0.33 hp 110/120 V AC, 1 phase || 0.75 hp 110/120 V AC, 3 phases || 0.75 hp 220/240 V AC, 1 phase

Cad Overall Width: 30 mm

Rated Operational Power In W: 1800 W AC-23A, 220/240 V 3 phases || 370 W AC-23A, 110/120 V 1 phase || 750 W AC-23A, 220/240 V 1 phase

Net Weight0.035 kg

Cad Overall Height30 mm

Electrical Connectioncaptive screw clamp terminals 2 x 1.5 mm²

[Ui] Rated Insulation Voltage440 V 3)IEC 60947-1

Mechanical Durability1000000 cycles

[Ie] Rated Operational Current Dc10 A 24 V resistive || 0.3 A 220 V resistive || 0.7 A 110 V resistive

Cad Overall Depth76 mm

[Ie] Rated Operational Current Ac10 A 400 V AC-1 || 10 A 400 V AC-21A || 3 A 240 V AC-15 || 6 A 120 V AC-15

Specifications

Range Of Product: Harmony K

Presentation Of Legend: with metallic, 1 - 2 black

Product Or Component Type: complete cam switch

Cam Switch Function: changeover switch

Type Of Operator: black handle

Cam Switch Head Type: with front plate 30 x 30 mm

Poles Description: 1P

Return: without

Fixing ModeØ 16 or 22 mm hole

Ip Degree Of Protectioncontact block: IP20 || operating head: IP65 conforming to IEC 60529

[Ith] Conventional Free Air Thermal Current10 A

Component NameK10

Switching Positionsleft: 330° || right: 30°

Product Mountingfront mounting

Rotary Handle Padlockingwithout

Off Positionwithout Off position
