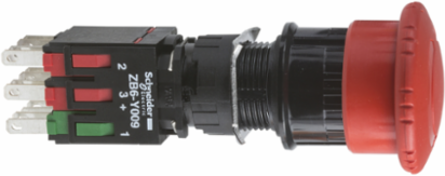

Harmony XB6 16mm Red Emergency Stop Push Button, IP65, 1NO + 2NC
Schneider Electric

Schneider Electric XB6AS8349B Harmony XB6 16mm Red Emergency Stop Push Button, IP65, 1NO + 2NC

  • MPN: XB6AS8349B
  • PPN: SCH-XB6AS8349B
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $140.78

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    This Harmony XB6 red, complete emergency stop push button is part of the range diameter 16mm plastic, Harmony XB6 modular. It has a circular head shape, with a turn to release mushroom, diameter 30mm, with trigger action and mechanical latching. It features 1 NO + 2 NC slow break contacts and faston connection type. Its reduced diameter 16mm makes it suitable to applications where less space is available for mounting, like small machines and control panels. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil, France, Mexico
    Depth77 mm

    Important Information Attributes

    Persona Type Ids
    BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Electrical Durability
    1000000 cycles, AC-15 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
    Operating Travel
    1 mm NC changing electrical state), 2 mm NO changing electrical state), 3.5 mm total travel)
    Vibration Resistance
    +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6+/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
    [Ie] Rated Operational Current
    3 A 120 V, AC-15, B300 IEC 60947-5-1, 1.5 A 240 V, AC-15, B300 IEC 60947-5-1, 0.1 A 250 V, DC-13, R300 IEC 60947-5-1, 0.22 A 125 V, DC-13, R300 IEC 60947-5-1
    Carbon Footprint Of The Distribution Phase [A4]
    0.0042238, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]
    0.011321, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
    2 kg CO2 eq., 1.8277
    Local Publishable Date
    2026-03-26
    Future Imap
    36.25
    Stocking Flag
    N
    Manufacturing Carbon Footprint
    0.2628
    Weee Scope
    In
    Scope Perimeter
    At least in Europe
    End Of Life Doc Ref
    ENVEOLI2312039EN
    Reach Full Compliance Status Id
    NOT_CONTAINING_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    1930
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    Yes
    Product Contributes To Saved And Avoided Emissions
    No
    Tier
    1
    Function Option
    Standard
    Bezel Material
    plastic
    Contact Operation
    slow-break
    Contacts Type And Composition
    1 NO + 2 NC
    Device Short Name
    XB6
    Electrical Shock Protection Class
    class II conforming to IEC 61140
    Mounting Diameter
    16 mm
    Operator Profile
    red mushroom Ø 30 mm, unmarked
    Product Availability
    Stock - Normally stocked in distribution facility
    Protective Treatment
    TC
    Reset
    turn to release
    Sale Per Indivisible Quantity
    1
    Software Version
    v5.9.4
    Total Lifecycle Carbon Footprint
    2 kg CO2 eq.
    Type Of Operator
    trigger action and mechanical latching
    Pep Code
    ENVPEP2312039EN
    Pep Verification Date
    2023-12-07
    Psr Version
    PSR-0005-ed2-2016 03 29
    Data Source
    referent product
    Reference Lifetime, In Y
    10
    Energy Model - Installation [A5]
    Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US
    Energy Model - End Of Life [C1-c4]
    Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US
    Width Nominal
    30 mm
    [Uimp] Rated Impulse Withstand Voltage
    4 kV IEC 60947-1
    Short-circuit Protection
    6 A cartridge fuse gG
    Package Weight(Lbs)
    38.300 g
    Warranty (In Months)
    18
    Climate Change - Total ( Kg Co2 Eq.) Manufacturing [A1-a3]
    0.2628
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]
    3.4288
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4]
    1.4515
    Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]
    20.776
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]
    3.4288
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) End Of Life [C1-c4]
    1.4515
    Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
    52.726
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
    8.1487
    Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
    44.577
    Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
    8.1487
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Operating Force3.5 N NO changing electrical state, 4.5 N NC changing electrical state
    Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    Certificate AgencyCSA, CCC, GOST, UL
    Terminals Description Iso N°1(31-32)NC, (13-14)NO, (21-22)NC, (31-32)NC, (13-14)NO, (21-22)NC
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0.1 kg CO2 eq., 0.057296
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.3 kg CO2 eq., 0.2628
    Local Data StatusPublishable
    Return IndicatorY
    Future Msrp46.94
    Stock Policy2
    Use Carbon Footprint1.8277
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
    Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant
    Rohs Eur Full Compliance StatusCompliant
    China Rohs Label1
    Without Single Use PlasticYes
    Tier Id1
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Compatibility CodeXB6
    Contacts Materialsilver alloy (Ag/Ni)
    Contacts Usagestandard
    Electrical Reliabilityλ < 10exp(-8) 5 V, 1 mA with confidence level of 90 % IEC 60947-5-4
    Mechanical Durability100000 cycles
    Operating Positionany position
    Positive Openingwith IEC 60947-5-1 appendix K
    Product Or Component Typecomplete emergency stop push-button
    Range Of ProductHarmony XB6
    ReturnabilityYes
    Shape Of Signaling Unit Headround
    Sustainable PackagingYes
    Type Of Keylockkey 200
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Database Version2022-01
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionThis Harmony XB6 red, complete emergency stop push button is part of the range diameter 16mm plastic, Harmony XB6 modular. It has a circular head shape, with a turn to release mushroom, diameter 30mm, with trigger action and mechanical latching. It features 1 NO + 2 NC slow break contacts and faston connection type. Its reduced diameter 16mm makes it suitable to applications where less space is available for mounting, like small machines and control panels. It has energy consumption of 0.0675 W at use rate of 71% during 10 years. Product meets the international standards such as EN/IEC 60947-1 and EN/IEC 60204 -1.
    Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
    Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US
    Height Nominal30 mm
    [Ui] Rated Insulation Voltage250 V 3)IEC 60947-1
    Connections - TerminalsFaston connectors 2.8 x 0.5 mm
    Nbr. Of Units In Pkg.1
    Take-backNo
    Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6]1.8254
    Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6]1.8277
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]44.577
    Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3]85.221
    Ionizing Radiation, Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]2.4237
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]44.577
    Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]3.5347
    Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4]1.4517
    Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]2.9902
    Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4]1.4515

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -25-70 °C, -25-70 °C
    Nema Degree Of Protection
    NEMA 4X CSA C22.2 No 94, NEMA 4 CSA C22.2 No 94NEMA 13 UL 50, NEMA 4 UL 50, NEMA 4X UL 50, NEMA 13 CSA C22.2 No 94
    Reach Free Shvc
    Yes
    China Rohs Regulation
    X
    Mercury Free
    Yes
    Circularity Profile
    ENVEOLI2312039EN
    Eu Rohs Directive
    Compliant
    Packaging Made With Recycled Cardboard
    Yes
    Reach Free Of Svhc
    Yes
    Pep Code
    ENVPEP2312039EN
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent internal review
    Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
    Take BackNo
    Recycled Metal Content At Cr Level0 %
    Toxic Heavy Metal FreeYes
    Carbon Footprint2.1633408
    Environmental DisclosureENVPEP2312039EN
    Ip Degree Of ProtectionIP65 IEC 60529
    Packaging Without Single Use PlasticYes
    Reach RegulationFree of Substances of Very High Concern above the threshold
    Pep Verification Date2023-12-07
    Psr VersionPSR-0005-ed2-2016 03 29

    General Attributes

    Product Or Component Type
    complete emergency stop push-button
    Range Of ProductHarmony XB6

    ETIM

    ETIM 8
    EC002034
    ETIM 9EC002034

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months
