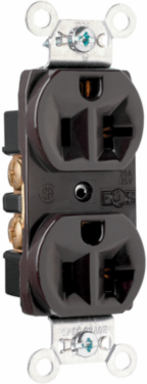

Pass & Seymour CRB5362 20A 125V Commercial Duplex Receptacle, Back/Side Wire, Brown, 2.635 Inch Height
Pass & Seymour CRB5362 20A 125V Commercial Duplex Receptacle, Back/Side Wire, Brown, 2.635 Inch Height
- MPN: CRB5362
- UPC: 785007210217
- PPN: P-S-CRB5362
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$9.66/ EA
Description
Construction Spec Grade Duplex Receptacle Back and Side Wire 20A 125V
Features
- Corrosion-resistant, plated steel strap locked in to face and back body to resist pulling away from face/body assembly.
- Triple-wipe brass contacts ensure lasting, positive contact with plug blades.
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
- Impact-resistant nylon face and thermoplastic back body.
- 8 hole internal screw-pressure-plate back wire terminals accept #10 - #14 AWG solid or stranded copper or copper-clad conductors.
- Terminal compartments isolated from each other for positive conductor containment.
- Auto-ground clip assures positive ground.
- For covering patents, see www.legrand.us/patents.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
- Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Specifications
Specifications
- Depth
- 0.78 in
- Height
- 2.635 in
- Finish
- Matte
- Product Line
- Pass & Seymour
ColorBrown
Width1.322 in
Country of OriginMexico
