Harmony XAC Emergency Stop Push Button, 3NO, 400V AC, 3A
Schneider Electric

Schneider Electric XENT1991 Harmony XAC Emergency Stop Push Button, 3NO, 400V AC, 3A

  • MPN: XENT1991
  • PPN: SCH-XENT1991

CAD

$107.29

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

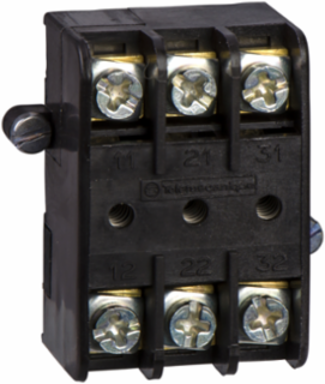

This Harmony XENT1991 is a pendant station contact 240V AC 3A. It is part of the range Harmony XAC pendant control stations for diameter 22mm plastic signaling units.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Brazil, France

Complementary Attributes

Rated Operational Power In W
3000 W AC-23B 400 V

Important Information Attributes

Persona Type Ids
BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id
COMMERCIAL, INDUSTRIAL
Electrical Circuit Type
control circuit, power circuit
Connections - Terminals
screw clamp terminals, 1 x 2.5 mm² with or without cable end, screw clamp terminals, 2 x 1.5 mm² with or without cable end
Carbon Footprint Of The Distribution Phase [A4]
0.029661298511289482, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]
0.00395928820351422, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
kg CO2 eq., 0
Local Publishable Date
2026-02-26
Stocking Flag
N
Weee Scope
In
Scope Perimeter
At least in Europe
Reach Full Compliance Status
Free of Substances of Very High Concern above the threshold
Reach Compliance Directive
Free of Substances of Very High Concern above the threshold
Rohs Eur Status
Compliant
Rohs Eur Full Compliance Status
Compliant
China Rohs Label
1
Without Single Use Plastic
No
Tier Id
2
Function Option Id
STANDARD
Product Kit Identifier
N
Contact Block Application
emergency stop push-button
Contact Operation
slow-break
Mechanical Durability
3000000 cycles
Product Availability
Stock - Normally stocked in distribution facility
Range Of Product
Harmony XAC
Shock Resistance
70 gn IEC 60068-2-27
Sustainable Packaging
No
Type Of Operator
spring return
Weee Label
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version
2024-01
Pcr Version
PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep
Independent internal review
Functional-unit Description
This contact block allows fast and easy replacement and configuration of your push buttons and selector switches. It is easily installed and replaced on XACM and XACB pendant control stations and connects to control circuits with simple screw-clamp connections. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index.
Functional-unit Unit
unit
Energy Model - Manufacturing [A1-a3]
Electricity Mix; High voltage; 2020; Czech Republic, CZ
Energy Model - Use [B6]
Electricity Mix; Low voltage; 2020; Global, GLO
Recyclability Potential In %
46
[Ui] Rated Insulation Voltage
400 V 3)IEC 60947-1
Short-circuit Protection
6 A fuse protection cartridge aM
Package Weight(Lbs)
42.0 g
Warranty (In Months)
18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Certificate AgencyIEC 60947-5-1, UL 508, CSA C22.2 No 14
Terminals Description Iso N°1(31-32)NC, (11-12)NC, (21-22)NC, (31-32)NC, (11-12)NC, (21-22)NC
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.1 kg CO2 eq., 0.08017231832907427
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.3 kg CO2 eq., 0.28216465873975644
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Component NameXENT
Contact Block Typesingle
Contacts Type And Composition3 NC
Overvoltage Categoryclass II conforming to IEC 61140
Product Or Component Typecontact block
ReturnabilityYes
Software Versionv6.3.0.1-4
Total Lifecycle Carbon Footprint0.4 kg CO2 eq.
Vibration Resistance15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Pep CodeENVPEP2506031EN
Pep Verification Date2025-06-30
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
[Ithe] Conventional Enclosed Thermal Current10 A
[Uimp] Rated Impulse Withstand Voltage4 kV IEC 60947-1
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536509065

Environment Attributes Main

Ambient Air Temperature For Operation
-25-70 °C, -25-70 °C
Take Back
No
Recycled Metal Content At Cr Level
0 %
Toxic Heavy Metal Free
Yes
Carbon Footprint
0.3959575637836344
Eu Rohs Directive
Compliant
Packaging Without Single Use Plastic
No
Reach Free Of Svhc
Yes
Pep Code
ENVPEP2506031EN
Pcr Version
PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep
Independent internal review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Environmental DisclosureENVPEP2506031EN
Packaging Made With Recycled CardboardYes
Product CompatibilityXACD
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2025-06-30
Psr VersionPSR-0005-ed3.1-EN-2023 12 08

General Attributes

Product Or Component Type
contact block
Range Of ProductHarmony XAC

ETIM

ETIM 8
EC000041
ETIM 9EC000041

Contractual Warranty Attributes

Warranty Period
18 months
Warranty18 months
