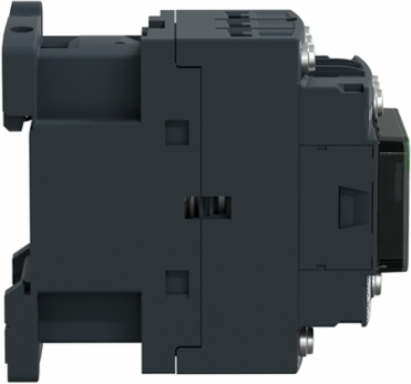

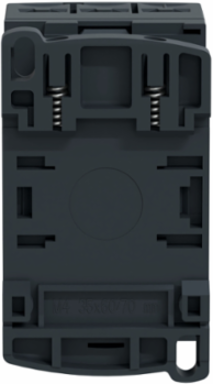

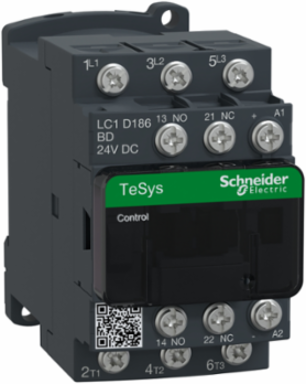

Schneider Electric LC1D186BD IEC contactor, TeSys Deca, nonreversing, 18A, 10HP at 480VAC, 3 phase, 3 pole, 3 NO, 24VDC coil, open style
Schneider Electric LC1D186BD IEC contactor, TeSys Deca, nonreversing, 18A, 10HP at 480VAC, 3 phase, 3 pole, 3 NO, 24VDC coil, open style
- MPN: LC1D186BD
- PPN: SCH-LC1D186BD
- UNSPSC: 39121529
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$266.23/ EA
Description
IEC contactor, TeSys Deca, nonreversing, 18A, 10HP at 480VAC, 3 phase, 3 pole, 3 NO, 24VDC coil, open style
Features
- New modern look & feel of all machines
- Designed to meet the requirements of industrial and HVAC applications
- Easier to install and operate with multi-standard screws
- With IEC60335-1 compliance, improved fire resistance, and dustproof auxiliaries
- Digital customer experience for technical documents
- Maintenance guide via EcoStruxureTM Facility Expect
Specifications
Conformance Attributes
- Product Certifications
- UL, CCC, CSA, Marine, UKCA, EAC, CB Scheme
StandardsCSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 60947-4-1, IEC 60335-1:Clause 30.2, IEC 60335-2-40:Annex JJ, UL 60335-2-40:Annex JJ, CSA C22.2 No 60947-4-1
Complementary Attributes
- Control Circuit Voltage Limits
- 0.1...0.25 Uc (-40-70 °C):drop-out DC, 0.7...1.25 Uc (-40-60 °C):operational DC, 1...1.25 Uc (60-70 °C):operational DC
- Maximum Horse Power Rating
- 5 hp at 230/240 V AC 50/60 Hz for 3 phase motors, 1 hp at 115 V AC 50/60 Hz for 1 phase motors, 3 hp at 230/240 V AC 50/60 Hz for 1 phase motors, 5 hp at 200/208 V AC 50/60 Hz for 3 phase motors, 10 hp at 460/480 V AC 50/60 Hz for 3 phase motors, 15 hp at 575/600 V AC 50/60 Hz for 3 phase motors
- Maximum Motor Phase Current
- 18 A
- Minimum Switching Current
- 5 mA for signalling circuit
- Rated Breaking Capacity
- 300 A at 440 V for power circuit conforming to IEC 60947
IRMS Rated Making Capacity140 A AC for signalling circuit conforming to IEC 60947-5-1, 250 A DC for signalling circuit conforming to IEC 60947-5-1, 300 A at 440 V for power circuit conforming to IEC 60947
Control Circuit TypeDC standard
Maximum Operating Rate3600 cyc/h at 60 °C
Minimum Switching Voltage17 V for signalling circuit
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Associated Fuse Rating
- 10 A gG for signalling circuit conforming to IEC 60947-5-1, 50 A gG at <= 690 V coordination type 1 for power circuit, 35 A gG at <= 690 V coordination type 2 for power circuit
- Electrical Durability
- 1.65 Mcycles 18 A AC-3 <= 440 V, 1 Mcycles 32 A AC-1 <= 440 V, 1.65 Mcycles 25 A AC-3e <= 440 V
- Mechanical Robustness
- vibrations contactor open 2 Gn, 5...300 Hz), vibrations contactor closed 4 Gn, 5...300 Hz), shocks contactor open 10 Gn for 11 ms), shocks contactor closed 15 Gn for 11 ms)
- Mounting Support
- plate, rail
- Operating Time
- 63 ±15 % ms closing, 20 ±20 % ms opening
- Safety Reliability Level
- B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1, B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
- Utilisation Category
- AC-1, AC-4, AC-3, AC-3e
- Ie Rated Operational Current2
- 18 A (at <60 °C) at <= 440 V AC AC-3 for power circuit, 32 A (at <60 °C) at <= 440 V AC AC-1 for power circuit, 18 A (at <60 °C) at <= 440 V AC AC-3e for power circuit
- Uc Control Circuit Voltage2
- 24 V, 24 V DC
- Ui Rated Insulation Voltage2
- power circuit 690 V IEC 60947-4-1, power circuit 600 V CSA, power circuit 600 V UL, signalling circuit 690 V IEC 60947-1
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 1.3125800413083537, 1 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 3 kg CO2 eq., 2.7103153960992956
- Connections Terminals
- lugs-ring terminals, control circuit: lugs-ring terminals - external diameter: 8 mm, power circuit: lugs-ring terminals - external diameter: 8 mm
- Icw Rated Short Time Withstand Current5
- 145 A 40 °C - 10 s for power circuit, 240 A 40 °C - 1 s for power circuit, 40 A 40 °C - 10 min for power circuit, 84 A 40 °C - 1 min for power circuit, 100 A - 1 s for signalling circuit, 120 A - 500 ms for signalling circuit, 140 A - 100 ms for signalling circuit
- Ith Conventional Free Air Thermal Current5
- 10 A (at 60 °C) for signalling circuit, 32 A (at 60 °C) for power circuit
- Ui Rated Insulation Voltage5
- power circuit 690 V IEC 60947-4-1, power circuit 600 V CSA, power circuit 600 V UL, signalling circuit 690 V IEC 60947-1, signalling circuit 600 V CSA, signalling circuit 600 V UL
- Local Publishable Date
- 2025-05-31
- Serviceability
- No
- Field Service Division
- PPIBS
- Legacy WEEE Scope
- In
- EOLI Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant with Exemptions
- ROHS EUR Full Compliance Status Id
- COMPLIANT_WITH_EXEMPTIONS
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- Yes
- Return Indicator
- Y
- Function Option
- Standard
- Coil Technology
- with integral suppression device
- Contact Compatibility
- M4
- Fire Resistance
- 850 °C IEC 60695-2-1
- Hold In Power Consumption In W
- 5.4-5.4 W 20 °C
- Mechanical Durability
- 30 Mcycles
- Package Weight Lbs
- 540.0 g
- Poles Description
- 3P
- Product Or Component Type
- contactor
- Range Of Product
- TeSys Deca
- Signalling Circuit Frequency
- 25...400 Hz
- Time Constant
- 28 ms
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Medium Desc
- IEC contactor, TeSys Deca, nonreversing, 18A, 10HP at 480VAC, 3 phase, 3 pole, 3 NO, 24VDC coil, open style
- Product Kit Identifier
- N
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional Unit Description
- Switch on and off during 20 years electrical power supply of a downstream installation with an electrical and/or mechanical control.The functional unit is characterized by a type 3NO, a control circuit voltage 24V DC,a power circuit voltage 690V and a rated operational current 9A.
- Energy Model Manufacturing A1 A3 2
- Electricity Mix; Production mix; Low voltage; FR
- Energy Model Use B6 2
- Electricity Mix; Production mix; Low voltage; FR
- Global Commercial Status
- Commercialised
- Uimp Rated Impulse Withstand Voltage5
- 6 kV IEC 60947
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Contactor Applicationmotor control, resistive load
Insulation Resistance> 10 MOhm for signalling circuit, > 10 MOhm for signalling circuit, > 10 MOhm for signalling circuit, > 10 MOhm for signalling circuit
Motor Power KW7.5 kW at 380...400 V AC 50/60 Hz (AC-3e), 9 kW at 415...440 V AC 50/60 Hz (AC-3e), 10 kW at 500 V AC 50/60 Hz (AC-3e), 10 kW at 660...690 V AC 50/60 Hz (AC-3e), 4 kW at 220...230 V AC 50/60 Hz (AC-3), 7.5 kW at 380...400 V AC 50/60 Hz (AC-3), 9 kW at 415...440 V AC 50/60 Hz (AC-3), 10 kW at 500 V AC 50/60 Hz (AC-3), 10 kW at 660...690 V AC 50/60 Hz (AC-3), 4 kW at 400 V AC 50/60 Hz (AC-4), 4 kW at 220...230 V AC 50/60 Hz (AC-3e)
Non Overlap Time1.5 ms on de-energisation between NC and NO contact, 1.5 ms on energisation between NC and NO contact
Power Dissipation Per Pole2.5 W AC-1, 0.8 W AC-3, 0.8 W AC-3e
Tightening Torquepower circuit 1.7 N.m lugs-ring terminals Philips No 2 M3.5, power circuit 1.7 N.m lugs-ring terminals pozidriv No 2 M3.5, control circuit 1.7 N.m lugs-ring terminals flat Ø 6 mm M3.5, control circuit 1.7 N.m lugs-ring terminals Philips No 2 M3.5, power circuit 1.7 N.m lugs-ring terminals flat Ø 8 mm M3.5, control circuit 1.7 N.m lugs-ring terminals pozidriv No 2 M3.5
Icw Rated Short Time Withstand Current2145 A 40 °C - 10 s for power circuit, 240 A 40 °C - 1 s for power circuit, 40 A 40 °C - 10 min for power circuit, 84 A 40 °C - 1 min for power circuit, 100 A - 1 s for signalling circuit, 120 A - 500 ms for signalling circuit, 140 A - 100 ms for signalling circuit
Ith Conventional Free Air Thermal Current210 A (at 60 °C) for signalling circuit, 32 A (at 60 °C) for power circuit
Ue Rated Operational Voltage2power circuit <= 690 V AC 25...400 Hz, power circuit <= 300 V DC
Carbon Footprint Of The Distribution Phase A40.1497941374842545, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50 kg CO2 eq., 0.041480539446657784
Carbon Footprint Of The Use Phase B2 B3 B4 B635 kg CO2 eq., 35.11783783783784
Connections Terminals3control circuit: lugs-ring terminals - external diameter: 8 mm, power circuit: lugs-ring terminals - external diameter: 8 mm
Ie Rated Operational Current518 A (at <60 °C) at <= 440 V AC AC-3 for power circuit, 32 A (at <60 °C) at <= 440 V AC AC-1 for power circuit, 18 A (at <60 °C) at <= 440 V AC AC-3e for power circuit
Ue Rated Operational Voltage5power circuit <= 690 V AC 25...400 Hz, power circuit <= 300 V DC
Local Data StatusPublishable
Device TypeLV equipment - LV contactor
TraceabilityNo
Average Life Duration20 year(s)
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1102030EN
Reach Full Compliance Status IdCONTAINS_SVHC
ROHS EUR In ScopeYes
ROHS EUR Full Compliance StatusCompliant with Exemptions
China ROHS In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Average Impedance2.5 mOhm - Ith 32 A 50 Hz for power circuit
Compatibility CodeLC1D
Device Short NameLC1D
Flame RetardanceV1 conforming to UL 94
Inrush Power In W5.4-5.4 W 20 °C)
Overvoltage CategoryIII
Pole Contact Composition3 NO
Product AvailabilityStock - Normally stocked in distribution facility
Protective TreatmentTHIEC 60068-2-30
ReturnabilityYes
Sustainable PackagingYes
Total Lifecycle Carbon Footprint39 kg CO2 eq.
Uimp Rated Impulse Withstand Voltage26 kV IEC 60947
Stocking FlagN
Pep CodeENVPEP110230EN
Pep Verification Date2025-08-05
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional Unit Unitunit
Energy Model Installation A5 2Electricity Mix; Production mix; Low voltage; FR
Energy Model End Of Life C1 C4 2Electricity Mix; Production mix; Low voltage; FR
Uc Control Circuit Voltage524 V DC
Environment Attributes Main
- Take Back
- Nej, No
- Climatic Withstand
- IACS E10 exposure to damp heat, IEC 60947-1 Annex Q category D exposure to damp heat
- Permissible Ambient Air Temperature Around The Device
- -40-60 °C, -40-60 °C, 60-70 °C with derating
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 39.3320079521764
- Environmental Disclosure
- ENVPEP110230EN
- Operating Altitude
- 0...9842.52 ft (0...3000 m)
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP110230EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
China ROHS RegulationProduct out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
EU ROHS DirectiveCompliant By Exemption , Compliant with Exemptions
ROHS Exemption InformationYes
Mercury FreeYes
Circularity ProfileENVEOLI1102030EN
IP Degree Of ProtectionIP20 front face IEC 60529
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-08-05
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- contactor
Range Of ProductTeSys Deca
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Depth
- 95 mm
