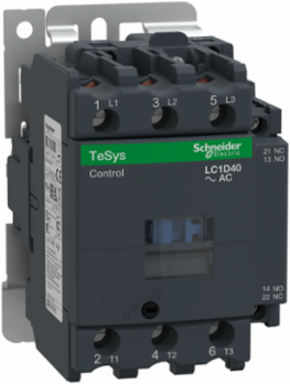

Schneider Electric LC1D40U7 Contactor, TeSys Deca,3P(3NO),AC-3/AC-3e/<=440V 40A,240V AC 50/60Hz coil, screw clamp terminals
Schneider Electric LC1D40U7 Contactor, TeSys Deca,3P(3NO),AC-3/AC-3e/<=440V 40A,240V AC 50/60Hz coil, screw clamp terminals
- MPN: LC1D40U7
- PPN: SCH-LC1D40U7
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$413.76/ EA
Description
Contactor, TeSys Deca,3P(3NO),AC-3/AC-3e/<=440V 40A,240V AC 50/60Hz coil, screw clamp terminals
Specifications
Environment
- Product Certifications
- RINA || UL || BV || CSA || GOST || DNV || LROS (Lloyds register of shipping) || GL || CCC || UKCA
- Standards
- IEC 60947-5-1 || IEC 60947-4-1 || UL 508 || EN 60947-4-1 || EN 60947-5-1 || CSA C22.2 No 14
- Net Weight
- 1.4 kg
- Ip Degree Of Protection
- IP2X IEC 60529 || IP2X VDE 0106
- Operating Altitude
- 0...3000 m
- Width
- 75 mm
Height127 mm
Climatic WithstandIACS E10 exposure to damp heat
Flame RetardanceV1 UL 94
Mechanical Robustnessshocks contactor opened 10 Gn for 11 ms) || shocks contactor closed 15 Gn for 11 ms) || vibrations contactor opened 2 Gn, 5...300 Hz) || vibrations contactor closed 4 Gn, 5...300 Hz)
Fire Resistance850 °C IEC 60695-2-1
Depth119 mm
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110205EN
- Pvc Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- N/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Toxic Heavy Metal FreeYes
Reach Free Of SvhcYes
China Rohs RegulationPro-active China RoHS declaration (out of China RoHS legal scope)
Eu Rohs DirectiveCompliant
Complementary
- Non-Overlap Time
- 1.5 ms on de-energisation between NC and NO contacts || 1.5 ms on energisation between NC and NO contacts
- Power Dissipation Per Pole
- 5.4 W AC-1 || 2.4 W AC-3 || 2.4 W AC-3e
- [Ith] Conventional Free Air Thermal Current
- 10 A (at 60 °C) for control circuit || 60 A (at 60 °C) for power circuit
- Mounting Support
- rail || plate
- Safety Reliability Level
- B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
- Rated Breaking Capacity
- 800 A at 440 V for power circuit conforming to IEC 60947
- Associated Fuse Rating
- 10 A gG for control circuit conforming to IEC 60947-5-1 || 80 A gG at <= 690 V coordination type 1 for power circuit || 80 A gG at <= 690 V coordination type 2 for power circuit
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV IEC 60947
- Connections - Terminals
- control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: rigid || control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: rigid || control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end || control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end || control circuit: screw clamp terminals 1 1-2.5 mm² - cable stiffness: flexible with cable end || control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end || power circuit: screw terminals 1 2.5-25 mm² - cable stiffness: rigid || power circuit: screw terminals 2 2.5-16 mm² - cable stiffness: rigid || power circuit: screw terminals 1 2.5-25 mm² - cable stiffness: flexible without cable end || power circuit: screw terminals 2 2.5-16 mm² - cable stiffness: flexible without cable end || power circuit: screw terminals 1 2.5-25 mm² - cable stiffness: flexible with cable end || power circuit: screw terminals 2 2.5-10 mm² - cable stiffness: flexible with cable end
- Operating Time
- 4...19 ms opening || 12...26 ms closing
- Maximum Operating Rate
- 3600 cyc/h 60 °C
- Mechanical Durability
- 6000000 cycles
- Compatibility Code
- LC1D
- Overvoltage Category
- III
- Motor Power Kw
- 18.5 kW at 380...400 V AC 50 Hz (AC-3) || 22 kW at 500 V AC 50 Hz (AC-3) || 30 kW at 660...690 V AC 50 Hz (AC-3) || 22 kW at 1000 V AC 50 Hz (AC-3) || 22 kW at 415 V AC 50 Hz (AC-3) || 22 kW at 440 V AC 50 Hz (AC-3) || 11 kW at 220...230 V AC 50 Hz (AC-3) || 9 kW at 400 V AC 50 Hz (AC-4) || 18.5 kW at 380...400 V AC 50 Hz (AC-3e) || 22 kW at 500 V AC 50 Hz (AC-3e) || 30 kW at 660...690 V AC 50 Hz (AC-3e) || 22 kW at 1000 V AC 50 Hz (AC-3e) || 22 kW at 415 V AC 50 Hz (AC-3e) || 22 kW at 440 V AC 50 Hz (AC-3e) || 11 kW at 220...230 V AC 50 Hz (AC-3e)
- Heat Dissipation
- 4-5 W at 50/60 Hz for control circuit
Minimum Switching Current5 mA for control circuit
Auxiliary Contact Composition1 NO + 1 NC
Control Circuit Voltage Limits0.3...0.6 Uc -40-70 °C drop-out AC 50/60 Hz || 0.8...1.1 Uc -40-60 °C operational AC 50 Hz || 0.85...1.1 Uc -40-60 °C operational AC 60 Hz || 1...1.1 Uc 60-70 °C operational AC 50/60 Hz
Control Circuit TypeAC 50/60 Hz
Insulation Resistance> 10 MOhm for control circuit
Irms Rated Making Capacity800 A at 440 V for power circuit conforming to IEC 60947 || 140 A AC for control circuit conforming to IEC 60947-5-1
Inrush Power In Va140-140 VA cos phi 0.75 (at 20 °C) || 160-160 VA cos phi 0.75 (at 20 °C)
Pole Contact Composition3 NO
Coil Technologywithout built-in bidirectional peak limiting diode suppressor
Minimum Switching Voltage17 V for control circuit
Tightening Torquecontrol circuit 1.7 N.m screw clamp terminal flat Ø 6 mm || control circuit 1.7 N.m screw clamp terminal Philips No 2 || power circuit 5 N.m screw terminal flat Ø 6 to Ø 8 mm || control circuit 1.7 N.m screw clamp terminal pozidriv No 2
Auxiliary Contacts Typemechanically linked 1 NO + 1 NC IEC 60947-5-1 || mirror contact 1 NC IEC 60947-4-1
Hold-In Power Consumption In Va13-13 VA 60 Hz cos phi 0.3 (at 20 °C) || 15-15 VA 50 Hz cos phi 0.3 (at 20 °C)
Motor Power Hp3 hp at 115 V AC 60 Hz for 1 phase motors || 5 hp at 230/240 V AC 60 Hz for 1 phase motors || 10 hp at 200/208 V AC 60 Hz for 3 phases motors || 10 hp at 230/240 V AC 60 Hz for 3 phases motors || 30 hp at 460/480 V AC 60 Hz for 3 phases motors || 30 hp at 575/600 V AC 60 Hz for 3 phases motors
[Ui] Rated Insulation Voltagecontrol circuit 600 V CSA || control circuit 600 V UL || power circuit 600 V CSA || power circuit 600 V UL || control circuit 690 V IEC 60947-1 || power circuit 690 V IEC 60947-1
Protective Coverwith
Specifications
- [Uc] Control Circuit Voltage
- 240 V AC 50/60 Hz
- Range Of Product
- TeSys Deca
- Product Or Component Type
- contactor
- Utilisation Category
- AC-4 || AC-1 || AC-2 || AC-3 || AC-3e
- Poles Description
- 3P
[Ue] Rated Operational Voltagepower circuit <= 690 V AC 25...400 Hz
Contactor Applicationmotor control || resistive load
RangeTeSys
[Ie] Rated Operational Current40 A (at <60 °C) at <= 440 V AC AC-3 for power circuit || 60 A (at <60 °C) at <= 440 V AC AC-1 for power circuit || 40 A (at <60 °C) at <= 440 V AC AC-3e for power circuit
Device Short NameLC1D
