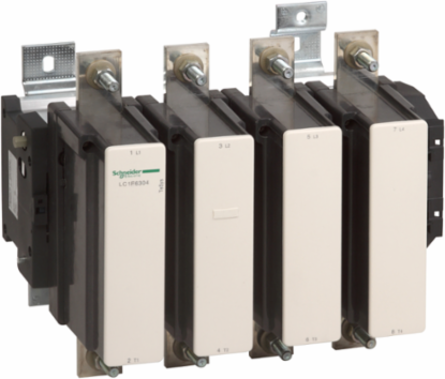

Schneider Electric LC1F6304 Contactor body without coil, TeSys F, 4P(4NO), AC-1 <=1000V 1000A
- MPN: LC1F6304
- PPN: SCH-LC1F6304
CAD
$9797.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys F contactor, 4 poles (4NO), 1000A/1000V AC-1, for non-inductive load applications. Contactor with no coil to allow a later selection and installation (coil to be ordered separately), it provides bolt terminals for bars or cables with lugs. For high operating rates until 1200 cycles/hour and environments until 55°C, it procures high reliability and durability. It makes installation and maintenance easy thanks to a drawer for insertion of the selected coil and a large choice of add-on blocks and accessories (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Czechia, France
Depth255 mm
Complementary Attributes
- Control Circuit Voltage Limits
- operational: 0.85...1.1 Uc AC 40...400 Hz with LX1/LX9 coildrop-out: 0.25...0.5 Uc AC 40...400 Hz with LX1/LX9 coiloperational: 0.85...1.1 Uc DC with LX4 coil, drop-out: 0.2...0.35 Uc DC with LX4 coil
- Maximum Operating Rate
- 1200 cyc/h 55 °C
Irms Rated Making Capacity6300 A AC conforming to IEC 60947-4-1
Rated Breaking Capacity5040 A conforming to IEC 60947-4-1
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Mechanical Robustness
- vibrations contactor open2 Gn, 5...300 Hzvibrations contactor closed4 Gn, 5...300 Hzshocks contactor open6 Gn for 1/2 sine wave (11 ms), shocks contactor closed15 Gn for 1/2 sine wave (11 ms)
- Certificate Agency
- ABS, UL, RINA, DNV, CSA, CB, LROS (Lloyds register of shipping), BV, RMRoS, UKCA
- [Uc] Control Circuit Voltage
- 48...1000 V AC 40...400 Hz with LX1/LX9 coil, 48...440 V DC with LX4 coil
- Connections - Terminals
- control circuit screw clamp terminals 1 1-4 mm²flexible with cable endcontrol circuit screw clamp terminals 1 1-4 mm²control circuit screw clamp terminals 2 1-4 mm², power circuit bar 2 60 x 5 mm, power circuit bolted connectioncontrol circuit screw clamp terminals 1 1-4 mm²flexible without cable end, control circuit screw clamp terminals 2 1-4 mm²flexible with cable end, control circuit screw clamp terminals 2 1-2.5 mm²solid without cable end
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 4.1126959464082296, 4 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 13 kg CO2 eq., 13.075914622284719
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1505009EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2542
- China Rohs In Scope
- No
- Without Single Use Plastic
- No, we have minimized the use of plastic in the packaging in compliance with regulations and considering quality and safety standards
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Average Impedance
- 0.12 mOhm - Ith 1000 A 50 Hz
- Contactor Application
- resistive load
- Energy Efficiency Optimized
- False
- Inrush Power In Va
- 1500-1730 VA, 40...400 Hz cos phi 0.9 (at 20 °C)with LX1/LX9 coil1420-1920 VA (at 20 °C)with LX4 coil
- Mounting Support
- plate
- Overvoltage Category
- III
- Power Dissipation Per Pole
- 120 W AC-1
- Product Name
- TeSys F
- Protective Treatment
- TH
- Range Of Product
- TeSys F
- Software Version
- v6.1
- Tightening Torque
- power circuit 58 N.mcontrol circuit 1.2 N.m
- Utilisation Category
- AC-1
- Pep Code
- ENVPEP1505009EN
- Pep Verification Date
- 2025-07-19
- Psr Version
- PSR-0005-ed3-EN-2023 06 06
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- China, CN
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2018; China, CN
- Recyclability Potential In %
- 95
- Width Nominal
- 389 mm
- [Ie] Rated Operational Current
- 1000 A 40 °C) <= 440 V AC AC-1
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536490065
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Operating Time40...80 ms closing with LX1/LX9 coil100...200 ms opening with LX1/LX9 coil60...70 ms closing with LX4 coil, 40...50 ms opening with LX4 coil
[Ith] Conventional Free Air Thermal Current1000 A (at 40 °C), 1250 A
[Ue] Rated Operational Voltage<= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 460 V DC, <= 460 V DC<= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 460 V DC, <= 460 V DC
Carbon Footprint Of The Distribution Phase [A4]0.7134349168779648, 0.7 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.00573308375189078
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]10 706 kg CO2 eq., 10705.747958224045
Local Publishable Date2026-06-27
Stocking FlagY
Device TypeLV equipment - LV contactor
TraceabilityNo
Average Life Duration20 year(s)
Weee Product Category4
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Associated Fuse Rating630 A aM at <= 440 V1000 A gG at <= 440 V
Compatibility CodeLC1F
Device Short NameLC1F
Heat Dissipation20-20 W
Mechanical Durability5 Mcycles
Number Of Poles4P
Pole Contact Composition4 NO
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Or Component Typecontactor
RangeTeSys
ReturnabilityNo
Sustainable PackagingNo
Total Lifecycle Carbon Footprint10 724 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2023-02
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionEstablish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh12264
Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; China, CN
Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; China, CN
Height Nominal304 mm
[Icw] Rated Short-time Withstand Current5050 A 40 °C - 10 s4400 A 40 °C - 30 s3400 A 40 °C - 1 min2200 A 40 °C - 3 min1600 A 40 °C - 10 min
[Ui] Rated Insulation Voltage1000 V IEC 60947-4-11500 V VDE 0110 group C
Hold-in Power Consumption In Va20-25 VA, 40...400 Hz cos phi 0.9 (at 20 °C)with LX1/LX9 coil6.5-12.5 VA (at 20 °C)with LX4 coil
Package Weight(Lbs)21.000 kg
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Ambient Air Temperature For Storage
- -60-80 °C, -60-80 °C
- Take Back
- No
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI1505009EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Permissible Ambient Air Temperature Around The Device
- -40-70 °C-40-70 °C
- Pep Code
- ENVPEP1505009EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Operation-5-55 °C, -5-55 °C
Ip Degree Of ProtectionIP20 front face with shrouds IEC 60529, IP20 front face with shrouds VDE 0106
Recycled Metal Content At Cr Level0 %
Carbon Footprint10723.65573679337
Environmental DisclosureENVPEP1505009EN
Operating Altitude9842.52 ft (3000 m) without derating
Packaging Without Single Use PlasticNo, we have minimized the use of plastic in the packaging in compliance with regulations and considering quality and safety standards
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-07-19
Psr VersionPSR-0005-ed3-EN-2023 06 06
General Attributes
- Product Or Component Type
- contactor
Range Of ProductTeSys F
ETIM
- ETIM 8
- EC000066
ETIM 9EC000066
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
