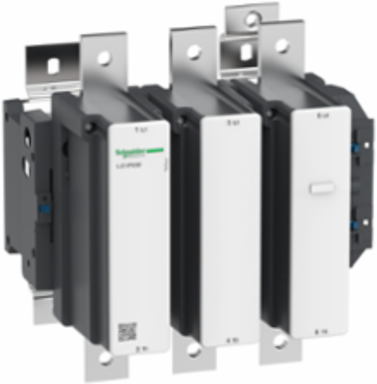

Schneider Electric LC1F630 Contactor body, TeSys F,3P(3NO), AC-3, <=440V 630 A without coil
- MPN: LC1F630
- PPN: SCH-LC1F630
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
TeSys F contactor, 3 poles (3NO), 630A/1000V AC-3, for motor applications up to 250kW@400V. Contactor with no coil to allow a later selection and installation (coil to be ordered separately), it provides bolt terminals for bars or cables with lugs. For high operating rates until 1200 cycles/hour and environments until 55°C, it procures high reliability and durability. It makes installation and maintenance easy thanks to a drawer for insertion of the selected coil and a large choice of add-on blocks and accessories (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Documentation & Downloads
Specifications
Key Specifications
- [Ue] Rated Operational Voltage
- <= 1000 V AC 50/60 Hz || <= 460 V DC
- Product Or Component Type
- contactor
- Range
- TeSys
- [Ie] Rated Operational Current
- 1000 A 40 °C) <= 440 V AC AC-1 || 630 A 55 °C) <= 440 V AC AC-3
- Poles Description
- 3P
- Device Short Name
- LC1F
Contactor Applicationresistive load || motor control
Product NameTeSys F
Pole Contact Composition3 NO
Utilisation CategoryAC-4 || AC-1 || AC-3
Motor Power Kw335 kW at 380...400 V AC 50/60 Hz (AC-3) || 375 kW at 415 V AC 50/60 Hz (AC-3) || 400 kW at 440 V AC 50/60 Hz (AC-3) || 400 kW at 500 V AC 50/60 Hz (AC-3) || 450 kW at 1000 V AC 50/60 Hz (AC-3) || 200 kW at 220...240 V AC 50/60 Hz (AC-3) || 450 kW at 660...690 V AC 50/60 Hz (AC-3) || 100 kW at 400 V AC 50/60 Hz (AC-4)
Complementary
- Product Certifications
- ABS || UL || RINA || DNV || CSA || CB || LROS (Lloyds register of shipping) || BV || RMRoS || UKCA
- Average Impedance
- 0.12 mOhm - Ith 1000 A 50 Hz
- [Ith] Conventional Free Air Thermal Current
- 1000 A (at 40 °C) || 1250 A
- [Uc] Control Circuit Voltage
- 48...1000 V AC 40...400 Hz with LX1/LX9 coil || 48...440 V DC with LX4 coil
- Rated Breaking Capacity
- 5040 A conforming to IEC 60947-4-1
- Associated Fuse Rating
- 630 A aM at <= 440 V || 1000 A gG at <= 440 V
- Connections - Terminals
- power circuit bar 2 60 x 5 mm || power circuit bolted connection || control circuit screw clamp terminals 1 1-4 mm²flexible without cable end || control circuit screw clamp terminals 2 1-4 mm²flexible with cable end || control circuit screw clamp terminals 1 1-4 mm²flexible with cable end || control circuit screw clamp terminals 2 1-2.5 mm²solid without cable end || control circuit screw clamp terminals 1 1-4 mm² || control circuit screw clamp terminals 2 1-4 mm²
- Maximum Operating Rate
- 1200 cyc/h 55 °C
- Tightening Torque
- power circuit 58 N.m || control circuit 1.2 N.m
- Compatibility Code
- LC1F
- Overvoltage Category
- III
- [Icw] Rated Short-Time Withstand Current
- 5050 A 40 °C - 10 s || 4400 A 40 °C - 30 s || 3400 A 40 °C - 1 min || 2200 A 40 °C - 3 min || 1600 A 40 °C - 10 min
Power Dissipation Per Pole120 W AC-1 || 48 W AC-3
Control Circuit Voltage Limitsoperational: 0.85...1.1 Uc AC 40...400 Hz with LX1/LX9 coil || drop-out: 0.25...0.5 Uc AC 40...400 Hz with LX1/LX9 coil || operational: 0.85...1.1 Uc DC with LX4 coil || drop-out: 0.2...0.35 Uc DC with LX4 coil
StandardsEN 60947-4-1 || IEC 60947-4-1 || IEC 60947-1 || JIS C8201-4-1 || EN 60947-1
Mounting Supportplate
Irms Rated Making Capacity6300 A AC conforming to IEC 60947-4-1
[Uimp] Rated Impulse Withstand Voltage8 kV
Inrush Power In Va1500-1730 VA, 40...400 Hz cos phi 0.9 (at 20 °C)with LX1/LX9 coil || 1420-1920 VA (at 20 °C)with LX4 coil
Operating Time40...80 ms closing with LX1/LX9 coil || 100...200 ms opening with LX1/LX9 coil || 60...70 ms closing with LX4 coil || 40...50 ms opening with LX4 coil
Mechanical Durability5 Mcycles
Hold-In Power Consumption In Va20-25 VA, 40...400 Hz cos phi 0.9 (at 20 °C)with LX1/LX9 coil || 6.5-12.5 VA (at 20 °C)with LX4 coil
[Ui] Rated Insulation Voltage1000 V IEC 60947-4-1 || 1500 V VDE 0110 group C
Heat Dissipation20-20 W
Environment
- Mechanical Robustness
- vibrations contactor open2 Gn, 5...300 Hz || vibrations contactor closed4 Gn, 5...300 Hz || shocks contactor open6 Gn for 1/2 sine wave (11 ms) || shocks contactor closed15 Gn for 1/2 sine wave (11 ms)
- Height
- 304 mm
- Ambient Air Temperature For Storage
- -60-80 °C
- Ip Degree Of Protection
- IP20 front face with shrouds IEC 60529 || IP20 front face with shrouds VDE 0106
- Width
- 309 mm
- Permissible Ambient Air Temperature Around The Device
- -40-70 °C
Ambient Air Temperature For Operation-5-55 °C
Net Weight18.6 kg
Protective TreatmentTH
Operating Altitude3000 m without derating
Depth255 mm
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1505009EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Eu Rohs Directive
- Compliant with Exemptions
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1505009EN
