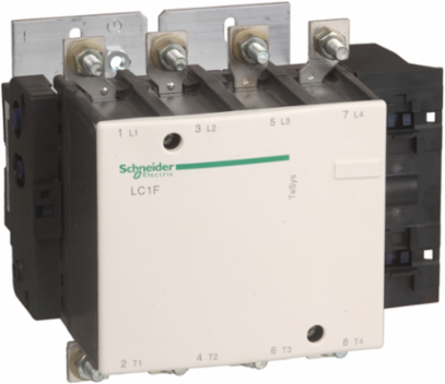

Contactor body without coil, TeSys F, 4P(4NO), AC-1 <=1000V 315A
Schneider Electric

Schneider Electric LC1F2254 Contactor body without coil, TeSys F, 4P(4NO), AC-1 <=1000V 315A

  • MPN: LC1F2254
  • PPN: SCH-LC1F2254

CAD

$4183.43

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

TeSys F contactor, 4 poles (4NO), 315A/690V AC-1, for non-inductive load applications. Contactor with no coil to allow a later selection and installation (coil to be ordered separately), it provides bolt terminals for bars or cables with lugs. For high operating rates until 2400 cycles/hour and environments until 55°C, it procures high reliability and durability. It makes installation and maintenance easy thanks to a drawer for insertion of the selected coil and a large choice of add-on blocks and accessories (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Brazil, Czechia, France
Depth181 mm

Complementary Attributes

Control Circuit Voltage Limits
operational: 0.85...1.1 Uc AC 40...400 Hz with LX9 coildrop-out: 0.2...0.55 Uc AC 40...400 Hz with LX9 coiloperational: 0.85...1.1 Uc DC with LX4 coil, drop-out: 0.15...0.2 Uc DC with LX4 coil, operational: 85...275 V AC 50/60 Hz with LXE coil, drop-out: 0...60 V AC 50/60 Hz with LXE coil, operational: 85...418 V DC with LXE coil, drop-out: 0...45 V DC with LXE coil
Maximum Operating Rate
2400 cyc/h 55 °C
Irms Rated Making Capacity2250 A conforming to IEC 60947-4-1
Rated Breaking Capacity1800 A conforming to IEC 60947-4-1

Important Information Attributes

Persona Type Ids
EU, OM, OM8, PB
Market Segmentation Id
COMMERCIAL, INDUSTRIAL
Heat Dissipation
8-9.8 W, 2.2-2.5 W
Mechanical Robustness
vibrations contactor open2 Gn, 5...300 Hzvibrations contactor closed5 Gn, 5...300 Hzshocks contactor open7 Gn for 1/2 sine wave (11 ms), shocks contactor closed15 Gn for 1/2 sine wave (11 ms)
Tightening Torque
power circuit 35 N.mcontrol circuit 1.2 N.m, control circuit 0.6 N.m
[Uc] Control Circuit Voltage
24...575 V AC 40...400 Hz with LX9 coil, 24...460 V DC with LX4 coil, 100...250 V AC 50/60 Hz with LXE coil, 100...380 V DC with LXE coil
Connections - Terminals
control circuit screw clamp terminals 1 1-4 mm²flexible with cable endcontrol circuit screw clamp terminals 1 1-4 mm²control circuit screw clamp terminals 2 1-4 mm²control circuit screw clamp terminals 1.0 0.2-2.5 mm²solid without cable end, power circuit lugs-ring terminals 1 185-185 mm², power circuit connector 1 185-185 mm², power circuit bar 2 32 x 4 mm, power circuit bolted connection, control circuit screw clamp terminals 1 1-4 mm²flexible without cable end, control circuit screw clamp terminals 2 1-4 mm²flexible with cable end, control circuit screw clamp terminals 2 1-2.5 mm²solid without cable end, control circuit screw clamp terminals 1.0 0.2-2.5 mm²flexible without cable end, control circuit screw clamp terminals 1.0 0.25-2.5 mm²flexible with cable end
Carbon Footprint Of The Distribution Phase [A4]
1.094418980743494, 1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]
0.5 kg CO2 eq., 0.5091332019311787
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
1 501 kg CO2 eq., 1500.8012127333564
Local Publishable Date
2026-06-27
Stocking Flag
Y
Device Type
LV equipment - LV contactor
Traceability
No
Average Life Duration
20 year(s)
Weee Product Category
5
Eoli Availability Display
Yes
Reach Full Compliance Status
Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive
Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status
Compliant By Exemption
Rohs Eur Full Compliance Status
Compliant By Exemption
With Recycled Cardboard
Yes
Product Contributes To Saved And Avoided Emissions
No
Tier
1
Function Option
Standard
Associated Fuse Rating
315 A gG at <= 440 V
Compatibility Code
LC1F
Device Short Name
LC1F
Mounting Support
plate
Overvoltage Category
III
Power Dissipation Per Pole
32 W AC-1
Product Name
TeSys F
Protective Treatment
TH
Range Of Product
TeSys F
Software Version
v6.1
Total Lifecycle Carbon Footprint
1 623 kg CO2 eq.
Weee Label
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version
2023-02
Pcr Version
PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep
Independent internal review
Functional-unit Description
Establish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
Functional-unit Unit
unit
Energy Consumption On Product Lifetime In Kwh
3661.68
Energy Model - Installation [A5]
Electricity Mix; AC; consumption mix, at consumer; < 1kV; EU-27
Energy Model - End Of Life [C1-c4]
Electricity Mix; AC; consumption mix, at consumer; < 1kV; EU-27
Height Nominal
197 mm
[Icw] Rated Short-time Withstand Current
1800 A 40 °C - 10 s1000 A 40 °C - 30 s850 A 40 °C - 1 min560 A 40 °C - 3 min440 A 40 °C - 10 min
[Ith] Conventional Free Air Thermal Current
315 A (at 40 °C)
[Uimp] Rated Impulse Withstand Voltage
8 kV
Package Weight(Lbs)
5.595 kg
Warranty (In Months)
18
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Inrush Power In Va950-1180 VA, 40...400 Hz cos phi 0.9 (at 20 °C)with LX9 coil737-902 VA (at 20 °C)with LX4 coil280-310 VA, 50/60 Hz cos phi 0.5 (at 20 °C)with LXE coil, 270-320 VA (at 20 °C)with LXE coil
Operating Time35 ms closing with LX9 coil130 ms opening with LX9 coil30...40 ms closing with LX4 coil, 30...50 ms opening with LX4 coil40...80 ms closing with LXE coil, 6...54 ms opening with LXE coil
Certificate AgencyUL, LROS (Lloyds register of shipping), BV, CB, ABS, DNV, CSA, RMRoS, RINA, UKCA
[Ue] Rated Operational Voltage<= 690 V AC 50/60 Hz, <= 690 V AC 50/60 Hz, <= 690 V AC 50/60 Hz, <= 460 V DC, <= 460 V DC<= 690 V AC 50/60 Hz, <= 690 V AC 50/60 Hz, <= 690 V AC 50/60 Hz, <= 460 V DC, <= 460 V DC
Hold-in Power Consumption In Va8.9-10.9 VA, 40...400 Hz cos phi 0.9 (at 20 °C)with LX9 coil4.13-5.07 VA (at 20 °C)with LX4 coil4.5-7.0 VA, 50/60 Hz cos phi 0.5 (at 20 °C)with LXE coil, 2.5-4.0 VA (at 20 °C)with LXE coil
Carbon Footprint Of The End-of-life Phase [C1 To C4]10.10419461290824, 10 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]110 kg CO2 eq., 110.30389052269476
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2405025
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2538
China Rohs In ScopeNo
Without Single Use PlasticNo, we have minimized the use of plastic in the packaging in compliance with regulations and considering quality and safety standards
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Average Impedance0.32 mOhm - Ith 315 A 50 Hz
Contactor Applicationresistive load
Mechanical Durability10 Mcycles
Number Of Poles4P
Pole Contact Composition4 NO
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Or Component Typecontactor
RangeTeSys
ReturnabilityNo
Sustainable PackagingNo
Utilisation CategoryAC-1
Pep CodeENVPEP2405025EN
Pep Verification Date2025-08-11
Psr VersionPSR-0005-ed3-EN-2023 06 06
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Manufacturing [A1-a3]Czech Republic, CZ
Energy Model - Use [B6]Electricity Mix; AC; consumption mix, at consumer; < 1kV; EU-27
Recyclability Potential In %91
Width Nominal208.5 mm
[Ie] Rated Operational Current315 A 40 °C) <= 440 V AC-1
[Ui] Rated Insulation Voltage1000 V IEC 60947-4-11500 V VDE 0110 group C
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536490065

Environment Attributes Main

China Rohs Regulation
Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Ambient Air Temperature For Storage
-60-80 °C, -60-80 °C
Take Back
No
Mercury Free
Yes
Circularity Profile
ENVEOLI2405025
Eu Rohs Directive
Compliant By Exemption
Packaging Made With Recycled Cardboard
Yes
Permissible Ambient Air Temperature Around The Device
-40-70 °C-40-70 °C
Pep Code
ENVPEP2405025EN
Pcr Version
PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep
Independent internal review
Ambient Air Temperature For Operation-5-55 °C, -5-55 °C
Ip Degree Of ProtectionIP20 front face with shrouds IEC 60529, IP20 front face with shrouds VDE 0106
Recycled Metal Content At Cr Level0 %
Carbon Footprint1622.812850051634
Environmental DisclosureENVPEP2405025EN
Operating Altitude9842.52 ft (3000 m) without derating
Packaging Without Single Use PlasticNo, we have minimized the use of plastic in the packaging in compliance with regulations and considering quality and safety standards
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-08-11
Psr VersionPSR-0005-ed3-EN-2023 06 06

General Attributes

Product Or Component Type
contactor
Range Of ProductTeSys F

ETIM

ETIM 8
EC000066
ETIM 9EC000066

Contractual Warranty Attributes

Warranty Period
18 months
Warranty18 months
