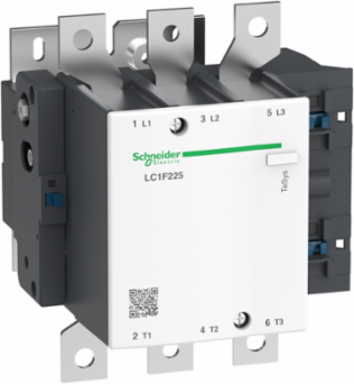

Schneider Electric LC1F225 Contactor body without coil, TeSys F, 3P(3NO), AC-3 <=440V 225A

MPN: LC1F225
PPN: SCH-LC1F225

Spec sheet

Compare

Loading compare button...

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$2328.91/ EA

Qty:

Loading add to cart quantity...

Description

TeSys F contactor, 3 poles (3NO), 225A/690V AC-3, for motor applications up to 110kW@400V. Contactor with no coil to allow a later selection and installation (coil to be ordered separately), it provides bolt terminals for bars or cables with lugs. For high operating rates until 2400 cycles/hour and environments until 55°C, it procures high reliability and durability. It makes installation and maintenance easy thanks to a drawer for insertion of the selected coil and a large choice of add-on blocks and accessories (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Specifications

Conformance Attributes

Product Certifications: UL, LROS (Lloyds register of shipping), BV, CB, ABS, DNV, CSA, RMRoS, RINA, UKCA

StandardsJIS C8201-4-1, IEC 60947-4-1, IEC 60947-1, EN 60947-4-1, EN 60947-1

Complementary Attributes

Control Circuit Voltage Limits: operational: 0.85...1.1 Uc AC 40...400 Hz with LX9 coil, drop-out: 0.2...0.55 Uc AC 40...400 Hz with LX9 coil, operational: 0.85...1.1 Uc DC with LX4 coil, drop-out: 0.15...0.2 Uc DC with LX4 coil, operational: 85...275 V AC 50/60 Hz with LXE coil, drop-out: 0...60 V AC 50/60 Hz with LXE coil, operational: 85...418 V DC with LXE coil, drop-out: 0...45 V DC with LXE coil

Ie Rated Operational Current: 315 A 40 °C) <= 440 V AC-1, 225 A 55 °C) <= 440 V AC-3

Ue Rated Operational Voltage: <= 690 V AC 50/60 Hz, <= 690 V AC 50/60 Hz, <= 690 V AC 50/60 Hz, <= 460 V DC, <= 460 V DC, <= 690 V AC 50/60 Hz, <= 690 V AC 50/60 Hz, <= 690 V AC 50/60 Hz, <= 460 V DC, <= 460 V DC

Irms Rated Making Capacity: 2250 A conforming to IEC 60947-4-1

Rated Breaking Capacity: 1800 A conforming to IEC 60947-4-1

Icw Rated Short Time Withstand Current1800 A 40 °C - 10 s, 1000 A 40 °C - 30 s, 850 A 40 °C - 1 min, 560 A 40 °C - 3 min, 440 A 40 °C - 10 min

Uc Control Circuit Voltage24...575 V AC 40...400 Hz with LX9 coil, 24...460 V DC with LX4 coil, 100...250 V AC 50/60 Hz with LXE coil, 100...380 V DC with LXE coil

Ui Rated Insulation Voltage1000 V IEC 60947-4-1, 1500 V VDE 0110 group C

Maximum Operating Rate2400 cyc/h 55 °C

Uimp Rated Impulse Withstand Voltage8 kV

Important Information Attributes

Persona Type Ids: EU, OM, OM8, PB

Market Segmentation Id: COMMERCIAL, INDUSTRIAL

Associated Fuse Rating: 315 A gG at <= 440 V, 250 A aM at <= 440 V

Heat Dissipation: 8-9.8 W, 2.2-2.5 W

Inrush Power In Va: 950-1180 VA, 40...400 Hz cos phi 0.9 (at 20 °C)with LX9 coil, 737-902 VA (at 20 °C)with LX4 coil, 280-310 VA, 50/60 Hz cos phi 0.5 (at 20 °C)with LXE coil, 270-320 VA (at 20 °C)with LXE coil

Motor Power Kw: 110 kW at 380...400 V AC 50/60 Hz (AC-3), 110 kW at 415 V AC 50/60 Hz (AC-3), 110 kW at 440 V AC 50/60 Hz (AC-3), 129 kW at 500 V AC 50/60 Hz (AC-3), 63 kW at 220...240 V AC 50/60 Hz (AC-3), 129 kW at 660...690 V AC 50/60 Hz (AC-3), 40 kW at 400 V AC 50/60 Hz (AC-4)

Power Dissipation Per Pole: 32 W AC-1, 16 W AC-3

Utilisation Category: AC-4, AC-1, AC-3

Icw Rated Short Time Withstand Current: 1800 A 40 °C - 10 s, 1000 A 40 °C - 30 s, 850 A 40 °C - 1 min, 560 A 40 °C - 3 min, 440 A 40 °C - 10 min

Carbon Footprint Of The Distribution Phase A4: 1.094418980743494, 1 kg CO2 eq.

Carbon Footprint Of The Installation Phase A5: 0.5 kg CO2 eq., 0.5091332019311787

Carbon Footprint Of The Use Phase B2 B3 B4 B6: 783 kg CO2 eq., 782.7145080762481

Local Publishable Date: 2024-11-02

Return Indicator: Y

Stock Policy: 2

Serviceability: No

Field Service Division: PPIBS

Legacy Weee Scope: In

Scope Perimeter: At least in Europe

End Of Life Doc Ref: ENVEOLI2405025

Reach Full Compliance Status Id: CONTAINS_SVHC

Rohs Eur In Scope: Yes

Rohs Eur Conformity Date: 2538

China Rohs In Scope: No

Without Single Use Plastic: No

Tier Id: 1

Function Option Id: STANDARD

Product Kit Identifier: N

Compatibility Code: LC1F

Mechanical Durability: 10 Mcycles

Overvoltage Category: III

Poles Description: 3P

Product Name: TeSys F

Protective Treatment: TH

Range Of Product: TeSys F

Software Version: v6.1

Total Lifecycle Carbon Footprint: 905 kg CO2 eq.

Ith Conventional Free Air Thermal Current: 315 A (at 40 °C)

Pep Code: ENVPEP2405025EN

Pep Verification Date: 2025-08-11

Psr Version: PSR-0005-ed3-EN-2023 06 06

Data Source: extrapolated product

Functional Unit Quantity: 1

Product Weight In G2: 5911

Energy Consumption On Product Lifetime In Kwh: 1909.68

Energy Model Installation A5 2: Electricity Mix; AC; consumption mix, at consumer; < 1kV; EU-27

Energy Model End Of Life C1 C4 2: Electricity Mix; AC; consumption mix, at consumer; < 1kV; EU-27

Offer Owner Code: 190788

Width Nominal: 168.5 mm

Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder

Market SegmentationCommercial, Industrial

Contactor Applicationmotor control, resistive load

Hold In Power Consumption In Va8.9-10.9 VA, 40...400 Hz cos phi 0.9 (at 20 °C)with LX9 coil, 4.13-5.07 VA (at 20 °C)with LX4 coil, 4.5-7.0 VA, 50/60 Hz cos phi 0.5 (at 20 °C)with LXE coil, 2.5-4.0 VA (at 20 °C)with LXE coil

Mechanical Robustnessvibrations contactor open2 Gn, 5...300 Hz, vibrations contactor closed5 Gn, 5...300 Hz, shocks contactor open7 Gn for 1/2 sine wave (11 ms), shocks contactor closed15 Gn for 1/2 sine wave (11 ms)

Operating Time35 ms closing with LX9 coil, 130 ms opening with LX9 coil, 30...40 ms closing with LX4 coil, 30...50 ms opening with LX4 coil, 40...80 ms closing with LXE coil, 6...54 ms opening with LXE coil

Tightening Torquepower circuit 35 N.m, control circuit 1.2 N.m, control circuit 0.6 N.m

Connections Terminalscontrol circuit screw clamp terminals 1 1-4 mm²flexible with cable end, control circuit screw clamp terminals 1 1-4 mm², control circuit screw clamp terminals 2 1-4 mm², control circuit screw clamp terminals 1.0 0.2-2.5 mm²solid without cable end, power circuit lugs-ring terminals 1 185-185 mm², power circuit connector 1 185-185 mm², power circuit bar 2 32 x 4 mm, power circuit bolted connection, control circuit screw clamp terminals 1 1-4 mm²flexible without cable end, control circuit screw clamp terminals 2 1-4 mm²flexible with cable end, control circuit screw clamp terminals 2 1-2.5 mm²solid without cable end, control circuit screw clamp terminals 1.0 0.2-2.5 mm²flexible without cable end, control circuit screw clamp terminals 1.0 0.25-2.5 mm²flexible with cable end

Ie Rated Operational Current315 A 40 °C) <= 440 V AC-1, 225 A 55 °C) <= 440 V AC-3

Carbon Footprint Of The End Of Life Phase C1 To C410.10419461290824, 10 kg CO2 eq.

Carbon Footprint Of The Manufacturing Phase A1 To A3110 kg CO2 eq., 110.30389052269476

Local Data StatusPublishable

Global Commercial StatusEnd of commerc. announced

Stocking FlagN

Device TypeLV equipment - LV contactor

TraceabilityNo

Average Life Duration20 year(s)

Weee Product Category5

Eoli Availability DisplayYes

Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold

Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold

Rohs Eur StatusCompliant By Exemption

Rohs Eur Full Compliance StatusCompliant By Exemption

With Recycled CardboardYes

Product Contributes To Saved And Avoided EmissionsNo

Tier1

Function OptionStandard

Average Impedance0.32 mOhm - Ith 315 A 50 Hz

Device Short NameLC1F

Mounting Supportplate

Pole Contact Composition3 NO

Product AvailabilityStock - Normally stocked in distribution facility

Product Or Component Typecontactor

RangeTeSys

ReturnabilityYes

Sustainable PackagingNo

Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Warranty In Months18

Database Version2023-02

Pcr VersionPCR-4-ed4-EN-2021 09 06

Type Of Verification For The PepIndependent internal review

Functional Unit DescriptionEstablish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years

Functional Unit Unitunit

Reference Lifetime In Y220

Energy Model Manufacturing A1 A3 2Czech Republic, CZ

Energy Model Use B6 2Electricity Mix; AC; consumption mix, at consumer; < 1kV; EU-27

Recyclability Potential In 291

Height Nominal197 mm

Environment Attributes Main

China Rohs Regulation: Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.

Permissible Ambient Air Temperature Around The Device: -40-70 °C, -40-70 °C

Recycled Metal Content At Cr Level: 0 %

Carbon Footprint: 904.7261453945258

Ambient Air Temperature For Storage: -60-80 °C

Environmental Disclosure: ENVPEP2405025EN

Operating Altitude: 9842.52 ft (3000 m) without derating

Packaging Without Single Use Plastic: No

Pep Code: ENVPEP2405025EN

Pcr Version: PCR-4-ed4-EN-2021 09 06

Type Of Verification For The Pep: Independent internal review

Ip Degree Of ProtectionIP20 front face with shrouds IEC 60529, IP20 front face with shrouds VDE 0106

Take BackNej

Mercury FreeYes

Ambient Air Temperature For Operation-5-55 °C

Circularity ProfileENVEOLI2405025

Eu Rohs DirectiveCompliant By Exemption

Packaging Made With Recycled CardboardYes

Reach RegulationReference contains Substances of Very High Concern above the threshold

Pep Verification Date2025-08-11

Psr VersionPSR-0005-ed3-EN-2023 06 06

General Attributes

Product Or Component Type: contactor

Range Of ProductTeSys F

ETIM

ETIM 8: EC000066

ETIM 9EC000066

Contractual Warranty Attributes

Warranty Period: 18 months

Warranty18 months

Specifications

Country of Origin: United States

Depth181 mm
