Contactor body without coil, TeSys F, 4P(4NO), AC-1 <=1000V 400A
Schneider Electric

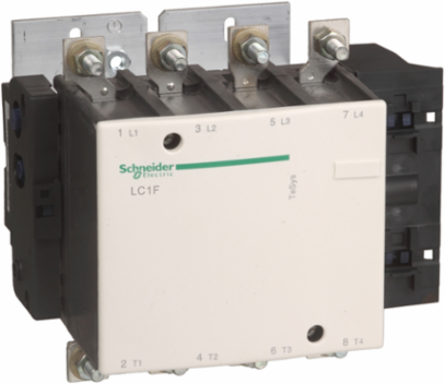

Schneider Electric LC1F3304 Contactor body without coil, TeSys F, 4P(4NO), AC-1 <=1000V 400A

  • MPN: LC1F3304
  • PPN: SCH-LC1F3304

CAD

$4768.23

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

TeSys F contactor, 4 poles (4NO), 400A/1000V AC-1, for non-inductive load applications. Contactor with no coil to allow a later selection and installation (coil to be ordered separately), it provides bolt terminals for bars or cables with lugs. For high operating rates until 2400 cycles/hour and environments until 55°C, it procures high reliability and durability. It makes installation and maintenance easy thanks to a drawer for insertion of the selected coil and a large choice of add-on blocks and accessories (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Brazil, Czechia, France
Depth219 mm

Complementary Attributes

Control Circuit Voltage Limits
operational: 0.85...1.1 Uc AC 40...400 Hz with LX1/LX9 coildrop-out: 0.35...0.55 Uc AC 40...400 Hz with LX1/LX9 coiloperational: 0.85...1.1 Uc DC with LX4 coil, drop-out: 0.15...0.2 Uc DC with LX4 coil, operational: 85...275 V AC 50/60 Hz with LXE coil, drop-out: 0...60 V AC 50/60 Hz with LXE coil, operational: 85...418 V DC with LXE coil, drop-out: 0...45 V DC with LXE coil
Maximum Operating Rate
2400 cyc/h 55 °C
Irms Rated Making Capacity3300 A AC conforming to IEC 60947-4-1
Rated Breaking Capacity2640 A conforming to IEC 60947-4-1

Important Information Attributes

Persona Type Ids
EU, OM, OM8, PB
Market Segmentation Id
COMMERCIAL, INDUSTRIAL
Heat Dissipation
8-8 W, 2.2-5.5 W
Operating Time
40...65 ms opening with LX4 coil40...65 ms closing with LX1/LX9 coil100...170 ms opening with LX1/LX9 coil40...50 ms closing with LX4 coil40...80 ms closing with LXE coil, 6...54 ms opening with LXE coil
Certificate Agency
ABS, CSA, UL, RMRoS, DNV, CB, BV, LROS (Lloyds register of shipping), RINA, UKCA
[Ue] Rated Operational Voltage
<= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 460 V DC, <= 460 V DC<= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 460 V DC, <= 460 V DC
Hold-in Power Consumption In Va
8-10 VA, 40...400 Hz cos phi 0.9 (at 20 °C)with LX1/LX9 coil3.68-4.53 VA (at 20 °C)with LX4 coil4.5-7.0 VA, 50/60 Hz cos phi 0.5 (at 20 °C)with LXE coil, 2.5-4.0 VA (at 20 °C)with LXE coil
Carbon Footprint Of The End-of-life Phase [C1 To C4]
18.17237744, 18 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]
58 kg CO2 eq., 57.77729717
Local Data Status
Publishable
Return Indicator
N
Stock Policy
2
Serviceability
No
Field Service Division
PPIBS
Weee Scope
In
Scope Perimeter
At least in Europe
End Of Life Doc Ref
ENVEOLI1505009EN
Reach Full Compliance Status Id
CONTAINS_SVHC
Rohs Eur In Scope
Yes
Rohs Eur Conformity Date
2542
China Rohs In Scope
No
Without Single Use Plastic
No, we have minimized the use of plastic in the packaging in compliance with regulations and considering quality and safety standards
Tier Id
1
Function Option Id
STANDARD
Product Kit Identifier
N
Average Impedance
0.28 mOhm - Ith 400 A 50 Hz
Contactor Application
resistive load
Energy Efficiency Optimized
False
Mechanical Durability
10 Mcycles
Number Of Poles
4P
Pole Contact Composition
4 NO
Product Availability
Non-Stock - Not normally stocked in distribution facility
Product Or Component Type
contactor
Range
TeSys
Returnability
No
Sustainable Packaging
No
Utilisation Category
AC-1
Pep Code
ENVPEP1505009EN
Pep Verification Date
2024-05-01
Psr Version
PSR-0005-ed3-EN-2023 06 06
Data Source
extrapolated product
Functional-unit Quantity
1
Reference Lifetime In Y
20
Energy Model - Manufacturing [A1-a3]
China, CN
Energy Model - Use [B6]
Electricity Mix; Low voltage; 2018; China, CN
Recyclability Potential In %
95
Width Nominal
261 mm
[Ie] Rated Operational Current
400 A 40 °C) <= 440 V AC AC-1
[Ui] Rated Insulation Voltage
1000 V IEC 60947-4-11500 V VDE 0110 group C
Nbr. Of Units In Pkg.
1
Take-back
No
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]
64305.3268
Customs Code
8536490065
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Mechanical Robustnessvibrations contactor open2 Gn, 5...300 Hzvibrations contactor closed5 Gn, 5...300 Hzshocks contactor open6 Gn for 1/2 sine wave (11 ms), shocks contactor closed15 Gn for 1/2 sine wave (11 ms)
Tightening Torquepower circuit 35 N.mcontrol circuit 1.2 N.m, control circuit 0.6 N.m
[Uc] Control Circuit Voltage24...1000 V AC 40...400 Hz with LX1/LX9 coil, 24...460 V DC with LX4 coil, 100...250 V AC 50/60 Hz with LXE coil, 100...380 V DC with LXE coil
Connections - Terminalscontrol circuit screw clamp terminals 1 1-4 mm²flexible with cable endcontrol circuit screw clamp terminals 1 1-4 mm²control circuit screw clamp terminals 2 1-4 mm²control circuit screw clamp terminals 1.0 0.2-2.5 mm²solid without cable end, power circuit lugs-ring terminals 1 240-240 mm², power circuit bar 2 30 x 5 mm, control circuit screw clamp terminals 1 1-4 mm²flexible without cable end, control circuit screw clamp terminals 2 1-4 mm²flexible with cable end, control circuit screw clamp terminals 2 1-2.5 mm²solid without cable end, control circuit screw clamp terminals 1.0 0.2-2.5 mm²flexible without cable end, control circuit screw clamp terminals 1.0 0.25-2.5 mm²flexible with cable end
Carbon Footprint Of The Distribution Phase [A4]3.152386842, 3 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.025332231
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]3 976 kg CO2 eq., 3976.42067
Local Publishable Date2026-06-27
Stocking FlagY
Device TypeLV equipment - LV contactor
TraceabilityNo
Average Life Duration20 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Associated Fuse Rating400 A aM at <= 440 V500 A gG at <= 440 V
Compatibility CodeLC1F
Device Short NameLC1F
Inrush Power In Va300-310 VA (at 20 °C)with LXE coil600-700 VA, 40...400 Hz cos phi 0.9 (at 20 °C)with LX1/LX9 coil655-803 VA (at 20 °C)with LX4 coil300-350 VA, 50/60 Hz cos phi 0.5 (at 20 °C)with LXE coil
Mounting Supportplate
Overvoltage CategoryIII
Power Dissipation Per Pole44 W AC-1
Product NameTeSys F
Protective TreatmentTH
Range Of ProductTeSys F
Software Versionv6.1
Total Lifecycle Carbon Footprint4 056 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2023-02
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionEstablish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh4555.2
Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; China, CN
Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; China, CN
Height Nominal206 mm
[Icw] Rated Short-time Withstand Current2650 A 40 °C - 10 s1800 A 40 °C - 30 s1300 A 40 °C - 1 min900 A 40 °C - 3 min750 A 40 °C - 10 min
[Ith] Conventional Free Air Thermal Current400 A (at 40 °C)
[Uimp] Rated Impulse Withstand Voltage8 kV
Package Weight(Lbs)10.481 kg
Warranty (In Months)18
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]64305.3268

Environment Attributes Main

China Rohs Regulation
Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Ambient Air Temperature For Storage
-60-80 °C, -60-80 °C
Take Back
No
Mercury Free
Yes
Circularity Profile
ENVEOLI1505009EN
Eu Rohs Directive
Compliant By Exemption
Packaging Made With Recycled Cardboard
Yes
Permissible Ambient Air Temperature Around The Device
-40-70 °C-40-70 °C
Pep Code
ENVPEP1505009EN
Pcr Version
PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep
Independent internal review
Ambient Air Temperature For Operation-5-55 °C, -5-55 °C
Ip Degree Of ProtectionIP20 front face with shrouds IEC 60529, IP20 front face with shrouds VDE 0106
Recycled Metal Content At Cr Level0 %
Carbon Footprint4055.548064
Environmental DisclosureENVPEP1505009EN
Operating Altitude9842.52 ft (3000 m) without derating
Packaging Without Single Use PlasticNo, we have minimized the use of plastic in the packaging in compliance with regulations and considering quality and safety standards
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2024-05-01
Psr VersionPSR-0005-ed3-EN-2023 06 06

General Attributes

Product Or Component Type
contactor
Range Of ProductTeSys F

ETIM

ETIM 8
EC000066
ETIM 9EC000066

Contractual Warranty Attributes

Warranty Period
18 months
Warranty18 months
