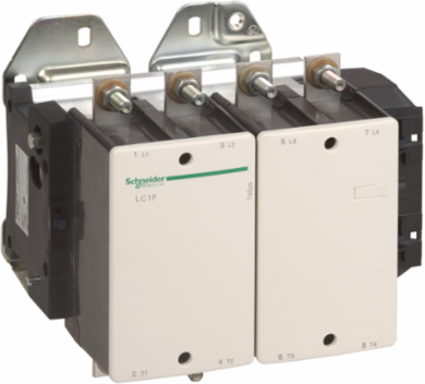

Schneider Electric LC1F4004 Contactor body without coil, TeSys F, 4P(4NO), AC-1 <=1000V 500A
- MPN: LC1F4004
- PPN: SCH-LC1F4004
CAD
$5210.41
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys F contactor, 4 poles (4NO), 500A/1000V AC-1, for non-inductive load applications. Contactor with no coil to allow a later selection and installation (coil to be ordered separately), it provides bolt terminals for bars or cables with lugs. For high operating rates until 2400 cycles/hour and environments until 55°C, it procures high reliability and durability. It makes installation and maintenance easy thanks to a drawer for insertion of the selected coil and a large choice of add-on blocks and accessories (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Czechia, France
Depth219 mm
Complementary Attributes
- Control Circuit Voltage Limits
- operational: 0.85...1.1 Uc AC 40...400 Hz with LX1/LX9 coildrop-out: 0.3...0.5 Uc AC 40...400 Hz with LX1/LX9 coiloperational: 0.85...1.1 Uc DC with LX4 coil, drop-out: 0.2...0.35 Uc DC with LX4 coil, operational: 85...275 V AC 50/60 Hz with LXE coil, drop-out: 0...60 V AC 50/60 Hz with LXE coil, operational: 85...418 V DC with LXE coil, drop-out: 0...45 V DC with LXE coil
- Maximum Operating Rate
- 2400 cyc/h 55 °C
Irms Rated Making Capacity4000 A AC conforming to IEC 60947-4-1
Rated Breaking Capacity3200 A conforming to IEC 60947-4-1
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Heat Dissipation
- 14-14 W, 2.2-5.5 W
- Mechanical Robustness
- vibrations contactor open1.5 Gn, 5...300 Hzvibrations contactor closed5 Gn, 5...300 Hzshocks contactor open6 Gn for 1/2 sine wave (11 ms), shocks contactor closed15 Gn for 1/2 sine wave (11 ms)
- Tightening Torque
- power circuit 35 N.mcontrol circuit 1.2 N.m, control circuit 0.6 N.m
- [Uc] Control Circuit Voltage
- 48...1000 V AC 40...400 Hz with LX1/LX9 coil, 48...440 V DC with LX4 coil, 100...250 V AC 50/60 Hz with LXE coil, 100...380 V DC with LXE coil
- Connections - Terminals
- control circuit screw clamp terminals 1 1-4 mm²flexible with cable endcontrol circuit screw clamp terminals 1 1-4 mm²control circuit screw clamp terminals 2 1-4 mm²control circuit screw clamp terminals 1.0 0.2-2.5 mm²solid without cable end, power circuit bar 2 30 x 5 mmpower circuit lugs-ring terminals 2 150-150 mm²control circuit screw clamp terminals 1 1-4 mm²flexible without cable end, control circuit screw clamp terminals 2 1-4 mm²flexible with cable end, control circuit screw clamp terminals 2 1-2.5 mm²solid without cable end, control circuit screw clamp terminals 1.0 0.2-2.5 mm²flexible without cable end, control circuit screw clamp terminals 1.0 0.25-2.5 mm²flexible with cable end
- Carbon Footprint Of The Distribution Phase [A4]
- 3.384667978, 3 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.027198816
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 6 041 kg CO2 eq., 6041.100634
- Local Publishable Date
- 2026-06-27
- Stocking Flag
- Y
- Device Type
- LV equipment - LV contactor
- Traceability
- No
- Average Life Duration
- 20 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Associated Fuse Rating
- 400 A aM at <= 440 V500 A gG at <= 440 V
- Compatibility Code
- LC1F
- Device Short Name
- LC1F
- Mechanical Durability
- 10 Mcycles
- Number Of Poles
- 4P
- Pole Contact Composition
- 4 NO
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Or Component Type
- contactor
- Range
- TeSys
- Returnability
- No
- Sustainable Packaging
- No
- Utilisation Category
- AC-1
- Pep Code
- ENVPEP1505009EN
- Pep Verification Date
- 2024-05-01
- Psr Version
- PSR-0005-ed3-EN-2023 06 06
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- China, CN
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2018; China, CN
- Recyclability Potential In %
- 95
- Width Nominal
- 261 mm
- [Ie] Rated Operational Current
- 500 A 40 °C) <= 440 V AC AC-1
- [Ui] Rated Insulation Voltage
- 1000 V IEC 60947-4-11500 V VDE 0110 group C
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Ecotoxicity (Fresh Water) (Ctue) Total Life Cycle
- 119330.7054
- Total Use Of Primary Energy During The Life Cycle (Mj) Total Life Cycle
- 110404.0625
- Customs Code
- 8536490065
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Inrush Power In Va1000-1150 VA, 40...400 Hz cos phi 0.9 (at 20 °C)with LX1/LX9 coil920-1140 VA (at 20 °C)with LX4 coil360-470 VA, 50/60 Hz cos phi 0.5 (at 20 °C)with LXE coil, 410-450 VA (at 20 °C)with LXE coil
Operating Time40...75 ms closing with LX1/LX9 coil100...170 ms opening with LX1/LX9 coil50...60 ms closing with LX4 coil, 45...60 ms opening with LX4 coil40...80 ms closing with LXE coil, 6...54 ms opening with LXE coil
Certificate AgencyCB, ABS, DNV, RMRoS, LROS (Lloyds register of shipping), BV, RINA, UL, CSA, UKCA
[Ue] Rated Operational Voltage<= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 460 V DC, <= 460 V DC<= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 460 V DC, <= 460 V DC
Hold-in Power Consumption In Va12-18 VA, 40...400 Hz cos phi 0.9 (at 20 °C)with LX1/LX9 coil4-7.5 VA (at 20 °C)with LX4 coil4.5-7.0 VA, 50/60 Hz cos phi 0.5 (at 20 °C)with LXE coil, 2.5-4.0 VA (at 20 °C)with LXE coil
Carbon Footprint Of The End-of-life Phase [C1 To C4]19.51139472, 20 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]62 kg CO2 eq., 62.0345717
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1505009EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2542
China Rohs In ScopeNo
Without Single Use PlasticNo, we have minimized the use of plastic in the packaging in compliance with regulations and considering quality and safety standards
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Average Impedance0.26 mOhm - Ith 500 A 50 Hz
Contactor Applicationresistive load
Energy Efficiency OptimizedFalse
Mounting Supportplate
Overvoltage CategoryIII
Power Dissipation Per Pole65 W AC-1
Product NameTeSys F
Protective TreatmentTH
Range Of ProductTeSys F
Software Versionv6.1
Total Lifecycle Carbon Footprint6 126 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2023-02
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionEstablish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh6920.4
Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; China, CN
Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; China, CN
Height Nominal206 mm
[Icw] Rated Short-time Withstand Current3600 A 40 °C - 10 s2400 A 40 °C - 30 s1700 A 40 °C - 1 min1200 A 40 °C - 3 min1000 A 40 °C - 10 min
[Ith] Conventional Free Air Thermal Current500 A (at 40 °C)
[Uimp] Rated Impulse Withstand Voltage8 kV
Package Weight(Lbs)9.648 kg
Warranty (In Months)18
Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]113926.3838
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]108026.7868
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Ambient Air Temperature For Storage
- -60-80 °C, -60-80 °C
- Take Back
- No
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI1505009EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Permissible Ambient Air Temperature Around The Device
- -40-70 °C-40-70 °C
- Pep Code
- ENVPEP1505009EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Operation-5-55 °C, -5-55 °C
Ip Degree Of ProtectionIP20 front face with shrouds IEC 60529, IP20 front face with shrouds VDE 0106
Recycled Metal Content At Cr Level0 %
Carbon Footprint6126.058467
Environmental DisclosureENVPEP1505009EN
Operating Altitude9842.52 ft (3000 m) without derating
Packaging Without Single Use PlasticNo, we have minimized the use of plastic in the packaging in compliance with regulations and considering quality and safety standards
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2024-05-01
Psr VersionPSR-0005-ed3-EN-2023 06 06
General Attributes
- Product Or Component Type
- contactor
Range Of ProductTeSys F
ETIM
- ETIM 8
- EC000066
ETIM 9EC000066
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
