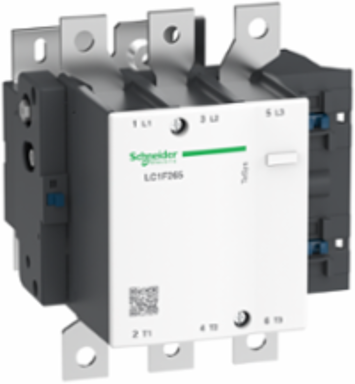

Schneider Electric LC1F265 Contactor body,TeSys F,3P(3NO)-AC-3, <=440V 265A without coil
Schneider Electric LC1F265 Contactor body,TeSys F,3P(3NO)-AC-3, <=440V 265A without coil
- MPN: LC1F265
- PPN: SCH-LC1F265
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$2585.37/ EA
Description
TeSys F contactor, 3 poles (3NO), 265A/1000V AC-3, for motor applications up to 132kW@400V. Contactor with no coil to allow a later selection and installation (coil to be ordered separately), it provides bolt terminals for bars or cables with lugs. For high operating rates until 2400 cycles/hour and environments until 55°C, it procures high reliability and durability. It makes installation and maintenance easy thanks to a drawer for insertion of the selected coil and a large choice of add-on blocks and accessories (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Specifications
Environment
- Mechanical Robustness
- vibrations contactor open2 Gn, 5...300 Hz || vibrations contactor closed5 Gn, 5...300 Hz || shocks contactor open6 Gn for 1/2 sine wave (11 ms) || shocks contactor closed15 Gn for 1/2 sine wave (11 ms)
- Height
- 203 mm
- Ambient Air Temperature For Storage
- -60-80 °C
- Ip Degree Of Protection
- IP20 front face with shrouds IEC 60529 || IP20 front face with shrouds VDE 0106
- Width
- 201.5 mm
- Permissible Ambient Air Temperature Around The Device
- -40-70 °C
Ambient Air Temperature For Operation-5-55 °C
Net Weight8.54 kg
Protective TreatmentTH
Operating Altitude3000 m without derating
Depth213 mm
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP080208EN
- Pvc Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- ENVEOLI100418
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information
Eu Rohs DirectiveCompliant with Exemptions
Complementary
- Product Certifications
- ABS || CB || DNV || RMRoS || UL || CSA || RINA || LROS (Lloyds register of shipping) || BV || UKCA
- Average Impedance
- 0.3 mOhm - Ith 350 A 50 Hz
- [Ith] Conventional Free Air Thermal Current
- 350 A (at 40 °C)
- [Ue] Rated Operational Voltage
- <= 1000 V AC-1 || <= 690 V AC-3 || <= 690 V AC-4 || <= 460 V DC
- Mounting Support
- plate
- Irms Rated Making Capacity
- 2650 A AC conforming to IEC 60947-4-1
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV
- Inrush Power In Va
- 600-700 VA, 40...400 Hz cos phi 0.9 (at 20 °C)with LX1/LX9 coil || 655-803 VA (at 20 °C)with LX4 coil || 300-350 VA, 50/60 Hz cos phi 0.5 (at 20 °C)with LXE coil || 300-310 VA (at 20 °C)with LXE coil
- Operating Time
- 40...65 ms closing with LX1/LX9 coil || 100...170 ms opening with LX1/LX9 coil || 40...50 ms closing with LX4 coil || 40...65 ms opening with LX4 coil || 40...80 ms closing with LXE coil || 6...54 ms opening with LXE coil
- Mechanical Durability
- 10 Mcycles
- Hold-In Power Consumption In Va
- 8-10 VA, 40...400 Hz cos phi 0.9 (at 20 °C)with LX1/LX9 coil || 3.68-4.53 VA (at 20 °C)with LX4 coil || 4.5-7.0 VA, 50/60 Hz cos phi 0.5 (at 20 °C)with LXE coil || 2.5-4.0 VA (at 20 °C)with LXE coil
- [Ui] Rated Insulation Voltage
- 1000 V IEC 60947-4-1 || 1500 V VDE 0110 group C
- Heat Dissipation
- 8-8 W || 2.2-2.5 W
Power Dissipation Per Pole37 W AC-1 || 21 W AC-3
Control Circuit Voltage Limitsoperational: 0.85...1.1 Uc AC 40...400 Hz with LX1/LX9 coil || drop-out: 0.35...0.55 Uc AC 40...400 Hz with LX1/LX9 coil || operational: 0.85...1.1 Uc DC with LX4 coil || drop-out: 0.15...0.2 Uc DC with LX4 coil || operational: 85...275 V AC 50/60 Hz with LXE coil || drop-out: 0...60 V AC 50/60 Hz with LXE coil || operational: 85...418 V DC with LXE coil || drop-out: 0...45 V DC with LXE coil
StandardsIEC 60947-1 || IEC 60947-4-1 || JIS C8201-4-1 || EN 60947-1 || EN 60947-4-1
[Uc] Control Circuit Voltage24...1000 V AC 40...400 Hz with LX1/LX9 coil || 24...460 V DC with LX4 coil || 100...250 V AC 50/60 Hz with LXE coil || 100...380 V with LXE coil
Rated Breaking Capacity2120 A conforming to IEC 60947-4-1
Associated Fuse Rating315 A aM at <= 440 V || 400 A gG at <= 440 V
Connections - Terminalspower circuit bar 2 32 x 4 mm || power circuit lugs-ring terminals 1 240-240 mm² || power circuit connector 1 240-240 mm² || power circuit bolted connection || control circuit screw clamp terminals 1 1-4 mm²flexible without cable end || control circuit screw clamp terminals 2 1-4 mm²flexible with cable end || control circuit screw clamp terminals 1 1-4 mm²flexible with cable end || control circuit screw clamp terminals 2 1-2.5 mm²solid without cable end || control circuit screw clamp terminals 1 1-4 mm² || control circuit screw clamp terminals 2 1-4 mm² || control circuit screw clamp terminals 1.0 0.2-2.5 mm²flexible without cable end || control circuit screw clamp terminals 1.0 0.25-2.5 mm²flexible with cable end || control circuit screw clamp terminals 1.0 0.2-2.5 mm²solid without cable end
Maximum Operating Rate2400 cyc/h 55 °C
Tightening Torquepower circuit 35 N.m || control circuit 1.2 N.m || control circuit 0.6 N.m
Compatibility CodeLC1F
Overvoltage CategoryIII
[Icw] Rated Short-Time Withstand Current2200 A 40 °C - 10 s || 1230 A 40 °C - 30 s || 950 A 40 °C - 1 min || 620 A 40 °C - 3 min || 480 A 40 °C - 10 min
Specifications
- Contactor Application
- resistive load || motor control
- Product Name
- TeSys F
- Pole Contact Composition
- 3 NO
- Utilisation Category
- AC-3 || AC-4 || AC-1
- Motor Power Kw
- 132 kW at 380...400 V AC 50/60 Hz (AC-3) || 140 kW at 415 V AC 50/60 Hz (AC-3) || 140 kW at 440 V AC 50/60 Hz (AC-3) || 147 kW at 1000 V AC 50/60 Hz (AC-3) || 160 kW at 500 V AC 50/60 Hz (AC-3) || 75 kW at 220...240 V AC 50/60 Hz (AC-3) || 160 kW at 660...690 V AC 50/60 Hz (AC-3) || 51 kW at 400 V AC 50/60 Hz (AC-4)
Product Or Component Typecontactor
RangeTeSys
[Ie] Rated Operational Current350 A 40 °C) <= 440 V AC AC-1 || 265 A 55 °C) <= 440 V AC AC-3
Poles Description3P
Device Short NameLC1F
