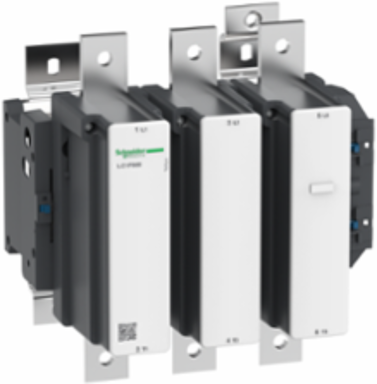

Schneider Electric LC1F800 Contactor body without coil, TeSys F, 3P(3NO), AC-3 <=440V 800A
Schneider Electric LC1F800 Contactor body without coil, TeSys F, 3P(3NO), AC-3 <=440V 800A
- MPN: LC1F800
- PPN: SCH-LC1F800
- UNSPSC: 39121529
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
TeSys F contactor, 3 poles (3NO), 800A/1000V AC-3, for motor applications up to 450kW@400V. Contactor with no coil to allow a later selection and installation (coil to be ordered separately), it provides bolt terminals for bars or cables with lugs. For high operating rates until 600 cycles/hour and environments until 55°C, it procures high reliability and durability. It makes installation and maintenance easy thanks to a drawer for insertion of the selected coil and a large choice of add-on blocks and accessories (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, Marine), Green Premium compliant (RoHS/REACh).
Features
- Later selection with no coil
- High durability: 600 cycles/hour for operating rate
- High reliability: environments tolerance up to 55°C
- Easy installation and maintenance thanks to its drawer-mounted coil and a large choice of add-on blocks
- Various fields of application with multiple standards certifications
- Green Premium product
Specifications
Conformance Attributes
- Product Certifications
- CB, CSA, LROS (Lloyds register of shipping), ABS, CCC, UL, UKCA
StandardsIEC 60947-1, JIS C8201-4-1, EN 60947-1, IEC 60947-4-1, EN 60947-4-1
Complementary Attributes
- Control Circuit Voltage Limits
- drop-out: 0.3...0.5 Uc DC with LX4 coil, operational: 0.85...1.1 Uc AC 40...400 Hz with LX1/LX9 coil, drop-out: 0.3...0.5 Uc AC 40...400 Hz with LX1/LX9 coil, operational: 0.85...1.1 Uc DC with LX4 coil, operational: 85...275 V AC 50/60 Hz with LXE coil, drop-out: 0...60 V AC 50/60 Hz with LXE coil, operational: 85...418 V DC with LXE coil, drop-out: 0...45 V DC with LXE coil
- Maximum Operating Rate
- 600 cyc/h 55 °C
IRMS Rated Making Capacity8000 A AC conforming to IEC 60947-4-1
Rated Breaking Capacity6400 A conforming to IEC 60947-4-1
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Associated Fuse Rating
- 1000 A gG at <= 440 V, 800 A aM at <= 440 V
- Heat Dissipation
- 25-25 W, 2.2-5.5 W
- Inrush Power In VA
- 1700-1700 VA, 40...400 Hz cos phi 0.9 (at 20 °C)with LX1/LX9 coil, 1900-1900 VA (at 20 °C)with LX4 coil, 460-730 VA, 50/60 Hz cos phi 0.5 (at 20 °C)with LXE coil, 500-680 VA cos phi 0.5 (at 20 °C)with LXE coil
- Motor Power KW
- 450 kW at 1000 V AC 50/60 Hz (AC-3), 450 kW at 500 V AC 50/60 Hz (AC-3), 475 kW at 660...690 V AC 50/60 Hz (AC-3), 110 kW at 400 V AC 50/60 Hz (AC-4), 450 kW at 380...400 V AC 50/60 Hz (AC-3), 450 kW at 415 V AC 50/60 Hz (AC-3), 450 kW at 440 V AC 50/60 Hz (AC-3), 250 kW at 220...240 V AC 50/60 Hz (AC-3)
- Power Dissipation Per Pole
- 120 W AC-1, 77 W AC-3
- Utilisation Category
- AC-3, AC-1, AC-4
- Ie Rated Operational Current2
- 1000 A 40 °C) <= 440 V AC AC-1, 800 A 55 °C) <= 440 V AC AC-3
- Ue Rated Operational Voltage2
- <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 460 V DC, <= 460 V DC
- Carbon Footprint Of The Distribution Phase A4
- 6.221816136, 6 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0 kg CO2 eq., 0.049997823
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 6 328 kg CO2 eq., 6327.86174
- Connections Terminals3
- power circuit bar 2 60 x 5 mm, power circuit bolted connection, control circuit screw clamp terminals 1 1-4 mm²flexible without cable end, control circuit screw clamp terminals 2 1-4 mm²flexible with cable end, control circuit screw clamp terminals 1 1-4 mm²flexible with cable end, control circuit screw clamp terminals 2 1-2.5 mm²solid without cable end, control circuit screw clamp terminals 1 1-4 mm², control circuit screw clamp terminals 2 1-4 mm²
- Ie Rated Operational Current5
- 1000 A 40 °C) <= 440 V AC AC-1, 800 A 55 °C) <= 440 V AC AC-3
- Ue Rated Operational Voltage5
- <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 460 V DC, <= 460 V DC
- Local Data Status
- Publishable
- Device Type
- LV equipment - LV contactor
- Traceability
- No
- Average Life Duration
- 20 year(s)
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1505009EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- ROHS EUR In Scope
- Yes
- ROHS EUR Full Compliance Status
- Compliant with Exemptions
- China ROHS In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- Average Impedance
- 0.12 mOhm - Ith 1000 A 50 Hz
- Device Short Name
- LC1F
- Mechanical Durability
- 5 Mcycles
- Overvoltage Category
- III
- Pole Contact Composition
- 3 NO
- Product Availability
- Stock - Normally stocked in distribution facility
- Protective Treatment
- TH
- Range Of Product
- TeSys F
- Sustainable Packaging
- No
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Uimp Rated Impulse Withstand Voltage2
- 8 kV
- Stocking Flag
- N
- Pep Code
- ENVPEP1505009EN
- Pep Verification Date
- 2024-05-01
- Psr Version
- PSR-0005-ed3-EN-2023 06 06
- Data Source
- extrapolated product
- Functional Unit Unit
- unit
- Energy Model Installation A5 2
- Electricity Mix; Low voltage; 2018; China, CN
- Energy Model End Of Life C1 C4 2
- Electricity Mix; Low voltage; 2018; China, CN
- Product Name
- TeSys F
- Uimp Rated Impulse Withstand Voltage5
- 8 kV
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Contactor Applicationmotor control, resistive load
Hold In Power Consumption In VA12-12 VA, 40...400 Hz cos phi 0.9 (at 20 °C)with LX1/LX9 coil, 12-12 VA (at 20 °C)with LX4 coil, 7-10 VA, 50/60 Hz cos phi 0.5 (at 20 °C)with LXE coil, 4.0-5.5 VA cos phi 0.5 (at 20 °C)with LXE coil
Mechanical Robustnessvibrations contactor open2 Gn, 5...300 Hz, vibrations contactor closed4 Gn, 5...300 Hz, shocks contactor open6 Gn for 1/2 sine wave (11 ms), shocks contactor closed15 Gn for 1/2 sine wave (11 ms)
Operating Time60...80 ms closing with LX1/LX9 coil, 160...180 ms opening with LX1/LX9 coil, 60...80 ms closing with LX4 coil, 40...50 ms opening with LX4 coil, 40...80 ms closing with LXE coil, 6...54 ms opening with LXE coil
Tightening Torquepower circuit 58 N.m, control circuit 1.2 N.m
Icw Rated Short Time Withstand Current22600 A 40 °C - 3 min, 5500 A 40 °C - 10 s, 4600 A 40 °C - 30 s, 3600 A 40 °C - 1 min, 1700 A 40 °C - 10 min
Uc Control Circuit Voltage2110...400 V AC 40...400 Hz with LX1/LX9 coil, 110...400 V DC with LX4 coil, 100...250 V AC 50/60 Hz with LXE coil, 100...380 V DC with LXE coil
Ui Rated Insulation Voltage21000 V IEC 60947-4-1, 1500 V VDE 0110 group C
Carbon Footprint Of The End Of Life Phase C1 To C435.86653442, 36 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A3114 kg CO2 eq., 114.0341391
Connections Terminalspower circuit bar 2 60 x 5 mm, power circuit bolted connection, control circuit screw clamp terminals 1 1-4 mm²flexible without cable end, control circuit screw clamp terminals 2 1-4 mm²flexible with cable end, control circuit screw clamp terminals 2 1-2.5 mm²solid without cable end
Icw Rated Short Time Withstand Current52600 A 40 °C - 3 min, 5500 A 40 °C - 10 s, 4600 A 40 °C - 30 s, 3600 A 40 °C - 1 min, 1700 A 40 °C - 10 min
Uc Control Circuit Voltage5110...400 V AC 40...400 Hz with LX1/LX9 coil, 110...400 V DC with LX4 coil, 100...250 V AC 50/60 Hz with LXE coil, 100...380 V DC with LXE coil
Ui Rated Insulation Voltage51000 V IEC 60947-4-1, 1500 V VDE 0110 group C
Local Publishable Date2024-11-02
ServiceabilityNo
Field Service DivisionPPIBS
Legacy WEEE ScopeIn
EOLI Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant with Exemptions
ROHS EUR Full Compliance Status IdCOMPLIANT_WITH_EXEMPTIONS
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticNo
Return IndicatorY
Function OptionStandard
Compatibility CodeLC1F
Energy Efficiency OptimizedFalse
Mounting Supportplate
Package Weight Lbs17.195 kg
Poles Description3P
Product Or Component Typecontactor
RangeTeSys
ReturnabilityYes
Total Lifecycle Carbon Footprint6 484 kg CO2 eq.
Ith Conventional Free Air Thermal Current21000 A (at 40 °C)
Medium DescContactor body without coil, TeSys F, 3P(3NO), AC-3 <=440V 800A
Product Kit IdentifierN
Database Version2023-02
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional Unit DescriptionEstablish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
Energy Model Manufacturing A1 A3 2China, CN
Energy Model Use B6 2Electricity Mix; Low voltage; 2018; China, CN
Global Commercial StatusEnd of commercialisation
Ith Conventional Free Air Thermal Current51000 A (at 40 °C)
Environment Attributes Main
- Take Back
- Nej, No
- EU ROHS Directive
- Compliant By Exemption , Compliant with Exemptions
- Permissible Ambient Air Temperature Around The Device
- -5-55 °C, -5-55 °C
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 6484.034227
- Ambient Air Temperature For Storage
- -60-80 °C
- Environmental Disclosure
- ENVPEP1505009EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2024-05-01
- Psr Version
- PSR-0005-ed3-EN-2023 06 06
China ROHS RegulationProduct out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
IP Degree Of ProtectionIP20 front face with shrouds IEC 60529, IP20 front face with shrouds VDE 0106
ROHS Exemption InformationYes
Mercury FreeYes
Ambient Air Temperature For Operation-5-55 °C
Circularity ProfileENVEOLI1505009EN
Operating Altitude9842.52 ft (3000 m) without derating
Packaging Without Single Use PlasticNo
Pep CodeENVPEP1505009EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- contactor
Range Of ProductTeSys F
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Country of Origin
- United States
Depth255 mm
