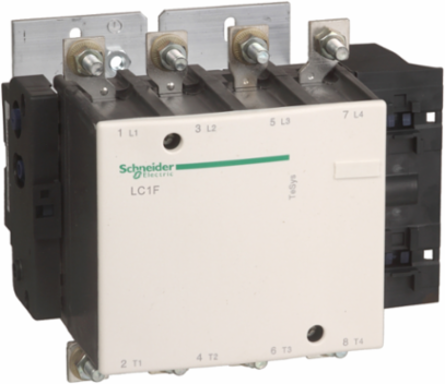

Contactor body without coil, TeSys F, 4P(4NO), AC-1 <=1000V 350A
Schneider Electric

Schneider Electric LC1F2654 Contactor body without coil, TeSys F, 4P(4NO), AC-1 <=1000V 350A

  • MPN: LC1F2654
  • PPN: SCH-LC1F2654

CAD

$4012.10

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

TeSys F contactor, 4 poles (4NO), 350A/1000V AC-1, for non-inductive load applications. Contactor with no coil to allow a later selection and installation (coil to be ordered separately), it provides bolt terminals for bars or cables with lugs. For high operating rates until 2400 cycles/hour and environments until 55°C, it procures high reliability and durability. It makes installation and maintenance easy thanks to a drawer for insertion of the selected coil and a large choice of add-on blocks and accessories (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Czechia, United States
Depth213 mm

Complementary Attributes

Control Circuit Voltage Limits
operational: 0.85...1.1 Uc AC 40...400 Hz with LX1/LX9 coildrop-out: 0.35...0.55 Uc AC 40...400 Hz with LX1/LX9 coiloperational: 0.85...1.1 Uc DC with LX4 coil, drop-out: 0.15...0.2 Uc DC with LX4 coil, operational: 85...275 V AC 50/60 Hz with LXE coil, drop-out: 0...60 V AC 50/60 Hz with LXE coil, operational: 85...418 V DC with LXE coil, drop-out: 0...45 V DC with LXE coil
Maximum Operating Rate
2400 cyc/h 55 °C
Irms Rated Making Capacity2650 A AC conforming to IEC 60947-4-1
Rated Breaking Capacity2120 A conforming to IEC 60947-4-1

Important Information Attributes

Persona Type Ids
EU, OM, OM8, PB
Market Segmentation Id
COMMERCIAL, INDUSTRIAL
Heat Dissipation
8-8 W, 2.2-2.5 W
Operating Time
40...65 ms opening with LX4 coil40...65 ms closing with LX1/LX9 coil100...170 ms opening with LX1/LX9 coil40...50 ms closing with LX4 coil40...80 ms closing with LXE coil, 6...54 ms opening with LXE coil
Certificate Agency
ABS, CB, DNV, RMRoS, UL, CSA, RINA, LROS (Lloyds register of shipping), BV, UKCA
[Ue] Rated Operational Voltage
<= 1000 V AC-1, <= 1000 V AC-1, <= 690 V AC-3, <= 690 V AC-3, <= 690 V AC-4, <= 690 V AC-4, <= 460 V DC, <= 460 V DC<= 1000 V AC-1, <= 1000 V AC-1, <= 690 V AC-3, <= 690 V AC-3, <= 690 V AC-4, <= 460 V DC, <= 460 V DC
Hold-in Power Consumption In Va
8-10 VA, 40...400 Hz cos phi 0.9 (at 20 °C)with LX1/LX9 coil3.68-4.53 VA (at 20 °C)with LX4 coil4.5-7.0 VA, 50/60 Hz cos phi 0.5 (at 20 °C)with LXE coil, 2.5-4.0 VA (at 20 °C)with LXE coil
Carbon Footprint Of The End-of-life Phase [C1 To C4]
15.215265817881278, 15 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]
166 kg CO2 eq., 166.0996328104392
Local Data Status
Publishable
Return Indicator
N
Stock Policy
2
Serviceability
No
Field Service Division
PPIBS
Weee Scope
In
Scope Perimeter
At least in Europe
End Of Life Doc Ref
ENVEOLI2405025
Reach Full Compliance Status Id
CONTAINS_SVHC
Rohs Eur In Scope
Yes
Rohs Eur Conformity Date
2538
China Rohs In Scope
No
Without Single Use Plastic
No, we have minimized the use of plastic in the packaging in compliance with regulations and considering quality and safety standards
Tier Id
1
Function Option Id
STANDARD
Product Kit Identifier
N
Average Impedance
0.3 mOhm - Ith 350 A 50 Hz
Contactor Application
resistive load
Inrush Power In Va
300-310 VA (at 20 °C)with LXE coil600-700 VA, 40...400 Hz cos phi 0.9 (at 20 °C)with LX1/LX9 coil655-803 VA (at 20 °C)with LX4 coil300-350 VA, 50/60 Hz cos phi 0.5 (at 20 °C)with LXE coil
Mounting Support
plate
Overvoltage Category
III
Power Dissipation Per Pole
37 W AC-1
Product Name
TeSys F
Protective Treatment
TH
Range Of Product
TeSys F
Software Version
v6.1
Total Lifecycle Carbon Footprint
1 799 kg CO2 eq.
Weee Label
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version
2023-02
Pcr Version
PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep
Independent internal review
Functional-unit Description
Establish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
Functional-unit Unit
unit
Energy Consumption On Product Lifetime In Kwh
3942
Energy Model - Installation [A5]
Electricity Mix; AC; consumption mix, at consumer; < 1kV; EU-27
Energy Model - End Of Life [C1-c4]
Electricity Mix; AC; consumption mix, at consumer; < 1kV; EU-27
Height Nominal
203 mm
[Icw] Rated Short-time Withstand Current
2200 A 40 °C - 10 s1230 A 40 °C - 30 s950 A 40 °C - 1 min620 A 40 °C - 3 min480 A 40 °C - 10 min
[Ith] Conventional Free Air Thermal Current
350 A (at 40 °C)
[Uimp] Rated Impulse Withstand Voltage
8 kV
Package Weight(Lbs)
8.462 kg
Warranty (In Months)
18
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Mechanical Robustnessvibrations contactor open2 Gn, 5...300 Hzvibrations contactor closed5 Gn, 5...300 Hzshocks contactor open6 Gn for 1/2 sine wave (11 ms), shocks contactor closed15 Gn for 1/2 sine wave (11 ms)
Tightening Torquepower circuit 35 N.mcontrol circuit 1.2 N.m, control circuit 0.6 N.m
[Uc] Control Circuit Voltage24...1000 V AC 40...400 Hz with LX1/LX9 coil, 24...460 V DC with LX4 coil, 100...250 V AC 50/60 Hz with LXE coil, 100...380 V with LXE coil
Connections - Terminalscontrol circuit screw clamp terminals 1 1-4 mm²flexible with cable endcontrol circuit screw clamp terminals 1 1-4 mm²control circuit screw clamp terminals 2 1-4 mm²control circuit screw clamp terminals 1.0 0.2-2.5 mm²solid without cable end, power circuit bar 2 32 x 4 mm, power circuit lugs-ring terminals 1 240-240 mm², power circuit connector 1 240-240 mm², power circuit bolted connection, control circuit screw clamp terminals 1 1-4 mm²flexible without cable end, control circuit screw clamp terminals 2 1-4 mm²flexible with cable end, control circuit screw clamp terminals 2 1-2.5 mm²solid without cable end, control circuit screw clamp terminals 1.0 0.2-2.5 mm²flexible without cable end, control circuit screw clamp terminals 1.0 0.25-2.5 mm²flexible with cable end
Carbon Footprint Of The Distribution Phase [A4]1.6480161305359229, 2 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.8 kg CO2 eq., 0.7666713974605688
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]1 616 kg CO2 eq., 1615.6950854784936
Local Publishable Date2026-06-27
Stocking FlagY
Device TypeLV equipment - LV contactor
TraceabilityNo
Average Life Duration20 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Associated Fuse Rating315 A aM at <= 440 V400 A gG at <= 440 V
Compatibility CodeLC1F
Device Short NameLC1F
Mechanical Durability10 Mcycles
Number Of Poles4P
Pole Contact Composition4 NO
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Or Component Typecontactor
RangeTeSys
ReturnabilityNo
Sustainable PackagingNo
Utilisation CategoryAC-1
Pep CodeENVPEP2405025EN
Pep Verification Date2025-08-11
Psr VersionPSR-0005-ed3-EN-2023 06 06
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Manufacturing [A1-a3]Czech Republic, CZ
Energy Model - Use [B6]Electricity Mix; AC; consumption mix, at consumer; < 1kV; EU-27
Recyclability Potential In %91
Width Nominal244.5 mm
[Ie] Rated Operational Current350 A 40 °C) <= 440 V AC AC-1
[Ui] Rated Insulation Voltage1000 V IEC 60947-4-11500 V VDE 0110 group C
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536490065

Environment Attributes Main

China Rohs Regulation
Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Ambient Air Temperature For Storage
-60-80 °C, -60-80 °C
Take Back
No
Mercury Free
Yes
Circularity Profile
ENVEOLI2405025
Eu Rohs Directive
Compliant By Exemption
Packaging Made With Recycled Cardboard
Yes
Permissible Ambient Air Temperature Around The Device
-40-70 °C-40-70 °C
Pep Code
ENVPEP2405025EN
Pcr Version
PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep
Independent internal review
Ambient Air Temperature For Operation-5-55 °C, -5-55 °C
Ip Degree Of ProtectionIP20 front face with shrouds IEC 60529, IP20 front face with shrouds VDE 0106
Recycled Metal Content At Cr Level0 %
Carbon Footprint1799.4246716348107
Environmental DisclosureENVPEP2405025EN
Operating Altitude9842.52 ft (3000 m) without derating
Packaging Without Single Use PlasticNo, we have minimized the use of plastic in the packaging in compliance with regulations and considering quality and safety standards
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-08-11
Psr VersionPSR-0005-ed3-EN-2023 06 06
