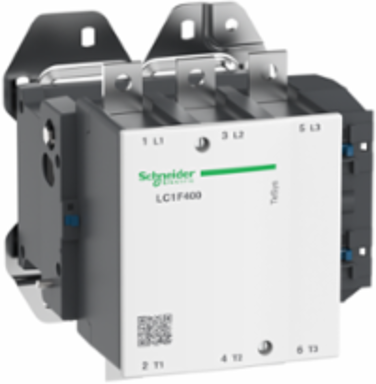

Schneider Electric LC1F400 Contactor body,TeSys F,3P(3NO), AC-3, <=440V 1100A without coil
Schneider Electric LC1F400 Contactor body,TeSys F,3P(3NO), AC-3, <=440V 1100A without coil
- MPN: LC1F400
- PPN: SCH-LC1F400
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$3895.57/ EA
Description
TeSys F contactor, 3 poles (3NO), 400A/1000V AC-3, for motor applications up to 200kW@400V. Contactor with no coil to allow a later selection and installation (coil to be ordered separately), it provides bolt terminals for bars or cables with lugs. For high operating rates until 2400 cycles/hour and environments until 55°C, it procures high reliability and durability. It makes installation and maintenance easy thanks to a drawer for insertion of the selected coil and a large choice of add-on blocks and accessories (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Specifications
Environment
- Mechanical Robustness
- vibrations contactor open1.5 Gn, 5...300 Hz || vibrations contactor closed5 Gn, 5...300 Hz || shocks contactor open6 Gn for 1/2 sine wave (11 ms) || shocks contactor closed15 Gn for 1/2 sine wave (11 ms)
- Height
- 206 mm
- Ambient Air Temperature For Storage
- -60-80 °C
- Ip Degree Of Protection
- IP20 front face with shrouds IEC 60529 || IP20 front face with shrouds VDE 0106
- Width
- 213 mm
- Permissible Ambient Air Temperature Around The Device
- -40-70 °C
Ambient Air Temperature For Operation-5-55 °C
Net Weight8 kg
Protective TreatmentTH
Operating Altitude3000 m without derating
Depth219 mm
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1505009EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Eu Rohs Directive
- Compliant with Exemptions
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1505009EN
Complementary
- Product Certifications
- CB || ABS || DNV || RMRoS || LROS (Lloyds register of shipping) || BV || RINA || UL || CSA || UKCA
- Average Impedance
- 0.26 mOhm - Ith 500 A 50 Hz
- [Ith] Conventional Free Air Thermal Current
- 500 A (at 40 °C)
- [Uc] Control Circuit Voltage
- 48...1000 V AC 40...400 Hz with LX1/LX9 coil || 48...440 V DC with LX4 coil || 100...250 V AC 50/60 Hz with LXE coil || 100...380 V DC with LXE coil
- Rated Breaking Capacity
- 3200 A conforming to IEC 60947-4-1
- Associated Fuse Rating
- 400 A aM at <= 440 V || 500 A gG at <= 440 V
- Connections - Terminals
- power circuit bar 2 30 x 5 mm || power circuit lugs-ring terminals 2 150-150 mm² || control circuit screw clamp terminals 1 1-4 mm²flexible without cable end || control circuit screw clamp terminals 2 1-4 mm²flexible with cable end || control circuit screw clamp terminals 1 1-4 mm²flexible with cable end || control circuit screw clamp terminals 2 1-2.5 mm²solid without cable end || control circuit screw clamp terminals 1 1-4 mm² || control circuit screw clamp terminals 2 1-4 mm² || control circuit screw clamp terminals 1.0 0.2-2.5 mm²flexible without cable end || control circuit screw clamp terminals 1.0 0.25-2.5 mm²flexible with cable end || control circuit screw clamp terminals 1.0 0.2-2.5 mm²solid without cable end
- Maximum Operating Rate
- 2400 cyc/h 55 °C
- Tightening Torque
- power circuit 35 N.m || control circuit 1.2 N.m || control circuit 0.6 N.m
- Compatibility Code
- LC1F
- Overvoltage Category
- III
- [Icw] Rated Short-Time Withstand Current
- 3600 A 40 °C - 10 s || 2400 A 40 °C - 30 s || 1700 A 40 °C - 1 min || 1200 A 40 °C - 3 min || 1000 A 40 °C - 10 min
Power Dissipation Per Pole65 W AC-1 || 42 W AC-3
Control Circuit Voltage Limitsoperational: 0.85...1.1 Uc AC 40...400 Hz with LX1/LX9 coil || drop-out: 0.3...0.5 Uc AC 40...400 Hz with LX1/LX9 coil || operational: 0.85...1.1 Uc DC with LX4 coil || drop-out: 0.2...0.35 Uc DC with LX4 coil || operational: 85...275 V AC 50/60 Hz with LXE coil || drop-out: 0...60 V AC 50/60 Hz with LXE coil || operational: 85...418 V DC with LXE coil || drop-out: 0...45 V DC with LXE coil
StandardsJIS C8201-4-1 || IEC 60947-4-1 || IEC 60947-1 || EN 60947-4-1 || EN 60947-1
Mounting Supportplate
Irms Rated Making Capacity4000 A AC conforming to IEC 60947-4-1
[Uimp] Rated Impulse Withstand Voltage8 kV
Inrush Power In Va1000-1150 VA, 40...400 Hz cos phi 0.9 (at 20 °C)with LX1/LX9 coil || 920-1140 VA (at 20 °C)with LX4 coil || 360-470 VA, 50/60 Hz cos phi 0.5 (at 20 °C)with LXE coil || 410-450 VA (at 20 °C)with LXE coil
Operating Time40...75 ms closing with LX1/LX9 coil || 100...170 ms opening with LX1/LX9 coil || 50...60 ms closing with LX4 coil || 45...60 ms opening with LX4 coil || 40...80 ms closing with LXE coil || 6...54 ms opening with LXE coil
Mechanical Durability10 Mcycles
Hold-In Power Consumption In Va12-18 VA, 40...400 Hz cos phi 0.9 (at 20 °C)with LX1/LX9 coil || 4-7.5 VA (at 20 °C)with LX4 coil || 4.5-7.0 VA, 50/60 Hz cos phi 0.5 (at 20 °C)with LXE coil || 2.5-4.0 VA (at 20 °C)with LXE coil
[Ui] Rated Insulation Voltage1000 V IEC 60947-4-1 || 1500 V VDE 0110 group C
Heat Dissipation14-14 W || 2.2-5.5 W
Specifications
- [Ue] Rated Operational Voltage
- <= 1000 V AC 50/60 Hz || <= 460 V DC
- Product Or Component Type
- contactor
- Range
- TeSys
- [Ie] Rated Operational Current
- 500 A 40 °C) <= 440 V AC AC-1 || 400 A 55 °C) <= 440 V AC AC-3
- Poles Description
- 3P
- Device Short Name
- LC1F
Contactor Applicationresistive load || motor control
Product NameTeSys F
Pole Contact Composition3 NO
Utilisation CategoryAC-3 || AC-1 || AC-4
Motor Power Kw185 kW at 1000 V AC 50/60 Hz (AC-3) || 200 kW at 380...400 V AC 50/60 Hz (AC-3) || 220 kW at 415 V AC 50/60 Hz (AC-3) || 250 kW at 440 V AC 50/60 Hz (AC-3) || 257 kW at 500 V AC 50/60 Hz (AC-3) || 110 kW at 220...240 V AC 50/60 Hz (AC-3) || 280 kW at 660...690 V AC 50/60 Hz (AC-3) || 75 kW at 400 V AC 50/60 Hz (AC-4)
