TeSys K Contactor, 3P, 6A, 440V, 24V DC Coil, 1 NC Auxiliary
Schneider Electric

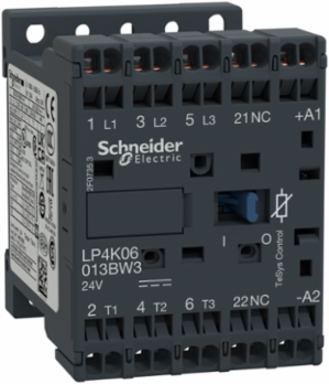

Schneider Electric LP4K06013BW3 TeSys K Contactor, 3P, 6A, 440V, 24V DC Coil, 1 NC Auxiliary

  • MPN: LP4K06013BW3
  • PPN: SCH-LP4K06013BW3

CAD

$106.46

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

With advanced engineering from Schneider Electric, this TeSys K Contactor is designed for high-performance switching in industrial applications. Featuring a robust 3-pole configuration, it handles up to 6A at 440V, making it suitable for a variety of load management tasks. The reliable 24V DC coil ensures consistent operation, while the inclusion of a normally closed auxiliary contact adds an extra layer of functionality. This contactor stands out for its efficiency and durability, providing a dependable solution for controlling motors and other equipment in demanding environments.

Documentation & Downloads

Specifications

Key Specifications

Contactor Application
motor control
Range
TeSys
Product Or Component Typecontactor
Device Short NameLP4K

Complementary

Minimum Switching Current
5 mA for signalling circuit
[Ue] Rated Operational Voltage
power circuit <= 690 V AC <= 400 Hz || signalling circuit <= 690 V AC <= 400 Hz
Average Impedance
3 mOhm - Ith 16 A 50 Hz for power circuit
Control Circuit Voltage Limits
operational: 0.7...1.3 Uc (at <50 °C) || drop-out: >= 0.10 Uc (at <50 °C)
Mounting Support
plate || rail
Safety Reliability Level
B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Insulation Resistance
> 10 MOhm for signalling circuit
Irms Rated Making Capacity
110 A AC for power circuit conforming to IEC 60947 || 110 A AC for signalling circuit conforming to IEC 60947
Associated Fuse Rating
25 A gG at <= 440 V for power circuit || 25 A aM for power circuit || 10 A gG for signalling circuit conforming to IEC 60947 || 10 A gG for signalling circuit conforming to VDE 0660
[Uimp] Rated Impulse Withstand Voltage
8 kV
Pole Contact Composition
3 NO
Utilisation Category
AC-3 || AC-3e || AC-4
Minimum Switching Voltage
17 V for signalling circuit
Electrical Durability
1.3 Mcycles 6 A AC-3 <= 440 V || 1.3 Mcycles 6 A AC-3e <= 440 V || 0.05 Mcycles 36 A AC-4 <= 440 V
Inrush Power In W
1.8-1.8 W 20 °C)
Poles Description
3P
Width
45 mm
Depth
57 mm
[Icw] Rated Short-Time Withstand Current
90 A 50 °C - 1 s for power circuit || 85 A 50 °C - 5 s for power circuit || 80 A 50 °C - 10 s for power circuit || 60 A 50 °C - 30 s for power circuit || 45 A 50 °C - 1 min for power circuit || 40 A 50 °C - 3 min for power circuit || 20 A 50 °C - >= 15 min for power circuit || 80 A - 1 s for signalling circuit || 90 A - 500 ms for signalling circuit
[Uc] Control Circuit Voltage24 V DC
Height58 mm
Auxiliary Contact Composition1 NC
[Ith] Conventional Free Air Thermal Current16 A (at 60 °C) for power circuit || 10 A (at 50 °C) for signalling circuit
Control Circuit TypeDC wide range
Hold-In Power Consumption In W1.8-1.8 W 20 °C
Rated Breaking Capacity110 A at 220...230 V conforming to IEC 60947 || 110 A at 380...400 V conforming to IEC 60947 || 110 A at 415 V conforming to IEC 60947 || 110 A at 440 V conforming to IEC 60947 || 80 A at 500 V conforming to IEC 60947 || 70 A at 660...690 V conforming to IEC 60947
Motor Power Kw1.5 kW 220...230 V AC 50/60 Hz AC-3 || 2.2 kW 380...415 V AC 50/60 Hz AC-3 || 3 kW 440/690 V AC 50/60 Hz AC-3 || 1.5 kW 220...230 V AC 50/60 Hz AC-3e || 2.2 kW 380...415 V AC 50/60 Hz AC-3e || 3 kW 440/690 V AC 50/60 Hz AC-3e || 1.5 kW 220...230 V AC 50/60 Hz AC-4 || 2.2 kW 380...415 V AC 50/60 Hz AC-4 || 3 kW 440/690 V AC 50/60 Hz AC-4
Net Weight0.235 kg
Connections - Terminalsspring terminals 1 0.75-1.5 mm²solid || spring terminals 1 0.75-1.5 mm²flexible without cable end || spring terminals 2 0.75-1.5 mm²flexible without cable end
Coil Technologybuilt-in bidirectional peak limiting diode suppressor
[Ie] Rated Operational Current6 A (at <60 °C) at <= 440 V AC AC-3 for power circuit || 6 A (at <60 °C) at <= 440 V AC AC-3e for power circuit
Maximum Operating Rate3600 cyc/h
Mechanical Durability30 Mcycles
Auxiliary Contacts Typeinstantaneous 1 NC
Operating Time10...20 ms coil de-energisation and NO opening || 30...40 ms coil energisation and NO closing
Overvoltage CategoryIII
[Ui] Rated Insulation Voltagepower circuit 600 V UL 508 || power circuit 690 V IEC 60947-4-1 || signalling circuit 690 V IEC 60947-4-1 || signalling circuit 690 V IEC 60947-5-1 || signalling circuit 600 V UL 508 || power circuit 600 V CSA C22.2 No 14 || signalling circuit 600 V CSA C22.2 No 14
Heat Dissipation1.8-1.8 W

Environment

Product Certifications
CB Scheme || CCC || UL || CSA || EAC || CE || UKCA
Standards
EN/IEC 60947-4-1 || EN/IEC 60947-5-1 || UL 60947-4-1 || UL 60947-5-1 || CSA C22.2 No 60947-4-1 || CSA C22.2 No 60947-5-1 || GB/T 14048.4
Ambient Air Temperature For Storage
-50-80 °C
Operating Altitude
2000 m without derating
Ambient Air Temperature For Operation-25-50 °C
Flame RetardanceV1 UL 94 || requirement 2 NF F 16-101 || requirement 2 NF F 16-102
Ip Degree Of ProtectionIP2X

Contractual warranty

Warranty
18 months

Offer Sustainability

Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP1503003EN
Toxic Heavy Metal Free
Yes
Reach Free Of Svhc
Yes
China Rohs Regulation
Pro-active China RoHS declaration (out of China RoHS legal scope)
Eu Rohs Directive
Compliant
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1503003EN
