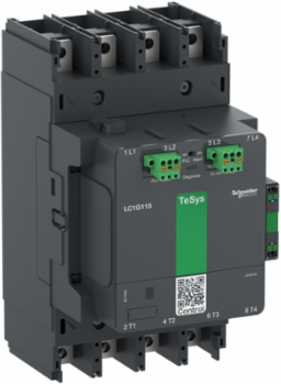

Schneider Electric LC1G1854EHEA Contactor, high power, TeSys Giga, advanced version, AC-1, <= 440V, 305A, 4 pole/NO, 48-130VAC/DC coil

Contactor, high power, TeSys Giga, advanced version, AC-1, <= 440V, 305A, 4 pole/NO, 48-130VAC/DC coil
  • MPN: LC1G1854EHEA
  • PPN: SCH-LC1G1854EHEA
  • UNSPSC: 39121529

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$2436.48/ EA

Description

Contactor, high power, TeSys Giga, advanced version, AC-1, <= 440V, 305A, 4 pole/NO, 48-130VAC/DC coil

Features

  • Designed to meet needs of demanding applications built-in with advanced features and functionalities
  • Less number of references, simple to select, choose means less inventory
  • Cable memory kit, saves downtime and improves productivity by performing quick maintenance
  • Overload relay built in ground fault protection, phase imbalance/failure protection and protection of single phase loads
  • Coil designed for less energy consumption and wider voltage band-width
  • Auxiliary contacts is highly reliable and suitable for 17V 1mA to address more challenging specific control applications
  • Advanced Local & Remote Contact Wear Diagnostic feature for predictive maintenance
  • Modularity design and compact size for easy maintenance, short down times and less installation space consumption
  • Robust control solutions for AC-3 applications up to 800 A (450kW) and AC-1 applications up to 1050 A
  • Unique QR code, quick access to complete product data, technical video, anti-counterfeit checking

Specifications

Physical Attributes

Color
dark grey

Conformance Attributes

Product Certifications
CB Scheme, CCC, cULus, EAC, CE, UKCA, EU-RO-MR by DNV-GL
StandardsEN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 60947-4-1, CSA C22.2 No 60947-4-1, JIS C8201-4-1, JIS C8201-5-1, UL 60335-1, UL 60335-2-40:Annex JJ

Complementary Attributes

Control Circuit Voltage Limits
operational: 0.8 Uc Min...1.1 Uc Max (at <60 °C), drop-out: 0.1 Uc Max...0.45 Uc Min (at <60 °C)
Maximum Operating Rate
600 cyc/h AC-3, 600 cyc/h AC-3e, 300 cyc/h AC-1
Maximum Motor Phase Current
185 A
Maximum Horse Power Rating50 hp at 200/208 V 60 Hz, 60 hp at 230/240 V 60 Hz, 125 hp at 460/480 V 60 Hz, 150 hp at 575/600 V 60 Hz
IRMS Rated Making Capacity2310 A at 440 V
Rated Breaking Capacity1610 A at 440 V

Important Information Attributes

Persona Type Ids
EU, OM, OM8, PB
Market Segmentation Id
COMMERCIAL, INDUSTRIAL
Associated Fuse Rating
200 A aM at <= 440 V for motor, 160 A aM at <= 690 V for motor, 315 A gG at <= 690 V, 300 A UL Type J at <= 600 V
Operating Time
40...70 ms closing, 15...50 ms opening
Safety Reliability Level
B10d = 400000 cycles contactor with nominal load EN/ISO 13849-1, B10d = 3000000 cycles contactor with mechanical load EN/ISO 13849-1
Icw Rated Short Time Withstand Current2
1.5 kA - 10 s, 0.92 kA - 30 s, 0.74 kA - 1 min, 0.5 kA - 3 min, 0.4 kA - 10 min
Uc Control Circuit Voltage2
48...130 V, 48...130 V AC 50/60 Hz, 48...130 V DC
Carbon Footprint Of The Distribution Phase A4
2.023190761205306, 2 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A3
39 kg CO2 eq., 38.70912627741082
Connections Terminals
power circuit: bar 2 - busbar cross section: 25 x 6 mm, power circuit: lugs-ring terminals 1 185-185 mm², power circuit: bolted connection, control circuit: push-in 1 0.2-2.5 mm² - cable stiffness: solid stranded without cable end, control circuit: push-in 1 0.25-2.5 mm² - cable stiffness: flexible with cable end, control circuit: push-in 2 0.5-1.0 mm² with cable end, control circuit: push-in 0.75-2.5 mm² - cable stiffness: solid stranded without cable end
Icw Rated Short Time Withstand Current5
1.5 kA - 10 s, 0.92 kA - 30 s, 0.74 kA - 1 min, 0.5 kA - 3 min, 0.4 kA - 10 min
Uc Control Circuit Voltage5
48...130 V AC 50/60 Hz, 48...130 V DC
Local Data Status
Publishable
Device Type
LV equipment - LV contactor
Traceability
Yes
Average Life Duration
20 year(s)
Legacy WEEE Scope
In
EOLI Availability Display
Yes
Reach Full Compliance Status
Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive
Reference contains Substances of Very High Concern above the threshold
ROHS EUR Status
Compliant with Exemptions
ROHS EUR Full Compliance Status Id
COMPLIANT_WITH_EXEMPTIONS
Green Premium Status For Reporting
Green Premium product
Without Single Use Plastic
Yes
Return Indicator
Y
Function Option
Standard
Coil Technology
built-in bidirectional peak limiting
Connection Pitch
35 mm
Device Short Name
LC1G
Halogen Free Status
Halogen free plastic parts product
Hold In Power Consumption In W
5.0-5.0 W
Inrush Power In W
190 W
Mounting Support
plate
Package Weight Lbs
6.377 kg
Poles Description
4P
Product Or Component Type
contactor
Range
TeSys
Returnability
Yes
Tightening Torque
18 N.m
Weee Label
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Ui Rated Insulation Voltage2
1000 V
Medium Desc
Contactor, high power, TeSys Giga, advanced version, AC-1, <= 440V, 305A, 4 pole/NO, 48-130VAC/DC coil
Product Kit Identifier
N
Rated Thermal Current Ith3
305 A
Database Version
2022-01
Pcr Version
PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep
Independent internal review
Functional Unit Description
Switch on and off during 20 years electrical power supply of a downstream installation with an electrical and/or mechanical control. The functional unit is characterized by a type 3P(NO), a control circuit voltage 100V-250V AC/DC, a power circuit voltage 1000V AC and a rated operational current 225A.
Energy Model Manufacturing A1 A3 2
Electricity Mix; Production mix; Low voltage; CN
Energy Model Use B6 2
Electricity Mix; Production mix; Low voltage; CN
Global Commercial Status
Commercialised
Ui Rated Insulation Voltage5
1000 V
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Mechanical Robustnessvibrations 5-300 Hz 2 gn contactor open, vibrations 5-300 Hz 4 gn contactor closed, shocks 10 gn 11 ms contactor open, shocks 15 gn 11 ms contactor closed
Power Dissipation Per Pole20 W AC-1 - Ith 305 A, 6 W AC-3 - Ith 185 A
Utilisation CategoryAC-3, AC-3e, AC-1, AC-5a, AC-5b, AC-6a, AC-6b, DC-1, DC-3, DC-5
Ie Rated Operational Current2185 A (at <60 °C) at <= 440 V AC-3, 305 A (at <40 °C) at <= 1000 V AC-1
Ue Rated Operational Voltage2<= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 460 V DC, <= 460 V DC
Carbon Footprint Of The End Of Life Phase C1 To C414.816455843232655, 15 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B61 912 kg CO2 eq., 1911.7499999999998
Connections Terminals3power circuit: bar 2 - busbar cross section: 25 x 6 mm, power circuit: lugs-ring terminals 1 185-185 mm², power circuit: bolted connection, control circuit: push-in 1 0.2-2.5 mm² - cable stiffness: solid stranded without cable end, control circuit: push-in 1 0.25-2.5 mm² - cable stiffness: flexible with cable end, control circuit: push-in 2 0.5-1.0 mm² with cable end, control circuit: push-in 0.75-2.5 mm² - cable stiffness: solid stranded without cable end, control circuit: push-in 0.75-2.5 mm² - cable stiffness: flexible with cable end
Ie Rated Operational Current5185 A (at <60 °C) at <= 440 V AC-3, 305 A (at <40 °C) at <= 1000 V AC-1
Ue Rated Operational Voltage5<= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 460 V DC, <= 460 V DC
Local Publishable Date2025-12-16
ServiceabilityNo
Field Service DivisionPPIBS
WEEE ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2105013
Reach Full Compliance Status IdCONTAINS_SVHC
ROHS EUR In ScopeYes
ROHS EUR Full Compliance StatusCompliant with Exemptions
China ROHS In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Average Impedance0.00017 Ohm
Compatibility CodeLC1G
Contactor Applicationpower switching
Electrical Durability300 cycles AC-1 400 V
Hold In Power Consumption In VA8.9-8.9 VA
Inrush Power In VA260-260 VA
Mechanical Durability8 Mcycles
Overvoltage CategoryIII
Pole Contact Composition4 NO
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Protective TreatmentTH
Range Of ProductTeSys Giga
Sustainable PackagingYes
Total Lifecycle Carbon Footprint1 967 kg CO2 eq.
Ith Conventional Free Air Thermal Current2305 A (at 40 °C)
Uimp Rated Impulse Withstand Voltage28 kV
Stocking FlagY
Rated Thermal Current Ith2305 A
Pep CodeENVPEP2105013EN
Pep Verification Date2025-06-17
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional Unit UnitUnit
Energy Model Installation A5 2Electricity Mix; Production mix; Low voltage; CN
Energy Model End Of Life C1 C4 2Electricity Mix; Production mix; Low voltage; CN
Ith Conventional Free Air Thermal Current5305 A (at 40 °C)
Uimp Rated Impulse Withstand Voltage58 kV

Environment Attributes Main

Take Back
Nej, No
EU ROHS Directive
Compliant By Exemption , Compliant with Exemptions
Permissible Ambient Air Temperature Around The Device
-40-70 °C at Uc, -40-70 °C at Uc, -40-70 °C at Uc, -40-70 °C at Uc
Halogene Performance
Halogen free plastic parts product
Mercury Free
Yes
Ambient Air Temperature For Operation
-25-60 °C
Circularity Profile
ENVEOLI2105013
Halogen Content Performance
Halogen free plastic parts product
Packaging Without Single Use Plastic
Yes
Pep Code
ENVPEP2105013EN
Pcr Version
PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep
Independent internal review
China ROHS RegulationProduct out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
IP Degree Of ProtectionIP2X front face with shrouds IEC 60529, IP2X front face with shrouds VDE 0106
ROHS Exemption InformationYes
Recycled Metal Content At Cr Level0 %
Carbon Footprint1967.2987728818487
Ambient Air Temperature For Storage-60-80 °C
Environmental DisclosureENVPEP2105013EN
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-06-17
Psr VersionPSR-0005-ed2-2016 03 29

General Attributes

Product Or Component Type
contactor
Range Of ProductTeSys Giga

Specifications

Depth
193 mm
