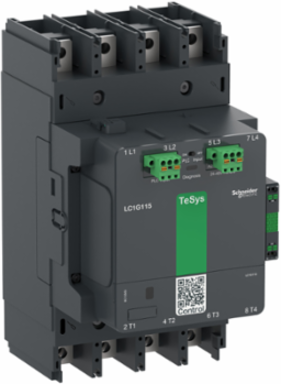

Schneider Electric LC1G2254EHEA Contactor, high power, TeSys Giga, advanced version, AC-1, <= 440V, 330A, 4 pole/NO, 48-130VAC/DC coil
Schneider Electric LC1G2254EHEA Contactor, high power, TeSys Giga, advanced version, AC-1, <= 440V, 330A, 4 pole/NO, 48-130VAC/DC coil
- MPN: LC1G2254EHEA
- PPN: SCH-LC1G2254EHEA
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$3116.57/ EA
Description
Contactor, high power, TeSys Giga, advanced version, AC-1, <= 440V, 330A, 4 pole/NO, 48-130VAC/DC coil
Specifications
Physical Attributes
- Color
- dark grey
Complementary Attributes
- Control Circuit Voltage Limits
- operational: 0.8 Uc Min...1.1 Uc Max (at <60 °C), drop-out: 0.1 Uc Max...0.45 Uc Min (at <60 °C)
- Maximum Operating Rate
- 600 cyc/h AC-3, 600 cyc/h AC-3e, 300 cyc/h AC-1
- Ie Rated Operational Current
- 225 A (at <60 °C) at <= 440 V AC-3, 330 A (at <40 °C) at <= 1000 V AC-1
- Ue Rated Operational Voltage
- <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 460 V DC, <= 460 V DC<= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 460 V DC, <= 460 V DC
- Maximum Motor Phase Current
- 225 A
- Ui Rated Insulation Voltage
- 1000 V
Maximum Horse Power Rating60 hp at 200/208 V 60 Hz, 75 hp at 230/240 V 60 Hz, 150 hp at 460/480 V 60 Hz, 150 hp at 575/600 V 60 Hz
Icw Rated Short Time Withstand Current1.8 kA - 10 s, 1.0 kA - 30 s, 0.85 kA - 1 min, 0.56 kA - 3 min, 0.44 kA - 10 min
Uc Control Circuit Voltage48...130 V, 48...130 V AC 50/60 Hz, 48...130 V DC
Irms Rated Making Capacity2720 A at 440 V
Rated Breaking Capacity2050 A at 440 V
Uimp Rated Impulse Withstand Voltage8 kV
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Associated Fuse Rating
- 250 A aM at <= 440 V for motor, 200 A aM at <= 690 V for motor, 400 A gG at <= 690 V, 400 A UL Type J at <= 600 V
- Connection Pitch
- 35 mm
- Mounting Support
- plate
- Poles Description
- 4P
- Product Or Component Type
- contactor
- Range
- TeSys
- Tightening Torque
- 18 N.m
- Connections Terminals
- control circuit: push-in 0.75-2.5 mm² - cable stiffness: flexible with cable endpower circuit: bar 2 - busbar cross section: 25 x 6 mm, power circuit: lugs-ring terminals 1 185-185 mm², power circuit: bolted connection, control circuit: push-in 1 0.2-2.5 mm² - cable stiffness: solid stranded without cable end, control circuit: push-in 1 0.25-2.5 mm² - cable stiffness: flexible with cable end, control circuit: push-in 2 0.5-1.0 mm² with cable end, control circuit: push-in 0.75-2.5 mm² - cable stiffness: solid stranded without cable end
- Ie Rated Operational Current
- 225 A (at <60 °C) at <= 440 V AC-3, 330 A (at <40 °C) at <= 1000 V AC-1
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 9.395443049423022, 9 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 59 kg CO2 eq., 59.00978428886907
- Control Circuit Voltage
- 48...130 V
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2105013
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2121
- China Rohs In Scope
- No
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Compatibility Code
- LC1G
- Device Short Name
- LC1G
- Halogen Free Status
- Halogen free plastic parts product
- Hold In Power Consumption In W
- 5.0-5.0 W
- Inrush Power In W
- 190 W
- Number Of Modules Per Plc Per Pc
- 1
- Pole Contact Composition
- 4 NO
- Range Of Product
- TeSys Giga
- Software Version
- v6.2.4
- Total Lifecycle Carbon Footprint
- 1 888 kg CO2 eq.
- Ith Conventional Free Air Thermal Current
- 330 A (at 40 °C)
- Warranty In Months
- 18
- Pep Code
- ENVPEP2105013EN
- Pep Verification Date
- 2026-03-19
- Psr Version
- PSR-0005-ed3-2023 06 06
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; China, CN
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; China, CN
- Recyclability Potential, In %
- 55
- Pn
- 1
- Width Nominal
- 143 mm
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Coil Technologybuilt-in bidirectional peak limiting
Mechanical Robustnessvibrations 5-300 Hz 2 gn contactor open, vibrations 5-300 Hz 4 gn contactor closed, shocks 10 gn 11 ms contactor open, shocks 15 gn 11 ms contactor closed
Operating Time40...70 ms closing, 15...50 ms opening
Power Dissipation Per Pole20 W AC-1 - Ith 330 A, 8 W AC-3 - Ith 225 A
Protective TreatmentTH
Safety Reliability LevelB10d = 400000 cycles contactor with nominal load EN/ISO 13849-1, B10d = 3000000 cycles contactor with mechanical load EN/ISO 13849-1
Utilisation CategoryAC-3, AC-3e, AC-1, AC-5a, AC-5b, AC-6a, AC-6b, DC-1, DC-3, DC-5
Icw Rated Short Time Withstand Current1.8 kA - 10 s, 1.0 kA - 30 s, 0.85 kA - 1 min, 0.56 kA - 3 min, 0.44 kA - 10 min
Carbon Footprint Of The Distribution Phase A410.695330640751129, 11 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.1 kg CO2 eq., 0.0885738398715266
Carbon Footprint Of The Use Phase B2 B3 B4 B61 809 kg CO2 eq., 1809.2233103866772
Certificate AgencyCB Scheme, CCC, cULus, EAC, CE, UKCA, EU-RO-MR by DNV-GL
Local Publishable Date2026-04-12
Stocking FlagN
Device TypeLV equipment - LV contactor
TraceabilityYes
Average Life Duration20 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Average Impedance0.00015 Ohm
Contactor Applicationpower switching
Electrical Durability300 cycles AC-1 400 V
Hold In Power Consumption In Va8.9-8.9 VA
Inrush Power In Va260-260 VA
Mechanical Durability8 Mcycles
Overvoltage CategoryIII
Product AvailabilityStock - Normally stocked in distribution facility
ReturnabilityYes
Sustainable PackagingYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Rated Thermal Current Ith330 A
Rated Thermal Current Hv330 A
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionEstablish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
Functional-unit Unitunit
Energy Consumption On Product Lifetime, In Kwh2190
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Offer Owner Code190788
Height Nominal255 mm
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Ambient Air Temperature For Storage
- -60-80 °C, -60-80 °C
- Permissible Ambient Air Temperature Around The Device
- -40-70 °C at Uc, -40-70 °C at Uc-40-70 °C at Uc, -40-70 °C at Uc
- Halogene Performance
- Halogen free plastic parts product
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2105013
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2026-03-19
- Psr Version
- PSR-0005-ed3-2023 06 06
Ambient Air Temperature For Operation-25-60 °C, -25-60 °C
Ip Degree Of ProtectionIP2X front face with shrouds IEC 60529, IP2X front face with shrouds VDE 0106
Take BackNo
Recycled Metal Content At Cr Level0 %
Carbon Footprint1888.4124422055918
Environmental DisclosureENVPEP2105013EN
Halogen Content PerformanceHalogen free plastic parts product
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2105013EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- contactor
Range Of ProductTeSys Giga
ETIM
- ETIM 8
- EC000066
ETIM 9EC000066
Specifications
- Country of Origin
- Brazil, China, Czechia, France, United States
Depth193 mm
