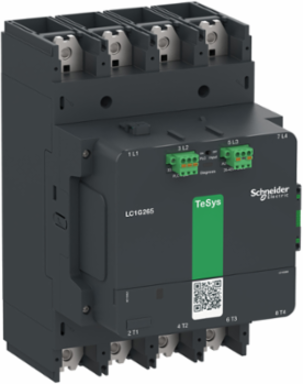

Schneider Electric LC1G5004EHEA Contactor, high power, TeSys Giga, advanced version, AC-1, <= 440V, 700A, 4 pole/NO, 48-130VAC/DC coil
- MPN: LC1G5004EHEA
- PPN: SCH-LC1G5004EHEA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Contactor, high power, TeSys Giga, advanced version, AC-1, <= 440V, 700A, 4 pole/NO, 48-130VAC/DC coil
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Czechia, France
Depth226 mm
Physical Attributes
- Color
- dark grey
Complementary Attributes
- Control Circuit Voltage Limits
- operational: 0.8 Uc Min...1.1 Uc Max (at <60 °C), drop-out: 0.1 Uc Max...0.45 Uc Min (at <60 °C)
- Maximum Operating Rate
- 600 cyc/h AC-3, 600 cyc/h AC-3e, 300 cyc/h AC-1
- Maximum Motor Phase Current
- 500 A
Maximum Horse Power Rating150 hp at 200/208 V 60 Hz, 200 hp at 230/240 V 60 Hz, 400 hp at 460/480 V 60 Hz, 450 hp at 575/600 V 60 Hz
Irms Rated Making Capacity5090 A at 440 V
Rated Breaking Capacity4600 A at 440 V
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Associated Fuse Rating
- 500 A aM at <= 440 V for motor, 400 A aM at <= 690 V for motor, 800 A gG at <= 690 V, 600 A UL Type L at <= 600 V
- Operating Time
- 40...70 ms closing, 15...50 ms opening
- Safety Reliability Level
- B10d = 400000 cycles contactor with nominal load EN/ISO 13849-1, B10d = 3000000 cycles contactor with mechanical load EN/ISO 13849-1
- Certificate Agency
- CB Scheme, CCC, cULus, EAC, CE, UKCA, EU-RO-MR by DNV-GL
- [Ie] Rated Operational Current
- 500 A (at <60 °C) at <= 440 V AC-3, 700 A (at <40 °C) at <= 1000 V AC-1
- [Ue] Rated Operational Voltage
- <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 460 V DC, <= 460 V DC<= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 460 V DC, <= 460 V DC
- Carbon Footprint Of The Distribution Phase [A4]
- 14.860524144493514, 15 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.1 kg CO2 eq., 0.12306806869215996
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 3 329 kg CO2 eq., 3328.9708911114863
- Local Publishable Date
- 2026-02-11
- Stocking Flag
- Y
- Device Type
- LV equipment - LV contactor
- Traceability
- Yes
- Average Life Duration
- 20 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Average Impedance
- 0.00008 Ohm
- Compatibility Code
- LC1G
- Contactor Application
- power switching
- Electrical Durability
- 300 cycles AC-1 400 V
- Inrush Power In W
- 360 W
- Mounting Support
- plate
- Number Of Poles
- 4P
- Pole Contact Composition
- 4 NO
- Product Or Component Type
- contactor
- Range
- TeSys
- Returnability
- No
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 3 439 kg CO2 eq.
- Control Circuit Voltage
- 48...130 V
- Pep Code
- ENVPEP2105013EN
- Pep Verification Date
- 2026-03-19
- Psr Version
- PSR-0005-ed3-2023 06 06
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; China, CN
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; China, CN
- Recyclability Potential, In %
- 55
- Width Nominal
- 185 mm
- [Ui] Rated Insulation Voltage
- 1000 V
- Hold-in Power Consumption In Va
- 11.7-11.7 VA
- Rated Thermal Current (Ith)
- 700 A
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Mechanical Robustnessvibrations 5-300 Hz 2 gn contactor open, vibrations 5-300 Hz 4 gn contactor closed, shocks 10 gn 11 ms contactor open, shocks 15 gn 11 ms contactor closed
Power Dissipation Per Pole40 W AC-1 - Ith 700 A, 20 W AC-3 - Ith 500 A
Utilisation CategoryAC-3, AC-3e, AC-1, AC-5a, AC-5b, AC-6a, AC-6b, DC-1, DC-3, DC-5
[Icw] Rated Short-time Withstand Current4.0 kA - 10 s, 2.8 kA - 30 s, 2.2 kA - 1 min, 1.5 kA - 3 min, 1.2 kA - 10 min
[Uc] Control Circuit Voltage48...130 V, 48...130 V AC 50/60 Hz, 48...130 V DC
Connections - Terminalscontrol circuit: push-in 0.75-2.5 mm² - cable stiffness: flexible with cable endpower circuit: bar 2 - busbar cross section: 32 x 10 mm, power circuit: lugs-ring terminals 1 185-185 mm², power circuit: bolted connection, control circuit: push-in 1 0.2-2.5 mm² - cable stiffness: solid stranded without cable end, control circuit: push-in 1 0.25-2.5 mm² - cable stiffness: flexible with cable end, control circuit: push-in 2 0.5-1.0 mm² with cable end, control circuit: push-in 0.75-2.5 mm² - cable stiffness: solid stranded without cable end
Carbon Footprint Of The End-of-life Phase [C1 To C4]13.054407850859956, 13 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]82 kg CO2 eq., 81.99057641517732
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2105013
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2121
China Rohs In ScopeNo
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Coil Technologybuilt-in bidirectional peak limiting
Connection Pitch45 mm
Device Short NameLC1G
Inrush Power In Va450-450 VA
Mechanical Durability8 Mcycles
Number Of Modules Per Plc Per Pc1
Overvoltage CategoryIII
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Protective TreatmentTH
Range Of ProductTeSys Giga
Software Versionv6.2.4
Tightening Torque35 N.m
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Rated Thermal Current Hv700 A
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionEstablish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
Functional-unit Unitunit
Energy Consumption On Product Lifetime, In Kwh4029.6
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal290 mm
[Ith] Conventional Free Air Thermal Current700 A (at 40 °C)
[Uimp] Rated Impulse Withstand Voltage8 kV
Hold-in Power Consumption In W8.3-8.3 W
Halogen-free StatusHalogen free plastic parts product
Package Weight(Lbs)11.929 kg
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Ambient Air Temperature For Storage
- -60-80 °C, -60-80 °C
- Permissible Ambient Air Temperature Around The Device
- -40-70 °C at Uc, -40-70 °C at Uc-40-70 °C at Uc, -40-70 °C at Uc
- Halogene Performance
- Halogen free plastic parts product
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2105013
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2026-03-19
- Psr Version
- PSR-0005-ed3-2023 06 06
Ambient Air Temperature For Operation-25-60 °C, -25-60 °C
Ip Degree Of ProtectionIP2X front face with shrouds IEC 60529, IP2X front face with shrouds VDE 0106
Take BackNo
Recycled Metal Content At Cr Level0 %
Carbon Footprint3438.999467590709
Environmental DisclosureENVPEP2105013EN
Halogen Content PerformanceHalogen free plastic parts product
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2105013EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- contactor
Range Of ProductTeSys Giga
ETIM
- ETIM 8
- EC000066
ETIM 9EC000066
