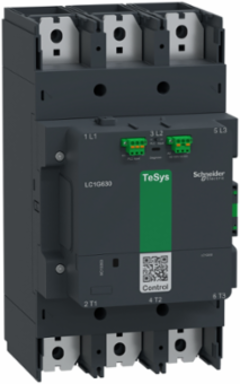

Schneider Electric LC1G630LSEA Contactor, high power, TeSys Giga, advanced version, AC-3, <= 440V, 630A, 3 pole/NO, 200-500VAC/DC coil

MPN: LC1G630LSEA
PPN: SCH-LC1G630LSEA

Spec sheet

Compare

Loading compare button...

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

Description

Contactor, high power, TeSys Giga, advanced version, AC-3, <= 440V, 630A, 3 pole/NO, 200-500VAC/DC coil

Specifications

Physical Attributes

Color: dark grey

Conformance Attributes

Product Certifications: CB Scheme, CCC, cULus, EAC, CE, UKCA, EU-RO-MR by DNV-GL

StandardsEN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 60947-4-1, CSA C22.2 No 60947-4-1, JIS C8201-4-1, JIS C8201-5-1, IEC 60335-1:Clause 30.2, IEC 60335-2-40:Annex JJ, UL 60335-1, UL 60335-2-40:Annex JJ

Complementary Attributes

Control Circuit Voltage Limits: operational: 0.8 Uc Min...1.1 Uc Max (at <60 °C), drop-out: 0.1 Uc Max...0.45 Uc Min (at <60 °C)

Maximum Operating Rate: 600 cyc/h AC-3, 600 cyc/h AC-3e, 300 cyc/h AC-1, 150 cyc/h AC-4

Ie Rated Operational Current: 1050 A (at <40 °C) at <= 1000 V AC-1, 630 A (at <60 °C) at <= 440 V AC-3

Ue Rated Operational Voltage: <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 460 V DC, <= 460 V DC, <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 460 V DC, <= 460 V DC

Rated Breaking Capacity: 5550 A at 440 V

Uimp Rated Impulse Withstand Voltage: 8 kV

Maximum Horse Power Rating250 hp at 200/208 V 60 Hz, 300 hp at 230/240 V 60 Hz, 600 hp at 460/480 V 60 Hz, 700 hp at 575/600 V 60 Hz

Icw Rated Short Time Withstand Current5.05 kA - 10 s, 4.4 kA - 30 s, 3.4 kA - 1 min, 2.2 kA - 3 min, 1.6 kA - 10 min

Uc Control Circuit Voltage200...500 V, 200...500 V AC 50/60 Hz, 200...500 V DC

Maximum Motor Phase Current630 A

Ui Rated Insulation Voltage1000 V

Important Information Attributes

Persona Type Ids: EU, OM, OM8, PB

Market Segmentation Id: COMMERCIAL, INDUSTRIAL

Associated Fuse Rating: 630 A aM at <= 440 V for motor, 500 A aM at <= 690 V for motor, 1250 A gG at <= 690 V, 1000 A UL Type L at <= 600 V

Electrical Durability: 300 cycles AC-1 400 V, 500 cycles AC-3 400 V, 500 cycles AC-3e 400 V, 150 cycles AC-4 400 V

Motor Power Kw: 335 kW at 400 V AC 50/60 Hz (AC-3), 375 kW at 415 V AC 50/60 Hz (AC-3), 400 kW at 500 V AC 50/60 Hz (AC-3), 500 kW at 690 V AC 50/60 Hz (AC-3), 450 kW at 1000 V AC 50/60 Hz (AC-3), 315 kW at 400 V AC 50/60 Hz (AC-4), 335 kW at 415 V AC 50/60 Hz (AC-4), 355 kW at 440 V AC 50/60 Hz (AC-4), 375 kW at 500 V AC 50/60 Hz (AC-4), 450 kW at 690 V AC 50/60 Hz (AC-4), 355 kW at 1000 V AC 50/60 Hz (AC-4), 180 kW at 230 V AC 50/60 Hz (AC-3e), 315 kW at 400 V AC 50/60 Hz (AC-3e), 335 kW at 415 V AC 50/60 Hz (AC-3e), 355 kW at 440 V AC 50/60 Hz (AC-3e), 375 kW at 500 V AC 50/60 Hz (AC-3e), 500 kW at 690 V AC 50/60 Hz (AC-3e), 450 kW at 1000 V AC 50/60 Hz (AC-3e), 200 kW at 230 V AC 50/60 Hz (AC-3), 400 kW at 440 V AC 50/60 Hz (AC-3), 180 kW at 230 V AC 50/60 Hz (AC-4)

Power Dissipation Per Pole: 70 W AC-1 - Ith 1050 A, 26 W AC-3 - Ith 630 A

Utilisation Category: AC-1, AC-3, AC-3e, AC-4, AC-5a, AC-5b, AC-6a, AC-6b, AC-8b, AC-8a, DC-1, DC-3, DC-5

Icw Rated Short Time Withstand Current: 5.05 kA - 10 s, 4.4 kA - 30 s, 3.4 kA - 1 min, 2.2 kA - 3 min, 1.6 kA - 10 min

Carbon Footprint Of The Distribution Phase A4: 5.486569680437349, 5 kg CO2 eq.

Carbon Footprint Of The Manufacturing Phase A1 To A3: 105 kg CO2 eq., 104.9729578951509

Local Data Status: Publishable

Global Commercial Status: Commercialised

Stocking Flag: N

Device Type: LV equipment - LV contactor

Traceability: Yes

Average Life Duration: 20 year(s)

Weee Scope: In

Weee Product Category: 5

Eoli Availability Display: Yes

Reach Full Compliance Status: Reference contains Substances of Very High Concern above the threshold

Reach Compliance Directive: Reference contains Substances of Very High Concern above the threshold

Rohs Eur Status: Compliant By Exemption

Rohs Eur Full Compliance Status: Compliant By Exemption

With Recycled Cardboard: Yes

Product Contributes To Saved And Avoided Emissions: No

Tier: 1

Function Option: Standard

Average Impedance: 0.000065 Ohm

Compatibility Code: LC1G

Device Short Name: LC1G

Hold In Power Consumption In Va: 17.0-17.0 VA

Inrush Power In Va: 670-670 VA

Mechanical Durability: 5 Mcycles

Number Of Modules Per Plc Per Pc: 1

Pole Contact Composition: 3 NO

Product Availability: Stock - Normally stocked in distribution facility

Protective Treatment: TH

Range Of Product: TeSys Giga

Software Version: v5.9.4

Tightening Torque: 58 N.m

Weee Label: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Warranty In Months: 18

Inf Motor Phase Current: 630 A

Pep Code: ENVPEP2105013EN

Pep Verification Date: 2025-06-17

Psr Version: PSR-0005-ed2-2016 03 29

Data Source: extrapolated product

Functional Unit Quantity: 1

Product Weight In G2: 18850

Energy Consumption On Product Lifetime In Kwh: 2233.8

Energy Model Installation A5 2: Electricity Mix; Production mix; Low voltage; CN

Energy Model End Of Life C1 C4 2: Electricity Mix; Production mix; Low voltage; CN

Offer Owner Code: 190788

Width Nominal: 211 mm

Climate Change Total Kg Co2 Eq Operational Energy Use B6 2: 1949.985

Ecotoxicity Fresh Water Ctue Operational Energy Use B6 2: 36773.125

Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 2: 31535

Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder

Market SegmentationCommercial, Industrial

Contactor Applicationpower switching, motor control

Mechanical Robustnessvibrations 5-300 Hz 2 gn contactor open, vibrations 5-300 Hz 4 gn contactor closed, shocks 10 gn 11 ms contactor open, shocks 15 gn 11 ms contactor closed

Operating Time40...70 ms closing, 15...50 ms opening

Safety Reliability LevelB10d = 100000 cycles contactor with nominal load EN/ISO 13849-1, B10d = 1800000 cycles contactor with mechanical load EN/ISO 13849-1

Connections Terminalscontrol circuit: push-in 0.75-2.5 mm² - cable stiffness: flexible with cable end, power circuit: bar 2 - busbar cross section: 52 x 20 mm, power circuit: lugs-ring terminals 1 185-185 mm², power circuit: bolted connection, control circuit: push-in 1 0.2-2.5 mm² - cable stiffness: solid stranded without cable end, control circuit: push-in 1 0.25-2.5 mm² - cable stiffness: flexible with cable end, control circuit: push-in 2 0.5-1.0 mm² with cable end, control circuit: push-in 0.75-2.5 mm² - cable stiffness: solid stranded without cable end

Ie Rated Operational Current1050 A (at <40 °C) at <= 1000 V AC-1, 630 A (at <60 °C) at <= 440 V AC-3

Carbon Footprint Of The End Of Life Phase C1 To C440.179857954961236, 40 kg CO2 eq.

Carbon Footprint Of The Use Phase B2 B3 B4 B61 950 kg CO2 eq., 1949.985

Local Publishable Date2025-07-09

Return IndicatorY

Stock Policy2

ServiceabilityNo

Field Service DivisionPPIBS

Use Carbon Footprint1949.985

Legacy Weee ScopeIn

Scope PerimeterAt least in Europe

End Of Life Doc RefENVEOLI2105013

Reach Full Compliance Status IdCONTAINS_SVHC

Rohs Eur In ScopeYes

Rohs Eur Conformity Date2121

China Rohs In ScopeNo

Without Single Use PlasticNo

Tier Id1

Function Option IdSTANDARD

Product Kit IdentifierN

Coil Technologybuilt-in bidirectional peak limiting

Connection Pitch70 mm

Halogen Free StatusHalogen free plastic parts product

Hold In Power Consumption In W11.0-11.0 W

Inrush Power In W390 W

Mounting Supportplate

Overvoltage CategoryIII

Poles Description3P

Product Or Component Typecontactor

RangeTeSys

ReturnabilityYes

Sustainable PackagingYes

Total Lifecycle Carbon Footprint2 101 kg CO2 eq.

Rated Thermal Current Ith1050 A

Control Circuit Voltage200...500 V

Rated Thermal Current Hv1050 A

Database Version2022-01

Pcr VersionPEP-PCR-ed4-2021 09 06

Type Of Verification For The PepIndependent internal review

Functional Unit DescriptionSwitch on and off during 20 years electrical power supply of a downstream installation with an electrical and/or mechanical control. The functional unit is characterized by a type 3P(NO), a control circuit voltage 100V-250V AC/DC, a power circuit voltage 1000V AC and a rated operational current 225A.

Functional Unit UnitUnit

Reference Lifetime In Y220

Energy Model Manufacturing A1 A3 2Electricity Mix; Production mix; Low voltage; CN

Energy Model Use B6 2Electricity Mix; Production mix; Low voltage; CN

Recyclability Potential In 255

Height Nominal388.5 mm

Climate Change Fossil Fuels Kg Co2 Eq Operational Energy Use B6 21949.6875

Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 231535

Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 234869.125

Environment Attributes Main

China Rohs Regulation: Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.

Permissible Ambient Air Temperature Around The Device: -40-70 °C at Uc, -40-70 °C at Uc, -40-70 °C at Uc, -40-70 °C at Uc

Halogene Performance: Halogen free plastic parts product

Mercury Free: Yes

Ambient Air Temperature For Operation: -25-60 °C

Circularity Profile: ENVEOLI2105013

Eu Rohs Directive: Compliant By Exemption

Packaging Made With Recycled Cardboard: Yes

Reach Regulation: Reference contains Substances of Very High Concern above the threshold

Pep Verification Date: 2025-06-17

Psr Version: PSR-0005-ed2-2016 03 29

Ip Degree Of ProtectionIP2X front face with shrouds IEC 60529, IP2X front face with shrouds VDE 0106

Take BackNej

Recycled Metal Content At Cr Level0 %

Carbon Footprint2100.6243855305493

Ambient Air Temperature For Storage-60-80 °C

Environmental DisclosureENVPEP2105013EN

Halogen Content PerformanceHalogen free plastic parts product

Packaging Without Single Use PlasticNo

Pep CodeENVPEP2105013EN

Pcr VersionPEP-PCR-ed4-2021 09 06

Type Of Verification For The PepIndependent internal review

General Attributes

Product Or Component Type: contactor

Range Of ProductTeSys Giga

ETIM

ETIM 8: EC000066

ETIM 9EC000066

Specifications

Depth: 266 mm
