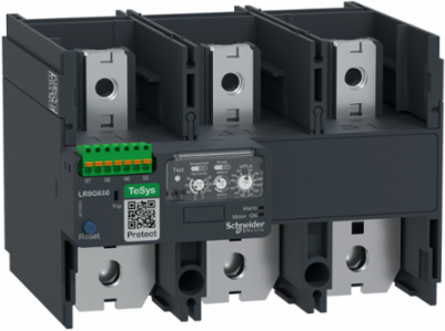

Schneider Electric LR9G630 Thermal overload relay, electronic, TeSys Giga, 160A to 630A, Class 5E to 30E, push-in control connection
Schneider Electric LR9G630 Thermal overload relay, electronic, TeSys Giga, 160A to 630A, Class 5E to 30E, push-in control connection
- MPN: LR9G630
- PPN: SCH-LR9G630
- UNSPSC: 39122330
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$1880.00/ EA
Description
TeSys LR9G 630A thermal overload relay is compatible with TeSys Giga high power contactor, push-in control connection. It provides phase imbalance, phase failure, in-built ground-fault and single-phase loads protections. It is available for manual and auto reset options and LED indicator for Motor ON and pre-trip alarm. Tripping classes is selectable from class 5E to class 30E to suit different application needs from fast tripping, general purpose and high inertia loads. It is suitable for independent mounting or direct mounting with LC1G contactors. It provides IP2x protection in Front face with shrouds conforming to IEC 60529 and VDE 0106. It can cover -25°C to 60°C operation ambient air temperature without derating up to 3000m altitude. Multi standards certified (CE,CB,CCC,cULus,EAC,KC,RCM,Marine). Unique QR code provides quick access to complete product data.
Features
- Electronic overload relay built in the protection of ground fault, phase imbalance/failure, single phase loads
- Less number of references, simple to select, choose means less inventory
- Wide setting range with advanced protections
- Full features set for more flexibility
- Continuous monitoring with healthy and alarm indicators
- Remote reset of relay without opening of panel doors
- Easy to separate or direct mounting of OLR with CTR, save installation and assembly of panel components
- Trip class selection to suit different application needs from fast tripping, general purpose and high inertia loads
- Outstanding Electro Magnetic Compatibility, conforms to EN 50081-1&2 and EN 50082
- Unique QR code, quick access to complete product data, technical video, anti-counterfeit checking
Specifications
Physical Attributes
- Color
- dark grey
Conformance Attributes
- Product Certifications
- CB Scheme, CCC, cULus, UKCA, ATEX, EU-RO-MR by DNV-GL, EAC
StandardsEN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 60947-4-1, CSA C22.2 No 60947-4-1, JIS C8201-4-1, JIS C8201-5-1, IEC 60335-1:Clause 30.2, IEC 60335-2-40:Annex JJ, UL 60335-2-40:Annex JJ, UL 60335-1
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electromagnetic Compatibility
- EMC immunity conforming to IEC 60947-4-1, emission tests criteria A conforming to IEC 60947-4-1, immunity to radiated radio-electrical interference - test level: 20 V/m conforming to EN/IEC 61000-4-3, voltage dips and interruptions immunity test conforming to SEMI F47
- Mechanical Robustness
- vibrations 5-300 Hz 6 gn contactor open, shocks 15 gn 11 ms contactor closed
- Network Frequency
- 30...60 Hz, 100 Hz
- Reset
- automatic reset, manual
- Carbon Footprint Of The Distribution Phase A4
- 0.5101636186118972, 0.5 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0.10723822617490514, 0.1 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 1 015 kg CO2 eq., 1014.6580185636406
- Connections Terminals3
- power circuit: bar - busbar cross section: 50 x 10 mm, power circuit: lugs-ring terminals 1 300-300 mm², control circuit: push-in 1 0.2-2.5 mm² - cable stiffness: solid stranded without cable end, control circuit: push-in 1 0.25-2.5 mm² - cable stiffness: flexible with cable end, control circuit: push-in 2 0.5-1.0 mm² with cable end
- Local Data Status
- Publishable
- Device Type
- Relay, Control & Measurement - Protection relay
- Traceability
- No
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2105014
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- ROHS EUR In Scope
- Yes
- ROHS EUR Full Compliance Status
- Compliant with Exemptions
- China ROHS In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- Contacts Type And Composition
- 1 NO + 1 NC
- Halogen Free Status
- Halogen free plastic parts product
- Network Type
- AC
- Package Weight Lbs
- 4.540 kg
- Product Or Component Type
- electronic thermal overload relay
- Range
- TeSys
- Returnability
- Yes
- Thermal Overload Class
- class 5E...30E IEC 60947-4-1
- Tightening Torque
- 58 N.m
- Tripping Threshold
- 1.125 +/- 0.07 In IEC 60947-4-1
- Ith Conventional Free Air Thermal Current2
- 5 A
- Uimp Rated Impulse Withstand Voltage2
- 8 kV
- Country Of Origin 6
- US
- Product Kit Identifier
- N
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional Unit Description
- Other switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.
- Energy Model Manufacturing A1 A3 2
- China, CN
- Energy Model Use B6 2
- Electricity Mix; Low voltage; 2018; China, CN
- Global Commercial Status
- Commercialised
- Ith Conventional Free Air Thermal Current5
- 5 A
- Uimp Rated Impulse Withstand Voltage5
- 8 kV
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Local SignallingLED, trip indicator
Mounting Supportdirect on contactor, plate
Protection Typephase imbalance 0-5 s - alarm circuit UL 60947-4-1, ground fault protection 0-1 s - alarm circuit IEC 60947-4-1, ground fault protection 0-1 s - alarm circuit UL 60947-4-1, phase loss 0-4 s - alarm circuit, phase imbalance 0-5 s - alarm circuit IEC 60947-4-1
Uc Control Circuit Voltage224...500 V AC 50/60 Hz, 24...250 V DC
Carbon Footprint Of The End Of Life Phase C1 To C45 kg CO2 eq., 5.017797406826899
Carbon Footprint Of The Manufacturing Phase A1 To A331 kg CO2 eq., 31.319061943344423
Connections Terminalspower circuit: bar - busbar cross section: 50 x 10 mm, power circuit: lugs-ring terminals 1 300-300 mm², control circuit: push-in 1 0.2-2.5 mm² - cable stiffness: solid stranded without cable end, control circuit: push-in 1 0.25-2.5 mm² - cable stiffness: flexible with cable end, control circuit: push-in 2 0.5-1.0 mm² with cable end
Uc Control Circuit Voltage524...500 V AC 50/60 Hz, 24...250 V DC
Local Publishable Date2025-02-26
ServiceabilityNo
Legacy WEEE ScopeIn
EOLI Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant with Exemptions
ROHS EUR Full Compliance Status IdCOMPLIANT_WITH_EXEMPTIONS
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticNo
Return IndicatorY
Function OptionStandard
Device Short NameLR9G
Mechanical Durability7000 cycles
Overvoltage CategoryIII
Product AvailabilityStock - Normally stocked in distribution facility
Protective TreatmentTH
Relay Applicationmotor protection
Sustainable PackagingNo
Thermal Protection Adjustment Range160-630 A
Total Lifecycle Carbon Footprint1 052 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Ue Rated Operational Voltage21000 V AC 50/60 Hz
Medium DescThermal overload relay, electronic, TeSys Giga, 160A to 630A, Class 5E to 30E, push-in control connection
Stocking FlagN
Pep CodeENVPEP2105014EN
Pep Verification Date2025-08-05
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional Unit Unitunit
Energy Model Installation A5 2Electricity Mix; Low voltage; 2018; China, CN
Energy Model End Of Life C1 C4 2Electricity Mix; Low voltage; 2018; China, CN
Product NameTeSys LRG
Ue Rated Operational Voltage51000 V AC 50/60 Hz
Environment Attributes Main
- Take Back
- No, Nej
- Ambient Air Transport Temperature
- -25-60 °C, -25-60 °C
- IP Degree Of Protection
- IP2X front face with shrouds IEC 60529, IP2X front face with shrouds VDE 0106
- ROHS Exemption Information
- Yes
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ambient Air Temperature For Storage
- -60-80 °C
- Environmental Disclosure
- ENVPEP2105014EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-08-05
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Ambient Air Temperature For Operation-25-60 °C, -25-60 °C
EU ROHS DirectiveCompliant By Exemption , Compliant with Exemptions
Permissible Ambient Air Temperature Around The Device-40-60 °C at Uc, -40-60 °C at Uc, -40-60 °C at Uc, -40-60 °C at Uc
Halogene PerformanceHalogen free plastic parts product
China ROHS RegulationX
Carbon Footprint1051.6122797585988
Circularity ProfileENVEOLI2105014
Halogen Content PerformanceHalogen free plastic parts product
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2105014EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- electronic thermal overload relay
Surge Protection And Filtering Attributes
- Surge Withstand
- 4 kV
Specifications
- Country of Origin
- Indonesia, Philippines
Depth186 mm
