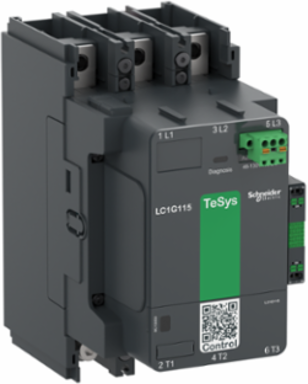

Schneider Electric LC1G115KUEN TeSys Giga High Power Contactor 3 Pole 115A 100-250V AC/DC Coil
Schneider Electric LC1G115KUEN TeSys Giga High Power Contactor 3 Pole 115A 100-250V AC/DC Coil
- MPN: LC1G115KUEN
- PPN: SCH-LC1G115KUEN
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$1227.26/ EA
Description
TeSys Giga high power contactor, 3 poles (3 NO) for category AC-3 applications up to 115A 75kW@440V. It provides a 100-250V AC/DC wide band low consumption electronic coil and embedded highly reliability 1NO+1NC auxiliary contact block (17V 1mA). Designed for demanding applications with maximum operating rates up to 600 cycles per hour and environments until 60°C. It procures high reliability and durability with 5 Mcycles mechanical durability. Local Contact Wear Diagnosis (CWD) as standard function, continuous monitoring with healthy and alarm indicators. It is possibility to replace switching module (main contacts), enhancement contactor life. Contactor can be fixed in all quadrants, maintenance without removing cables/busbars, and OLR could be directly mounted below contactor. To be used with power connection by bolted connection and control connections by spring terminals, accessible from front for easy and quick replacement. It provides IP2x protection in Front face with shrouds conforming to IEC 60529 and VDE 0106. It can cover -25°C to 60°C operation ambient air temperature and directly mounted on plate, No derating up to 3000m altitude. The dimension is 255mm x 108mm x 175mm (H x W x D), compact size enables panel space savings. Multi standards certified(CE,CB,CCC,cULus,EAC,KC,RCM,Marine) and Green Premium compliant (RoHs/Reach). Unique QR code provides quick access to complete product data.
Specifications
Specifications
- [Uc] Control Circuit Voltage
- 100...250 V AC 50/60 Hz || 100...250 V DC
- Range Of Product
- TeSys Giga
- Contactor Application
- power switching || motor control
- Range
- TeSys
- [Ie] Rated Operational Current
- 250 A (at <40 °C) at <= 1000 V AC-1 || 115 A (at <60 °C) at <= 440 V AC-3
- Device Short Name
- LC1G
[Ue] Rated Operational Voltage<= 1000 V AC 50/60 Hz || <= 460 V DC
Control Circuit Voltage Limitsoperational: 0.8 Uc Min...1.1 Uc Max (at <60 °C) || drop-out: 0.1 Uc Max...0.45 Uc Min (at <60 °C)
Product Or Component Typecontactor
Utilisation CategoryAC-1 || AC-3 || AC-3e || AC-4 || AC-5a || AC-5b || AC-6a || AC-6b || AC-8a || AC-8b || DC-1 || DC-3 || DC-5
Poles Description3P
Environment
- Ambient Air Temperature For Operation
- -25-60 °C
- Protective Treatment
- TH
- Mechanical Robustness
- vibrations 5-300 Hz 2 gn contactor open || vibrations 5-300 Hz 4 gn contactor closed || shocks 10 gn 11 ms contactor open || shocks 15 gn 11 ms contactor closed
- Permissible Ambient Air Temperature Around The Device
- -40-70 °C at Uc
Ambient Air Temperature For Storage-60-80 °C
Ip Degree Of ProtectionIP2X front face with shrouds IEC 60529 || IP2X front face with shrouds VDE 0106
Colourdark grey
Complementary
- Product Certifications
- CB Scheme || CCC || cULus || EAC || CE || UKCA || EU-RO-MR by DNV-GL
- Power Dissipation Per Pole
- 10 W AC-1 - Ith 250 A || 3 W AC-3 - Ith 115 A
- Auxiliary Contact Composition
- 1 NO + 1 NC
- [Ith] Conventional Free Air Thermal Current
- 250 A (at 40 °C)
- Mounting Support
- plate
- Rated Breaking Capacity
- 1040 A at 440 V
- Associated Fuse Rating
- 125 A aM at <= 440 V for motor || 125 A aM at <= 690 V for motor || 315 A gG at <= 690 V
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV
- Pole Contact Composition
- 3 NO
- Coil Technology
- built-in bidirectional peak limiting
- Maximum Operating Rate
- 600 cyc/h AC-3 || 600 cyc/h AC-3e || 300 cyc/h AC-1 || 150 cyc/h AC-4
- Tightening Torque
- 18 N.m
- Hold-In Power Consumption In Va
- 12.4-12.4 VA
- Overvoltage Category
- III
- Motor Power Hp
- 30 hp at 200/208 V 60 Hz || 40 hp at 230/240 V 60 Hz || 75 hp at 460/480 V 60 Hz || 100 hp at 575/600 V 60 Hz
- [Ui] Rated Insulation Voltage
- 1000 V
- [Icw] Rated Short-Time Withstand Current
- 1.1 kA - 10 s || 0.64 kA - 30 s || 0.52 kA - 1 min || 0.4 kA - 3 min || 0.32 kA - 10 min
Height193 mm
Average Impedance0.00018 Ohm
Connection Pitch35 mm
StandardsEN/IEC 60947-4-1 || EN/IEC 60947-5-1 || UL 60947-4-1 || CSA C22.2 No 60947-4-1 || JIS C8201-4-1 || JIS C8201-5-1
Hold-In Power Consumption In W7.8-7.8 W
Irms Rated Making Capacity1560 A at 440 V
Net Weight3.6 kg
Inrush Power In Va540-540 VA
Connections - Terminalspower circuit: bar 2 - busbar cross section: 25 x 6 mm || power circuit: lugs-ring terminals 1 185-185 mm² || power circuit: bolted connection || control circuit: push-in 1 0.2-2.5 mm² - cable stiffness: solid stranded without cable end || control circuit: push-in 1 0.25-2.5 mm² - cable stiffness: flexible with cable end || control circuit: push-in 2 0.5-1.0 mm² with cable end || control circuit: push-in 0.75-2.5 mm² - cable stiffness: solid stranded without cable end || control circuit: push-in 0.75-2.5 mm² - cable stiffness: flexible with cable end
Operating Time40...70 ms closing || 15...50 ms opening
Mechanical Durability8 Mcycles
Compatibility CodeLC1G
Width108 mm
Depth193 mm
Motor Power Kw30 kW at 230 V AC 50/60 Hz (AC-3e) || 55 kW at 400 V AC 50/60 Hz (AC-3e) || 55 kW at 415 V AC 50/60 Hz (AC-3e) || 75 kW at 440 V AC 50/60 Hz (AC-3e) || 75 kW at 500 V AC 50/60 Hz (AC-3e) || 75 kW at 690 V AC 50/60 Hz (AC-3e) || 30 kW at 230 V AC 50/60 Hz (AC-3) || 55 kW at 400 V AC 50/60 Hz (AC-3) || 55 kW at 415 V AC 50/60 Hz (AC-3) || 75 kW at 440 V AC 50/60 Hz (AC-3) || 75 kW at 500 V AC 50/60 Hz (AC-3) || 75 kW at 690 V AC 50/60 Hz (AC-3) || 30 kW at 230 V AC 50/60 Hz (AC-4) || 55 kW at 400 V AC 50/60 Hz (AC-4) || 55 kW at 415 V AC 50/60 Hz (AC-4) || 65 kW at 440 V AC 50/60 Hz (AC-4) || 65 kW at 500 V AC 50/60 Hz (AC-4) || 75 kW at 690 V AC 50/60 Hz (AC-4)
Inrush Power In W380 W
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2105013
- Pvc Free
- Yes
- China Rohs Regulation
- X
- Eu Rohs Directive
- Compliant with Exemptions
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
Circularity ProfileENVEOLI2105013
Halogen Content PerformanceHalogen free plastic parts product
