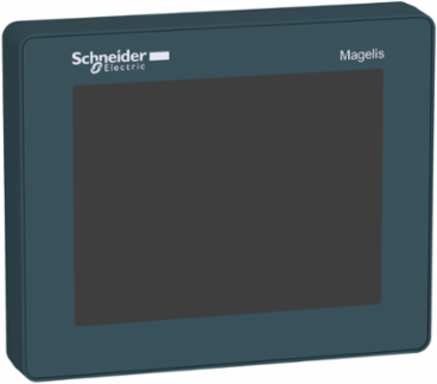

Schneider Electric HMIS65 Harmony SCU 3.5 Inch Touchscreen HMI, 320x240 Resolution, 0.53 kg

MPN: HMIS65
PPN: SCH-HMIS65

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$389.06

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

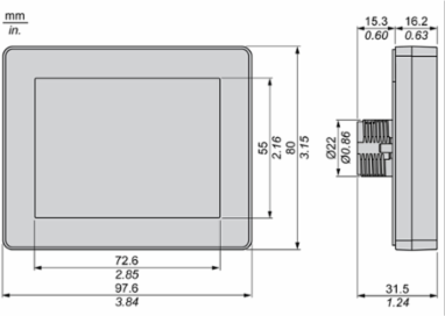

This product is part of the Harmony SCU range, an offer of HMI controllers from 3.5 to 5.7inch colour screens. The HMI small touchscreen features 3.5inch QVGA backlit LED colour TFT LCD display and supports 320 x 240 pixels resolution. It supports Korean, Chinese (simplified Chinese), Japanese (ANK, Kanji), ASCII and Taiwanese (traditional Chinese) character fonts. It supports 65536 colours with 50000 hours of backlight lifespan. The analogue touch panel with 16 levels brightness provides four viewing angles 60° left, 60° right, 40° top, 60° bottom in horizontal x vertical. Its dimensions are 97.6mm (width) x 80mm (depth) and weighs 0.53kg. The integrated design of Harmony SCU delivers maximum functionality while keeping installation easy. Designed for small machines and simple processes control, its state-of-the-art display provides clear readability. The Harmony SCU (formerly known as Magelis SCU) is designed to operate with EcoStruxure™ Machine Expert. It offers functionality for control of small machines and simple processes, while saving up to 30% in installation and ownership costs.

Features

The Schneider Electric HMIS65 is specifically engineered as a 3.5-inch front touchscreen display module for the Harmony SCU (formerly Magelis SCU) controller series, providing a perfect drop-in match for HMISAC and HMISBC rear modules. This precise physical and electronic alignment allows you to replace a damaged screen or upgrade an existing operator interface instantly without altering your back-end logic, effectively reducing total ownership and installation costs by up to 30%.
Equipped with a 3.5-inch QVGA backlit LED color TFT LCD display featuring 320 x 240 pixel resolution and 65,536 colors, this HMI delivers clear graphic visualization for small machines and simple processes. The analog resistive touch screen offers 16 adjustable levels of brightness and wide viewing angles (up to 60 ), ensuring that operators can read critical machine diagnostics and operate control panels safely from various positions under any industrial lighting conditions.
Engineered to withstand heavy-duty operational demands, the premium display boasts an impressive 50,000-hour backlight lifespan.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, China, France, United Kingdom, United States

Depth	80 mm

Physical Attributes

Display Size	3.5 inch

Important Information Attributes

Persona Type Ids	EU, OM, OM8, PB, SC
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Character Font	Korean, Chinese (simplified Chinese), Japanese (ANK, Kanji), ASCII, Taiwanese (traditional Chinese)
Certificate Agency	UKCA, UKEX
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.0751729323, 0.1 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	35 kg CO2 eq., 35.2906015038
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Serviceability	Yes
Field Service Division	IDIBS
Weee Applicability	Finished product
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	4
Without Single Use Plastic	No
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Display Type	backlit LED colour TFT LCD
Product Availability	Stock - Normally stocked in distribution facility
Range Of Product	Harmony SCU
Software Version	EIME v5.8.1
Total Lifecycle Carbon Footprint	143 kg CO2 eq.
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version	2016-11
Pcr Version	PCR-ed3-EN-2015 04 02
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	10
Energy Model - Manufacturing [A1-a3]	Energy model used: China
Energy Model - Use [B6]	Electricity mix; AC; 220V; CN / Electricity mix; AC; 120V; US / Electricity Mix; AC; < 1kV; EU-27
Width Nominal	97.6 mm
F-gas Usage Performance	Only air and vacuum used for insulation / breaking, no F-gas including SF6
Nbr. Of Units In Pkg.	1
Silicone-free	No
Warranty (In Months)	18

Persona Type Names	End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market Segmentation	Commercial, Industrial
View Angle Horiz X Vert	60° left, 60° right40° top, 60° bottom
Carbon Footprint Of The Distribution Phase [A4]	0.0322556391, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0 kg CO2 eq., 0.002107218
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	108 kg CO2 eq., 107.7958095238
Local Publishable Date	2026-03-25
Stocking Flag	N
Device Type	HMI - Graphical display unit
Traceability	Yes
Average Life Duration	7 year(s)
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2101003EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1920
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Brightness	16 levels via touch panel
Pixel Resolution	320 x 240 pixels QVGA
Product Or Component Type	small touchscreen display HMI
Returnability	Yes
Sustainable Packaging	No
Touch Panel	analogue
Pep Code	ENVPEP2101003EN
Pep Verification Date	2021-01-01
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	To provide a modular human machine interface with ethernet communication during 10 years and a 100% use rate at 10.5W.
Functional-unit Unit	unit
Energy Consumption On Product Lifetime In Kwh	140.16
Energy Model - Installation [A5]	Electricity mix; AC; 220V; CN / Electricity mix; AC; 120V; US / Electricity Mix; AC; < 1kV; EU-27
Energy Model - End Of Life [C1-c4]	Electricity mix; AC; 220V; CN / Electricity mix; AC; 120V; US / Electricity Mix; AC; < 1kV; EU-27
F-gas Free	Only air and vacuum used for insulation / breaking, no F-gas including SF6
Halogen-free Status	Product contains halogen above thresholds
Package Weight(Lbs)	274.000 g
Take-back	No
Customs Code	8537109170

Environment Attributes Main

Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Carbon Footprint	143.195946817
Environmental Disclosure	ENVPEP2101003EN
Halogen Content Performance	Product contains halogen above thresholds
Packaging Without Single Use Plastic	No
Pep Code	ENVPEP2101003EN
Pcr Version	PCR-ed3-EN-2015 04 02

Halogene Performance	Product contains halogen above thresholds
China Rohs Regulation	X
Silicon Free	No
Circularity Profile	ENVEOLI2101003EN
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2021-01-01
Type Of Verification For The Pep	Independent internal review
