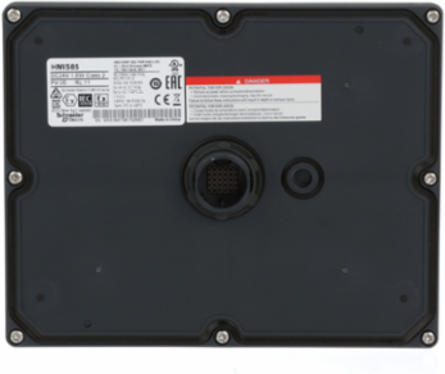

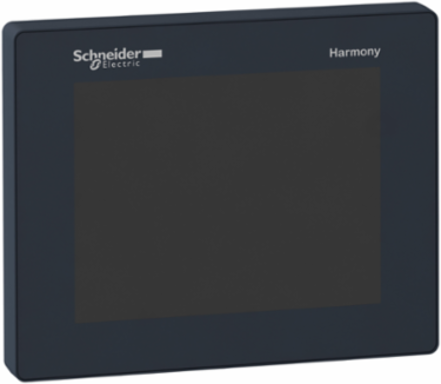

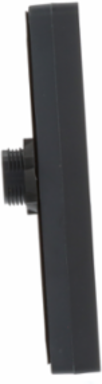

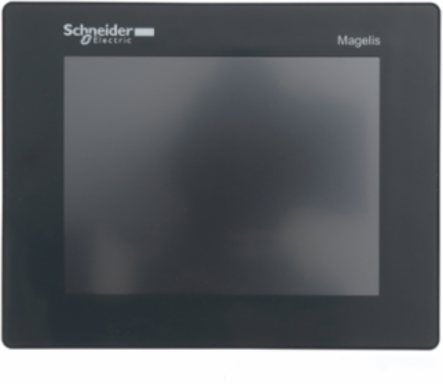

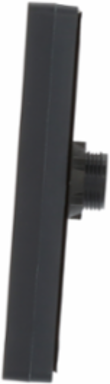

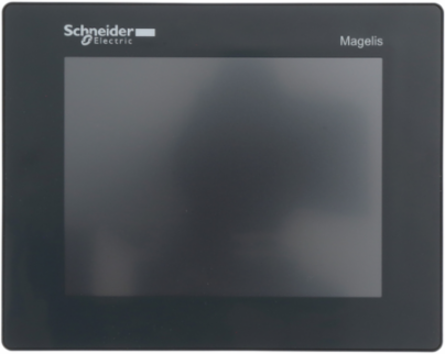

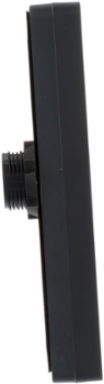

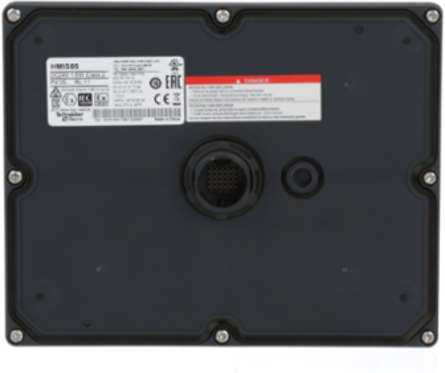

Schneider Electric HMIS85 Harmony SCU 5.7 Inch Touchscreen HMI, 320x240 QVGA, 0.405 kg

  • MPN: HMIS85
  • PPN: SCH-HMIS85
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $757.65

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    The HMI small touchscreen features 5.7inch backlight LED color TFT LCD display, supports 320 x 240 pixels QVGA resolution. This touch panel screen has 65536 colors with 50,000 hours of backlight lifespan. It supports Korean, Chinese (simplified Chinese), Japanese (ANK, Kanji), ASCII and Taiwanese (traditional Chinese) character fonts. The analogue touch panel with 16 levels brightness provides four viewing angles 60° left, 60° right, 40° top, 60° bottom in horizontal x vertical. Its dimensions are 163mm (width) x 129.4mm (depth). It weighs 0.405kg. It is suitable for use with small machines, HVAC, pumping and packaging applications. The integrated design of Harmony SCU delivers maximum functionality while keeping installation easy. The Harmony SCU (formerly known as Magelis SCU) is designed to operate with the EcoStruxure Machine Expert, delivers adequate functionality for control of small machines.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of OriginChina, United States
    Depth129.4 mm

    Physical Attributes

    Display Size5.7 inch

    Important Information Attributes

    Persona Type IdsEU, OM, OM8, PB, SC
    Market Segmentation IdCOMMERCIAL, INDUSTRIAL
    Character FontKorean, Chinese (simplified Chinese), ASCII, Taiwanese (traditional Chinese), Japanese (ANK, Kanji)
    Carbon Footprint Of The Distribution Phase [A4]0.0322556391, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.002107218
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]108 kg CO2 eq., 107.7958095238
    Local Publishable Date2026-07-27
    Stocking FlagY
    Device TypeHMI - Graphical display unit
    TraceabilityYes
    Average Life Duration7 year(s)
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI2101003EN
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1920
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier2
    Function OptionStandard
    Brightness16 levels via touch panel
    Pixel Resolution320 x 240 pixels QVGA
    Product Or Component Typesmall touchscreen display HMI
    ReturnabilityYes
    Sustainable PackagingNo
    Touch Panelanalogue
    Pep CodeENVPEP2101003EN
    Pep Verification Date2021-01-01
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionTo provide a modular human machine interface with ethernet communication during 10 years and a 100% use rate at 10.5W.
    Functional-unit Unitunit
    Energy Consumption On Product Lifetime In Kwh140.16
    Energy Model - Installation [A5]Electricity mix; AC; 220V; CN / Electricity mix; AC; 120V; US / Electricity Mix; AC; < 1kV; EU-27
    Energy Model - End Of Life [C1-c4]Electricity mix; AC; 220V; CN / Electricity mix; AC; 120V; US / Electricity Mix; AC; < 1kV; EU-27
    Width Nominal163 mm
    F-gas FreeOnly air and vacuum used for insulation / breaking, no F-gas including SF6
    Halogen-free StatusProduct contains halogen above thresholds
    Package Weight(Lbs)682.000 g
    Take-backNo
    Customs Code8528592500
    Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
    Market SegmentationCommercial, Industrial
    View Angle Horiz X Vert60° left, 60° right40° top, 60° bottom
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0.0751729323, 0.1 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]35 kg CO2 eq., 35.2906015038
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy1
    ServiceabilityYes
    Field Service DivisionIDIBS
    Weee ApplicabilityFinished product
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label4
    Without Single Use PlasticNo
    Tier Id2
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Display Typebacklit LED colour TFT LCD
    Product AvailabilityStock - Normally stocked in distribution facility
    Range Of ProductHarmony SCU
    Software VersionEIME v5.8.1
    Total Lifecycle Carbon Footprint143 kg CO2 eq.
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Database Version2016-11
    Pcr VersionPCR-ed3-EN-2015 04 02
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime In Y10
    Energy Model - Manufacturing [A1-a3]Energy model used: China
    Energy Model - Use [B6]Electricity mix; AC; 220V; CN / Electricity mix; AC; 120V; US / Electricity Mix; AC; < 1kV; EU-27
    Height Nominal129.15 mm
    Certificate AgencyUKCA
    F-gas Usage PerformanceOnly air and vacuum used for insulation / breaking, no F-gas including SF6
    Nbr. Of Units In Pkg.1
    Silicone-freeNo
    Warranty (In Months)18

    Environment Attributes Main

    Take BackNo
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Carbon Footprint143.195946817
    Environmental DisclosureENVPEP2101003EN
    Halogen Content PerformanceProduct contains halogen above thresholds
    Packaging Without Single Use PlasticNo
    Pep CodeENVPEP2101003EN
    Pcr VersionPCR-ed3-EN-2015 04 02
    Halogene PerformanceProduct contains halogen above thresholds
    China Rohs RegulationX
    Silicon FreeNo
    Circularity ProfileENVEOLI2101003EN
    Eu Rohs DirectiveCompliant By Exemption
    Packaging Made With Recycled CardboardYes
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep Verification Date2021-01-01
    Type Of Verification For The PepIndependent internal review

    General Attributes

    Product Or Component Typesmall touchscreen display HMI
    Range Of ProductHarmony SCU

    ETIM

    ETIM 8EC001412
    ETIM 9EC001412

    Contractual Warranty Attributes

    Warranty Period18 months
    Warranty18 months
    Harmony SCU 5.7 Inch Touchscreen HMI, 320x240 QVGA, 0.405 kg
    Harmony SCU 5.7 Inch Touchscreen HMI, 320x240 QVGA, 0.405 kg
    Harmony SCU 5.7 Inch Touchscreen HMI, 320x240 QVGA, 0.405 kg
    Harmony SCU 5.7 Inch Touchscreen HMI, 320x240 QVGA, 0.405 kg
    Harmony SCU 5.7 Inch Touchscreen HMI, 320x240 QVGA, 0.405 kg
