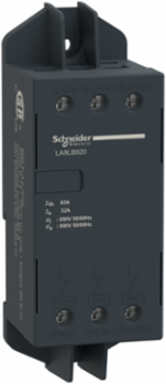

Schneider Electric LA9LB920 Current Limiter 32A/690V, Activation 1kA, DIN Rail Mounting
- MPN: LA9LB920
- PPN: SCH-LA9LB920
CAD
$398.17
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
TeSys Integral short circuit current limiter block for contactor breakers Integral 63, motor circuit breakers TeSys GV2, starter controllers TeSys U. It increases the ability of the circuit breaker to withstand a short circuit current from 50 kA to 100/130kA@400 V. To be connected upstream of one or multiple circuit breakers with a total motor nominal current of 32A. For clipping on a 35mm DIN rail or screw fixing, independant mounting from the protection device. It conforms to RoHS/REACh regulation.
Documentation & Downloads
Specifications
Key Specifications
- [Ie] Rated Operational Current
- 32 A
- Range Of Product
- TeSys U || TeSys GV2
- Range Compatibility
- TeSys TeSys U || TeSys TeSys GV2
- [Ith] Conventional Free Air Thermal Current
- 63 A IEC 60947-1
- Product Or Component Type
- current limiting module
- Product Compatibility
- LUB || LU2B || GV2P || GV2L || GV2RT || GV2ME
- Mounting Location
- 35 mm DIN rail
[Ue] Rated Operational Voltage690 V AC 50/60 Hz
[Ui] Rated Insulation Voltage690 V AC 50/60 Hz IEC 60947-1
Accessory / Separate Part Categoryprotection accessory
Activation Threshold1000 A
Function Of Moduleincreasing the breaking capacity of a circuit breaker
RangeTeSys
Breaking Capacity<= 100 kA depending on protective device
Complementary
- Tightening Torque
- 2.2 N.m
- Connections - Terminals
- screw clamp terminals 1 x 1.5-25 mm² rigid || screw clamp terminals 2 x 1.5-10 mm² rigid || screw clamp terminals 1 x 1.5-25 mm² flexible without cable end || screw clamp terminals 2 x 1.5-10 mm² flexible without cable end || screw clamp terminals 1 x 1.5-16 mm² flexible with cable end || screw clamp terminals 2 x 1.5-4 mm² flexible with cable end
Net Weight0.32 kg
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111252EN
- Eu Rohs Directive
- Compliant with Exemptions
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
