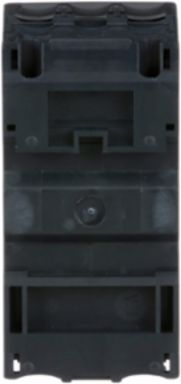

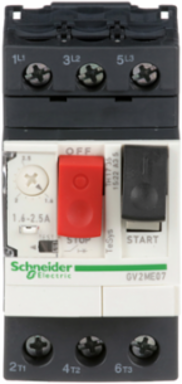

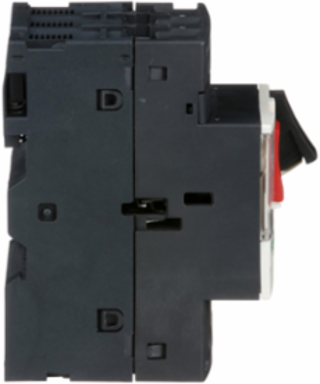

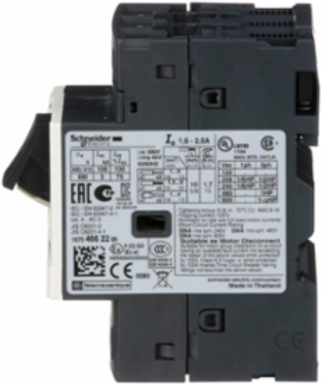

Schneider Electric GV2ME07 TeSys Deca Motor Circuit Breaker, 3P, 1.6-2.5A, Thermal-Magnetic
- MPN: GV2ME07
- PPN: SCH-GV2ME07
CAD
$144.09
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
TeSys GV motor circuit breaker, 3 poles (3P), 2.5A/690V, for 3-phase motor applications 0.75kW@400V. It provides a thermal-magnetic protection with a thermal setting range 1.6-2.5A, magnetic tripping at 13xIn, high breaking capacity Icu 100kA@400V. Connection by screw clamp terminals. Start-stop control by push-button guaranteed for 100 000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh).
Features
- The Schneider Electric GV2ME07 is a TeSys GV2 thermal-magnetic motor circuit breaker. It serves as a dual-purpose component for your control panel: it provides a manual ON/OFF switch (via push buttons) and automatic short-circuit and overload protection. By combining these into one unit, it replaces the need for a separate fuse block and an overload relay, saving significant DIN rail space in Canadian industrial enclosures.
- This model features a wide thermal adjustment range of 1.6 to 2.5 Amps. Using the small dial on the front, you can set the precise Full Load Amps (FLA) of your specific motor. This ensures the breaker "breathes" with the motor, allowing for normal start-up inrush while providing a reliable trip if the motor stalls or draws too much current due to a mechanical jam.
- The GV2ME series is distinguished by its push-button interface (Start/Stop). This mechanical design is incredibly robust and provides clear tactile feedback. The "Stop" button can also be used to manually trip the device for maintenance, and it can even be locked in the "OFF" position with a padlock (using a specialized accessory) to meet Lockout/Tagout (LOTO) safety requirements.
- In addition to thermal protection, the GV2ME07 includes a magnetic trip element set to 33.5 Amps (13 times In). In the event of a catastrophic short circuit, the breaker trips instantaneously. It has a high breaking capacity, typically rated for 100kA at 230V or 100kA at 400/415V, ensuring it can safely handle major electrical faults in high-power industrial environments.
- One of the most valuable features for 3-phase motor users is phase failure sensitivity. If one phase is lost (a common cause of motor burnout in Canada during storms or utility issues), the GV2ME07 detects the imbalance and trips the circuit. This proactive protection can save a $500 motor from a "silent killer" electrical fault.
Documentation & Downloads
Specifications
Additional
- Rated Current
- 2.5 A
- Breaking Capacity
- 100 kA Icu 230/240 V AC, 100 kA Icu 400/415 V AC, 100 kA Icu 440 V AC, 100 kA Icu 500 V AC (50/60 Hz IEC 60947-2), 3 kA Icu 690 V AC IEC 60947-2
- Motor Power
- 0.75-0.75 kW 400/415 V AC 50/60 Hz
- Poles
- 3P
- Rated Insulation Voltage
- 690 V AC 50/60 Hz IEC 60947-2
- Network Type
- AC
- Suitability For Isolation
- yes IEC 60947-1 § 7-1-6
- Electrical Durability
- 100000 cycles AC-3 415 V In, 100000 cycles AC-3e 415 V In
- Width
- 45 mm (1.77 in)
- Depth
- 78.5 mm (3.09 in)
- Tightening Torque
- 1.7 N·m screw clamp terminal
- Control Type
- push-button
- Material
- Dark grey finish
- IK Degree of Protection
- IK04
- Product Certifications
- CCC, UL, CSA, EAC, ATEX, LROS, BV, RINA, DNV-GL, UKCA
- Ambient Air Temperature for Storage
- -40 to 80 °C (-40 to 176 °F)
- Operating Altitude
- 2000 m (6562 ft)
- Rating Utilisation Category
- category A IEC 60947-2, AC-3 IEC 60947-4-1, AC-3e IEC 60947-4-1
Thermal Protection Adjustment Range1.6-2.5 A IEC 60947-4-1
Magnetic Tripping Current33.5 A
Trip Unit Technologythermal-magnetic
Rated Operational Voltage690 V AC 50/60 Hz IEC 60947-2
Rated Dutycontinuous IEC 60947-4-1
Network Frequency50/60 Hz IEC 60947-4-1
Phase Failure Sensitivityyes IEC 60947-4-1
Mechanical Durability100000 cycles
Height89 mm (3.50 in)
Net Weight0.26 kg (0.57 lb)
Connection TypeScrew clamp terminals
Fixing Mode35 mm symmetrical DIN rail clipped, panel screwed with adaptor plate
IP Degree of ProtectionIP20 IEC 60529
StandardsEN/IEC 60947-2, EN/IEC 60947-4-1
Ambient Air Temperature for Operation-20 to 60 °C (-4 to 140 °F)
Mechanical Robustnessshocks 30 Gn for 11 ms, vibrations 5 Gn 5-150 Hz
Fire Resistance960 °C IEC 60695-2-11
Mercury FreeYes
