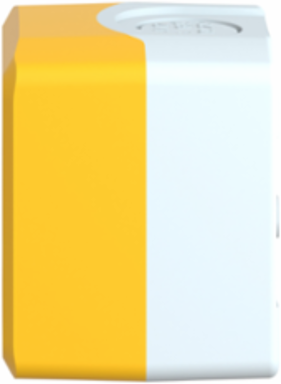

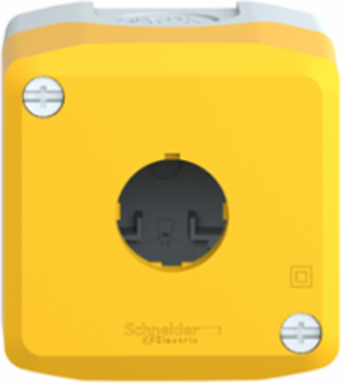

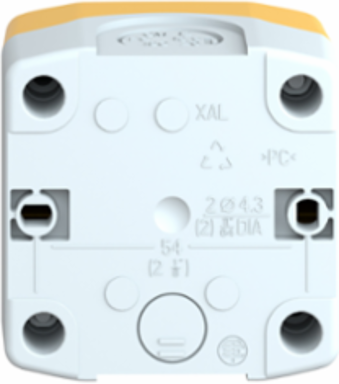

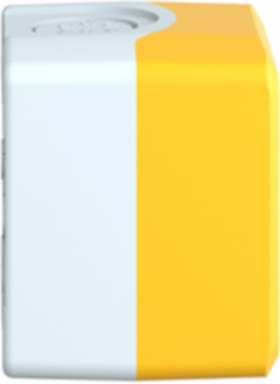

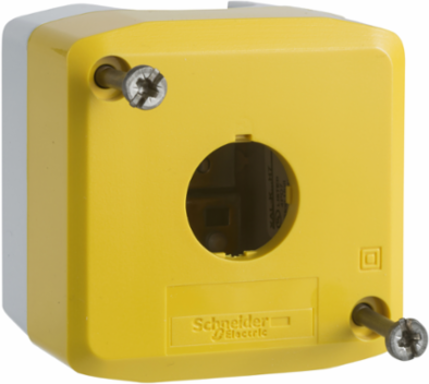

Schneider Electric XALK01 Harmony XALK Empty Control Station, 1 Cut-Out, IP66/IP67/IP69K, Yellow Lid

  • MPN: XALK01
  • PPN: SCH-XALK01
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $41.69

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This Harmony XALK empty control station has 1 cut-out for 1 push button / 1 function for emergency switching off and emergency stop functions. This 1 cut-out yellow empty control station for emergency stop enables machine builders to add any emergency switching off control and emergency stop control units on the enclosure to enable for safety function as required. It is designed for simple and mass production machines, textiles, packaging, handling small lifting systems, control of garage doors, rolling shutters, smoke extraction vents. It is compatible with Harmony XB5 range push buttons, switches and pilot lights. It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP69 / IP67 / IP66 / IP69K, making it ideal for operation in harsh environments. It can be retrofitted with all XB5 series push buttons, pilot lights, selector switches and joysticks. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Czechia

    Physical Attributes

    Color Of Base Of Enclosure
    light grey RAL 7035)
    Color Of Coveryellow RAL 1021)

    Important Information Attributes

    Persona Type Ids
    BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Control Station Application
    emergency stop function, emergency switching off function
    Electrical Composition Code
    SR1, SF1, MR1, MF1
    Certificate Agency
    IEC 60947-5-5, UL 508, IEC 60947-5-4, JIS C8201-5-1, CSA C22.2 No 14, IEC 60947-1, IEC 60947-5-1, JIS C8201-1
    Carbon Footprint Of The End-of-life Phase [C1 To C4]
    0 kg CO2 eq., 0.0256805453
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]
    0.9 kg CO2 eq., 0.8851773688
    Local Data Status
    Publishable
    Return Indicator
    N
    Stock Policy
    2
    Scope Perimeter
    At least in Europe
    End Of Life Doc Ref
    ENVEOLI2506022EN
    Reach Full Compliance Status Id
    NOT_CONTAINING_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    1930
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    Yes
    Product Contributes To Saved And Avoided Emissions
    No
    Tier
    1
    Function Option
    Standard
    Assembly Style
    for customer assembly
    Compatibility Code
    XALK
    Gcr Bridge
    XALK01CUST01
    Main Group
    1 cut-out
    Number Of Horizontal Rows
    1
    Overvoltage Category
    class II conforming to IEC 60536
    Product Destination
    for XB5 Ø 22 mm control and signalling units
    Protective Treatment
    TH
    Resistance To High Pressure Washer
    7000000 Pa 55 °C 0.1 m
    Software Version
    EIME v5.8.1
    Total Lifecycle Carbon Footprint
    0.9 kg CO2 eq.
    Color Of Cover
    yellow RAL 1021)
    Database Version
    2016-11
    Pcr Version
    PCR-ed3-EN-2015 04 02
    Type Of Verification For The Pep
    Independent internal review
    Functional-unit Description
    To provide Stop, Start or Combined functions on 10A electrical load for 20 years at 30% use rate with 0.5W power use.
    Functional-unit Unit
    unité (unit)
    Energy Model - Manufacturing [A1-a3]
    Energy model used: France
    Energy Model - Use [B6]
    Electricity mix; AC; <lt/> 1kV; EU-27
    Recyclability Potential In %
    18
    Nbr. Of Units In Pkg.
    1
    Take-back
    No
    Customs Code
    8538100000
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Customizable1, no
    Mounting Of Blockfront mounting, rear mounting
    Carbon Footprint Of The Distribution Phase [A4]0.0175474301, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0.0008203757, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]kg CO2 eq., 0
    Local Publishable Date2026-01-12
    Stocking FlagY
    Weee ScopeOut
    Eoli Availability DisplayYes
    Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
    Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant
    Rohs Eur Full Compliance StatusCompliant
    China Rohs Label1
    Without Single Use PlasticYes
    Tier Id1
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Cable Entry1 knock-out for cable entry 14-14 mm2 knock-outs for Pg 13 cable gland and ISO M20 12-12 mm
    Device Short NameXALK
    Group Of Productstandard yellow
    Materialpolycarbonate
    Number Of Vertical Rows1
    Product AvailabilityNon-Stock - Not normally stocked in distribution facility
    Product Or Component Typeempty control station
    Range Of ProductHarmony XALK
    ReturnabilityNo
    Sustainable PackagingYes
    Color Of Base Of Enclosurelight grey RAL 7035)
    Pep CodeENVPEP2506022EN
    Pep Verification Date2018-09-01
    Psr VersionPSR-0005-ed2-EN-2016 03 29
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime In Y20
    Energy Model - Installation [A5]Electricity mix; AC; <lt/> 1kV; EU-27
    Energy Model - End Of Life [C1-c4]Electricity mix; AC; <lt/> 1kV; EU-27
    Number Of Cut-out1 cut-out
    Package Weight(Lbs)114.000 g
    Warranty (In Months)18

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -40-70 °C, -40-70 °C
    Ip Degree Of Protection
    IP66 IEC 60529, IP67, IP69, IP69K
    Take Back
    No
    Recycled Metal Content At Cr Level
    0 %
    Toxic Heavy Metal Free
    Yes
    Carbon Footprint
    0.92922572
    Environmental Disclosure
    ENVPEP2506022EN
    Packaging Made With Recycled Cardboard
    Yes
    Reach Free Of Svhc
    Yes
    Pep Code
    ENVPEP2506022EN
    Pcr Version
    PCR-ed3-EN-2015 04 02
    Type Of Verification For The Pep
    Independent internal review
    Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
    Nema Degree Of ProtectionNEMA 13, NEMA 4X
    Reach Free ShvcYes
    China Rohs RegulationX
    Mercury FreeYes
    Circularity ProfileENVEOLI2506022EN
    Eu Rohs DirectiveCompliant
    Packaging Without Single Use PlasticYes
    Reach RegulationFree of Substances of Very High Concern above the threshold
    Pep Verification Date2018-09-01
    Psr VersionPSR-0005-ed2-EN-2016 03 29

    General Attributes

    Product Or Component Type
    empty control station
    Range Of ProductHarmony XALK

    ETIM

    ETIM 8
    EC000200
    ETIM 9EC000200

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months
