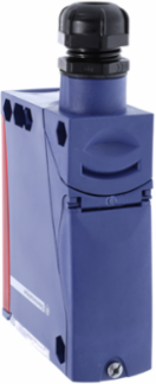

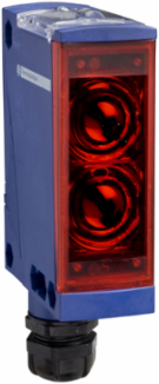

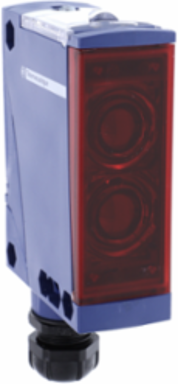

Telemecanique Sensors XUX5APANT16 Photoelectric sensors XU, XUX, diffuse, Sn 2.1 m, 12...24 VDC, terminals

Photoelectric sensors XU, XUX, diffuse, Sn 2.1 m, 12...24 VDC, terminals - https://media.province-electric.com/json_telemecanique_sensors/2023q3/images/medium/027cb417bdc1b21b2ebe56545489f760153d4f81-medium.png

Photoelectric sensors XU, XUX, diffuse, Sn 2.1 m, 12...24 VDC, terminals

MPN: XUX5APANT16
PPN: TES-XUX5APANT16
UNSPSC: 39121528

Spec sheet

Compare

Loading compare button...

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$241.32/ EA

Qty:

Loading add to cart quantity...

Description

This compact design single mode (diffuse system) photo-electric sensor has a PBT case. It has a supply voltage of 12V to 24V DC. This mono-mode rectangular photoelectric sensor has a painted aluminium and polyamide construction, is mountable directly on a surface or bracket, thanks to its 4 fixing points. It has VALOX® PBT high strength case ideal for high temperature environments and PMMA scratch-resistant lens for maximum sensor durability. 2 LED display allows to identify status of the sensor and beam instability, to facilitate troubleshooting. IP65 and IP67 protection makes this product ready for the harshest environments. It can operate in very cold (-25°C) and hot environments (+55°C). It provides double insulation for better people and system protection from electrical shocks. It is CSA and UL certified.

Specifications

Environment

Product Certifications: CE || UL || CSA

Ambient Air Temperature For Operation: -25-55 °C

Ambient Air Temperature For Storage: -40-70 °C

Vibration Resistance7 gn +/- 1.5 mm 10-55 Hz) IEC 60068-2-6

Shock Resistance30 gn 11 ms) IEC 60068-2-27

Ip Degree Of ProtectionIP67 double insulation IEC 60529 || IP65 double insulation IEC 60529

Contractual warranty

Warranty: 18 months

Offer Sustainability

Rohs Exemption Information: Yes

Environmental Disclosure: ENVPEP111233EN

Reach Regulation: Reference contains Substances of Very High Concern above the threshold

Circularity Profile: ENVEOLI111209EN

Mercury FreeYes

Sustainable Offer StatusGreen Premium product

California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)

Complementary

Current Consumption: <= 35 mA no-load

Switching Frequency: <= 250 Hz

Status Led: 1 LED yellow)output state || 1 LED green)supply

Lens Material: PMMA

Maximum Voltage Drop: <1.5 V closed state)

Maximum Delay Recovery: 2 ms

Maximum Sensing Distance: 3 m diffuse

Enclosure Material: PBT

Output Type: solid state

[Us] Rated Supply Voltage: 12...24 V DC

Height92 mm

Maximum Delay Response2 ms

Setting-Upsensitivity adjustment

Cable Entry1 entry for M16 x 1.5 cable gland 7-10 mm

Net Weight0.2 kg

Maximum Delay First Up15 ms

Switching Capacity In Ma<= 100 mA overload and short-circuit protection)

Width31 mm

Depth77 mm

Specifications

Electrical Connection: screw-clamp terminals, 1 x 1.5 mm² or 1 x 0.75 mm² with adaptor

Discrete Output Function: 1 NO

Range Of Product: Telemecanique Photoelectric sensors XU

Sensor Name: XUX

Wiring Technique: 3-wire

Detection System: diffuse

Supply Circuit Type: DC

[Sn] Nominal Sensing Distance: 2.1-2.1 m diffuse

Discrete Output TypePNP

Type Of Output Signaldiscrete

Emissioninfrared diffuse

Materialplastic

Series Namegeneral purpose single mode

Sensor Designcompact 92 x 71

Electronic Sensor Typephoto-electric sensor
