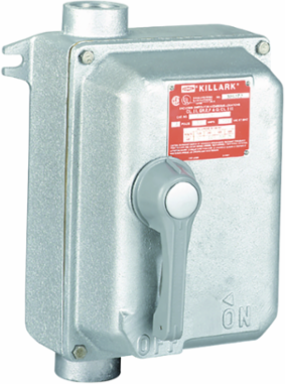

Killark DEDS-30AA Non-Fused Disconnect Switch, 30 Amp Max, 3 Poles, NEMA 3R, 4, 9, Aluminum
- MPN: DEDS-30AA
- UPC: 783936116488
- PPN: HBL-DEDS-30AA
- UNSPSC: 39122205
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
DEDS Series, 30 Amp Max, Non-Fused Disconnect Switch W/ 2 Aux Contacts
Features
- Bolted and gasketed cabinet type construction insures the exclusion of conductive or combustible dusts from entering the assembly.
- Enclosure and external handle is copper-free aluminum alloy (less than 4/10 or 1%).
- Cover bolts are stainless steel.
- External handle is vault type with standard provisions for locking in the "OFF" position with up to three padlocks.
- Provisions for locking in "ON" position available as factory modification (Add suffix SU40 to catalog number).
- Eaton (Cutler-Hammer) Type DS Switches.
- Two cast conduit hubs, one top and one bottom.
- Internal disconnect handle mechanism is a sliding plate mounted to the cover.
- Suitable for indoor/outdoor use, primarily to provide a degree of protection against windblown dust, rain, splashing water, hose directed water and damage from external ice formation.
Specifications
Key Specifications
- Country of Origin
- United States
- Hazardous Rating(s)
- Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Operating Temperature Celcius Max
- 40 Degree
- Enclosure
- Bolted
- Mounting
- Wall
- Number of Poles
- 3
- Type
- Non-Fused Disconnect
- Width
- 7.375 in
- Mounting Type
- Wall
- Number Of Poles
- 3
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- CLII NON-FUSE 30A DISC 2NO/NC
- Harmonization Code
- 8536509025
- MSDS Flag
- No
- CSA File Number
- LR11714
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936116488
Depth6.875 in
Height12.125 in
Primary Voltage600 VAC/250 VDC
Frequency Rating60 Hz
NEMA Rating3R, 4, 9(E, F, G)
Special FeaturesSuitable for indoor/outdoor use, primarily to provide a degree of protection against windblown dust, rain, splashing water, hose directed water and damage from external ice formation.
Weight14.5 lb.
Enclosure TypeBolted
Nema Rating3R, 4, 9(E, F, G)
Number Of Wires4
Class CodeD25
Freight Class Code06316011
Image Actual Or RepresentativeA
Sub Class CodeD25D251
UL File NumberE53290
SeriesDEDS Series
BOX SIZE(in)
NAICS Code3353146111
