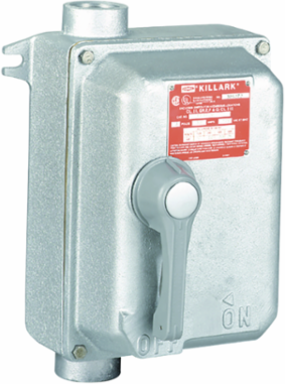

Killark DEDS-60 Non-Fused Disconnect Switch, 60 Amp Max, 3 Poles, 7-3/4 Inch Width, 19.5 lb. Weight
- MPN: DEDS-60
- UPC: 783936116440
- PPN: HBL-DEDS-60
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
DEDS Series, 60 Amp Max, Non-Fused Disconnect Switch
Features
- Bolted and gasketed cabinet type construction insures the exclusion of conductive or combustible dusts from entering the assembly.
- Enclosure and external handle is copper-free aluminum alloy (less than 4/10 or 1%).
- Cover bolts are stainless steel.
- External handle is vault type with standard provisions for locking in the "OFF" position with up to three padlocks.
- Provisions for locking in "ON" position available as factory modification (Add suffix SU40 to catalog number).
- Eaton (Cutler-Hammer) Type DS Switches.
- Two cast conduit hubs, one top and one bottom.
- Internal disconnect handle mechanism is a sliding plate mounted to the cover.
- Suitable for indoor/outdoor use, primarily to provide a degree of protection against windblown dust, rain, splashing water, hose directed water and damage from external ice formation.
Specifications
Key Specifications
- Country of Origin
- United States
- Hazardous Rating(s)
- Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Operating Temperature Celcius Max
- 40 Degree
- Weight
- 19.5 lb.
- Enclosure Type
- Bolted
- Mounting Type
- Wall
- Number Of Poles
- 3
- Type
- Non-Fused Disconnect
- Class Code
- D25
- Freight Class Code
- 06316011
- Image Actual Or Representative
- A
- Sub Class Code
- D25D251
- UL File Number
- E53290
- Series
- DEDS Series
- BOX SIZE
- (in)
- NAICS Code
- 3353146111
Depth7 in
Height15.375 in
Primary Voltage600 VAC/250 VDC
Width7.75 in
Frequency Rating60 Hz
Nema Rating3R, 4, 9(E, F, G)
Number Of Wires4
ARRA CompliantContact Manufacturer
Description - InvoiceCL II 60A NON-FUSIBLE DISC(DE)
Harmonization Code8536509025
MSDS FlagNo
CSA File NumberLR11714
MaterialAluminum, Copper Free (less than 4/10 of 1%)
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00783936116440
