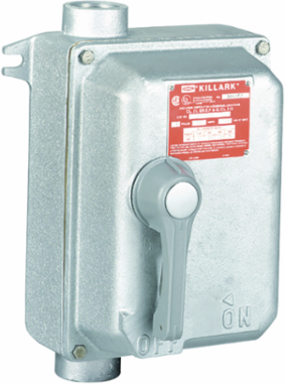

Killark DEDS-B Non-Fused Disconnect Switch Enclosure, 60A, 3 Poles, 15.375 Inch Height

MPN: DEDS-B
UPC: 783936116419
PPN: HBL-DEDS-B

Spec sheet

Compare

Loading compare button...

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$3613.75/ EA

Qty:

Loading add to cart quantity...

Description

DEDS Series, B Amp Max, Disconnect Switch Enclosure Only

Features

Bolted and gasketed cabinet type construction insures the exclusion of conductive or combustible dusts from entering the assembly.
Enclosure and external handle is copper-free aluminum alloy (less than 4/10 or 1%).
Cover bolts are stainless steel.
External handle is vault type with standard provisions for locking in the "OFF" position with up to three padlocks.
Provisions for locking in "ON" position available as factory modification (Add suffix SU40 to catalog number).
Eaton (Cutler-Hammer) Type DS Switches.
Two cast conduit hubs, one top and one bottom.
Internal disconnect handle mechanism is a sliding plate mounted to the cover.
Suitable for indoor/outdoor use, primarily to provide a degree of protection against windblown dust, rain, splashing water, hose directed water and damage from external ice formation.

Specifications

Country of Origin: United States

Hazardous Rating(s): Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2

Operating Temperature Celcius Max: 40 Degree

Width: 7.75 in

Frequency Rating: 60 Hz

Nema Rating: 3R, 4, 9(E, F, G)

Number Of Wires: 4

ARRA Compliant: Contact Manufacturer

Description - Invoice: CLII 60A ENCLOSURE ONLY (DE)

Harmonization Code: 7616995190

MSDS Flag: No

CSA File Number: LR11714

Material: Aluminum, Copper Free (less than 4/10 of 1%)

Base Unit of Measure: EA

Depth7 in

Height15.375 in

Weight19.5 lb.

Enclosure TypeBolted

Mounting TypeWall

Number Of Poles3

TypeNon-Fused Disconnect

Class CodeD25

Freight Class Code06316011

Image Actual Or RepresentativeA

Sub Class CodeD25D251

UL File NumberE53290

SeriesDEDS Series

Carton - SCC-14 Next Lower Level Sub Pack00783936116419

Certifications

EU RoHS Indicator: Contact Manufacturer
