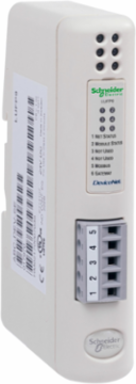

Schneider Electric LUFP9 TeSys Ultra Communication Gateway, 24VDC, DeviceNet & RJ45 Modbus

MPN: LUFP9
PPN: SCH-LUFP9

$1778.32

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

The Schneider Electric TeSys Ultra Communication Gateway is designed for seamless integration in automation and control systems, offering robust connectivity options for various applications. With a 24VDC power supply, this gateway is equipped with DeviceNet and RJ45 Modbus interfaces, ensuring reliable and efficient communication between devices. Its advanced design enhances operational flexibility, making it an essential component for optimizing motor and drive control. This gateway not only simplifies network configurations but also enhances overall system performance, making it a critical asset for modern industrial environments.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, France, Sweden, United States

Complementary Attributes

Maximum Number Of Connections	<= 8 Modbus slaves, <= 8 Modbus slaves

Important Information Attributes

Bus Type	DeviceNet, Modbus
Services	command DeviceNet 256 configurable words, configuration and adjustment Fipio by gateway mini messaging facility, monitoring DeviceNet 256 configurable words
Local Publishable Date	2026-06-27
Stocking Flag	Y
Serviceability	No
Field Service Division	PPIBS
Weee Scope	In
Scope Perimeter	At least in Europe
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Product Kit Identifier	N
Current Consumption	100 mA typical280 mA maximum
Electromagnetic Compatibility	electromagnetic emission IEC 50081-2electromagnetic immunity IEC 61000-6-2
Local Signalling	LED front panel
Product Or Component Type	communication gateway
Range Of Product	TeSys U
Sustainable Packaging	No
[Us] Rated Supply Voltage	24 V DC +/- 10 %
Package Weight(Lbs)	220.0 g
Warranty (In Months)	18

Connector Type	1 removable 5-way screw connector field busRJ45 Modbus, RJ45 to a PC
Local Data Status	Publishable
Return Indicator	N
Stock Policy	2
Traceability	No
Weee Applicability	Finished product
Weee Product Category	5
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	1852
China Rohs In Scope	No
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Compatibility Code	LUF
Device Short Name	LUF
Energy Efficiency Optimized	False
Product Availability	Stock - Normally stocked in distribution facility
Range	TeSys
Returnability	No
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8517620090

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Take Back	No
Toxic Heavy Metal Free	Yes
Ambient Air Temperature For Installation	5-50 °C
Ip Degree Of Protection	IP20
Packaging Without Single Use Plastic	No

Product Compatibility	ATS48, ATV31, TeSys U starter-controllers
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Eu Rohs Directive	Compliant
Packaging Made With Recycled Cardboard	Yes
