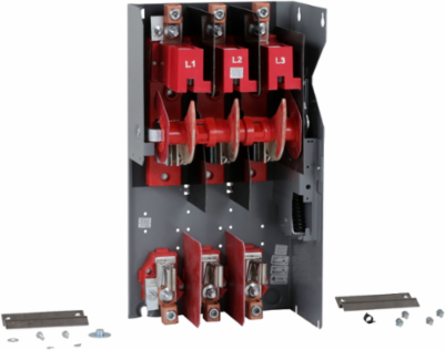

Square D 9422TG2 Flange-Mounted Disconnect Switch, 400A 600V, Variable Depth, Fusible
- MPN: 9422TG2
- UPC: 785901728412
- PPN: SCH-9422TG2
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
9422ATCF disconnect switches are designed for control panel installations. This disconnect switch is fully compatible with 9422A handle operators and 9423 door closing mechanisms. This disconnect switch will accept Class H, J, K or R fuses only. It has a rating of 400 Amps up to 250 V and 400 Amps up to 600 V. This 400 A disconnect switch is designed for flange mounting. The variable depth mounting range is 11.38 inches. Disconnect switch has horsepower ratings of 75 HP at 208 VAC, 125 HP at 240 VAC, 250 HP at 480 VAC and 350 HP at 600 VAC. Switch is also rated for 50 HP at 250 VDC and 50 HP at 600 VDC when using two poles. This disconnect switch uses 9422A operating handles. Handle is to be ordered seoparately. Disconnect switch is UL Component Recognized and CSA certified
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico, United States
Complementary Attributes
- Maximum Horse Power Rating
- 75 hp 200 V AC, 125 hp 230 V AC, 250 hp 460 V AC, 350 hp 575 V AC, 50 hp 250 V DC
Line Rated Current400 A
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Fuse Type
- R, K, J, H
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Disconnector Device Type
- fusible disconnect switch
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Or Component Type
- Disconnect Switch
- Range Of Product
- 9422T
- Sustainable Packaging
- No
- Warranty In Months
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Certificate AgencyUL Recognized, CSA
Local Publishable Date2025-11-13
Stocking FlagY
Device TypeLV equipment - LV fuse - switch
TraceabilityNo
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2541
China Rohs In ScopeNo
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Associated Fuse Rating400 A 250/600 V
Energy Efficiency OptimizedFalse
Product Mountingflange rod variable depth
Provided Equipmentordered separately
ReturnabilityYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
General Attributes
- Product Or Component Type
- Disconnect Switch
- Range Of Product
- 9422T
Provided Equipmentordered separately
ETIM
- ETIM 8
- EC001040
ETIM 9EC001040
