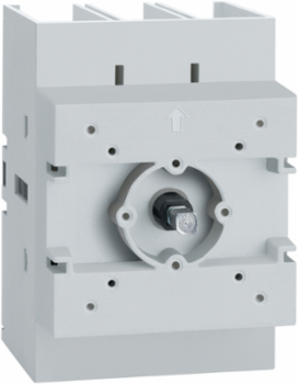

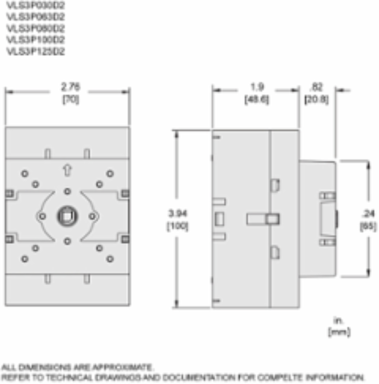

Schneider Electric VLS3P125D2 TeSys VLS Disconnect Switch, 125A, 60HP at 480VAC, Size 2, Door Mount

  • MPN: VLS3P125D2
  • PPN: SCH-VLS3P125D2
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $532.95

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    These TeSys VLS disconnect switches are for integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more. This family of disconnect switches has switches ranging from 16A to 125A. The 16A, 25A, 32A, 40A and 63A disconnect switches are UL508 motor disconnect switches rated. The 30A, 63A, 80A, 100A and 125A disconnect switches are UL98 non fusible disconnect switch rated. This 125A disconnect switch has 3 normally open poles and mounts directly in the enclosure door. Per UL and CSA this this disconnect switch has a 7.5 HP rating at 120 VAC and a 10 HP at 240 VAC single phase. Per UL and CSA this disconnect switch has a 30 HP rating at 200 to 208 VAC and 240 VAC, a 60 HP rating at 480 VAC and 600 VAC three phase. This disconnect switch has up to a 100 kA at 480 V short circuit current rating (SCCR) with a 200A Type J fuse maximum. Per IEC requirements, this disconnect switch has a 55 kW rating at 400 V, a 45 kW rating at 500 V and a 45 kW rating at 690V three phase. The screw clamp terminals will accept 10 mm solid or 16 mm stranded wire. The clamps will also accept solid or stranded wire from 12 AWG to 1 AWG. This disconnect switch is 3.94 inches tall, 2.76 inches wide and 2.76 inches deep. The switch weighs 0.80 lbs. There are many handles and accessories available this TeSys VLS disconnect switch. This TeSys VLS disconnect switch is UL Listed per UL98, CSA certified per CSA 22.2 and meets IEC 60947-3 requirements.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Czechia, Italy, United States
    Depth100 mm

    Physical Attributes

    Color
    Gray

    Complementary Attributes

    Maximum Horse Power Rating
    30 hp 200/208 V AC, 30 hp 240 V AC60 hp 480 V AC, 60 hp 600 V AC7.5 hp 120 V AC, 10 hp 240 V AC
    Rated Operational Power In W55 kW 400 V AC-23A)45 kW 500 V AC-23A), 45 kW 690 V AC-23A)

    Important Information Attributes

    Persona Type Ids
    EU, LC, OM, OM8, PB
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Mechanical Robustness
    vibrations 2...100 Hz Fc 0.7 g) IEC 60068-2-6, shocks 11 ms Ea 15 gn) IEC 60068-2-27
    [Ie] Rated Operational Current
    125 A AC-22A Ue: 500 V, 125 A AC-22A Ue: 690 V100 A AC-23A Ue: 500 V, 100 A Ue: 600 V UL98, 125 A AC-21A Ue: 400 V, 125 A AC-21A Ue: 500 V, 125 A AC-21A Ue: 690 V, 125 A AC-22A Ue: 400 V, 125 A AC-23A Ue: 400 V, 47 A AC-23A Ue: 690 V
    Connections - Terminals
    power circuit screw clamp terminals 50-50 mm² solid, power circuit screw clamp terminals 70-70 mm² flexible - without cable end
    Local Publishable Date
    2026-07-15
    Stocking Flag
    Y
    Device Type
    LV equipment - LV switch - disconnector
    Traceability
    No
    Average Life Duration
    15 year(s)
    Weee Product Category
    5
    Reach Full Compliance Status
    Free of Substances of Very High Concern above the threshold
    Reach Compliance Directive
    Free of Substances of Very High Concern above the threshold
    Rohs Eur Status
    Compliant
    Rohs Eur Full Compliance Status
    Compliant
    China Rohs Label
    1
    Without Single Use Plastic
    No
    Tier Id
    2
    Function Option Id
    STANDARD
    Product Kit Identifier
    N
    Compatibility Code
    VLS
    Device Short Name
    VLS3P
    Energy Efficiency Optimized
    False
    Intermittent Duty Class
    class 120 - 60 %
    Mechanical Durability
    30000 cycles
    Network Frequency
    50/60 Hz
    Number Of Poles
    3P
    Product Availability
    Stock - Normally stocked in distribution facility
    Product Or Component Type
    switch body
    Returnability
    Yes
    Tightening Torque
    power circuit 5-6 N.m screw clamp terminals
    Height Nominal
    70 mm
    [Icm] Rated Short-circuit Making Capacity
    3550 A 690 V
    [Ith] Conventional Free Air Thermal Current
    125 A (at 55 °C)
    [Uimp] Rated Impulse Withstand Voltage
    8 kV
    Nbr. Of Units In Pkg.
    1
    Take-back
    No
    Customs Code
    8536509065
    Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
    Market SegmentationCommercial, Industrial
    Certificate AgencycULus, GL
    [Ue] Rated Operational Voltage600 V AC 50/60 Hz UL 508, 690 V AC 50/60 Hz
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy1
    ServiceabilityNo
    Field Service DivisionPPIBS
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    Reach Full Compliance Status IdNOT_CONTAINING_SVHC
    Rohs Eur In ScopeYes
    Rohs Eur Conformity Date1943
    China Rohs In ScopeNo
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier2
    Function OptionStandard
    Awg Gauge12 AWG...1 AWG copper
    Contacts Type And Composition3 NO
    Electrical Durability30000 cycles AC-21
    Fire Resistance960 °C IEC 60695-2-11
    Making Capacity1250 A 690 V AC-23A187.5 A 690 V AC-21A375 A 690 V AC-22A
    Mounting Supportdoor
    Network TypeAC
    Performance Levelhigh performance
    Product NameTeSys VARIO LS
    RangeTeSys
    Sustainable PackagingNo
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Width Nominal70 mm
    [Icw] Rated Short-time Withstand Current2500 A 690 V 1 s
    [Ithe] Conventional Enclosed Thermal Current100 A
    Rated Conditional Short-circuit Current50 kA 400 V 125 A gG
    Package Weight(Lbs)433.000 g
    Warranty (In Months)18

    Environment Attributes Main

    China Rohs Regulation
    Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
    Product Compatibility
    fuse J 100 A maximum: 50 kA at 600 V ACfuse T 100 A maximum: 50 kA at 600 V ACcircuit-breaker 250 A maximum: 100 kA at 480 V AC, fuse CC 200 A maximum: 100 kA at 480 V AC, fuse J 200 A maximum: 100 kA at 480 V AC, fuse T 200 A maximum: 100 kA at 480 V AC, fuse CC 100 A maximum: 50 kA at 600 V AC
    Reach Free Shvc
    Yes
    Toxic Heavy Metal Free
    Yes
    Eu Rohs Directive
    Compliant
    Packaging Made With Recycled Cardboard
    Yes
    Reach Free Of Svhc
    Yes
    Ambient Air Temperature For Operation-25-55 °C, -25-55 °C
    Take BackNo
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Ip Degree Of ProtectionIP20 conforming to IEC 60529
    Packaging Without Single Use PlasticNo
    Reach RegulationFree of Substances of Very High Concern above the threshold

    General Attributes

    Product Or Component Type
    switch body

    ETIM

    ETIM 8
    EC000216
    ETIM 9EC000216
