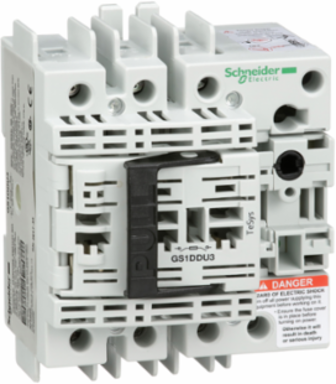

Schneider Electric GS1DDU3 TeSys GS Switch Disconnector Fuse 3P 30A Fuse Type UL Size CC
- MPN: GS1DDU3
- PPN: SCH-GS1DDU3
CAD
$276.86
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys GS fuse switch-disconnector, 3 poles (3P), 30A/800V, to be used with class CC fuse links up to 30A, for motor applications up to 15kW@400V AC-23. To be equipped with a direct operating handle GS1AH106 (to be ordered separately), or with an external front side mounting operating handle (several models available). It provides screw terminals with 3P terminal shrouds, high short circuit current rating 100kA@600V. Add-on auxiliary contact modules front mounting GS1AM (early-break and position signaling) can complete the assembly (to be ordered separately). UL/CSA certified.
Features
- Designed with a space-saving 30-Amp frame, this TeSys GS non-fusible disconnect switch provides a reliable, centralized point of power isolation for three-phase motor circuits. Its streamlined footprint allows industrial panel builders to maximize internal rail space without sacrificing the heavy-duty performance required for demanding automation and manufacturing environments.
- Engineered to safely handle up to 600V, this switch-disconnector is optimized for the rigorous demands of UL 98 applications, including motor branch circuit protection and service entrance equipment. The high dielectric strength and robust contact design ensure long-term durability and arc flash mitigation, providing a critical layer of safety for your downstream machinery and maintenance personnel.
- Featuring a dedicated shaft-driven mechanism, the GS1DDU3 is designed for seamless integration with external, lockable rotary handles. This setup allows technicians to perform OSHA-compliant Lockout/Tagout (LOTO) procedures from the exterior of the cabinet, significantly reducing the risk of accidental contact with live high-voltage components during routine system isolation.
- Fully UL Listed and CSA Certified, this disconnect switch guarantees compliance with National Electrical Code (NEC) requirements for motor circuits and power distribution. By utilizing factory-tested Schneider Electric hardware, you ensure your industrial installation passes strict inspections and provides consistent, fail-safe performance in heavy-duty commercial and manufacturing settings.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | France, United States |
|---|
| Depth | 83.5 mm |
|---|
Physical Attributes
| Fuse Size | CC |
|---|
Complementary Attributes
| Rated Operational Power In W | 15 kW 400 V18.5 kW 500 V25 kW 690 V |
|---|
Important Information Attributes
| Persona Type Ids | EU, LC, OM, OM8, PB |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Mounting Support | rail, plate |
| Poles Description | 3P |
| Certificate Agency | LROS (Lloyds register of shipping), LOVAG, ASEFA |
| Local Publishable Date | 2026-06-27 |
| Stocking Flag | Y |
| Device Type | LV equipment - LV fuse - switch |
| Traceability | No |
| Average Life Duration | 15 year(s) |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2003008EN |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1911 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Compatibility Code | GS1 DD |
| Design | compact |
| Device Short Name | GS1 DD |
| Energy Efficiency Optimized | False |
| Fuse Type | UL |
| Network Frequency | 50/60 Hz |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Or Component Type | switch-disconnector-fuse |
| Range | TeSys |
| Sustainable Packaging | No |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Pep Code | ENVPEP2003008EN |
| Width Nominal | 97 mm |
| [Ith] Conventional Free Air Thermal Current | 30 A (at 40 °C) |
| [Uimp] Rated Impulse Withstand Voltage | 8 kV |
| Short-circuit Withstand | 5.5 kA |
| Package Weight(Lbs) | 558.000 g |
| Warranty (In Months) | 18 |
| Persona Type Names | End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Network Type | AC, DC |
| Type Of Operating Handle | external frontal, direct frontal |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 1 |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Applicability | Finished product |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Contacts Type And Composition | 3 NO |
| Device Application | protection |
| Electrical Durability | 6000 cycles |
| Fire Resistance | 960 °C body IEC 60695-2-1 |
| Mechanical Durability | 10000 cycles |
| Number Of Poles | 3P |
| Product Name | TeSys GS |
| Protected Poles Description | 3t |
| Returnability | Yes |
| Tightening Torque | power circuit 3-3 N.m |
| Thermal Current 3 | 30 A |
| Height Nominal | 116 mm |
| [Ie] Rated Operational Current | 30 A |
| [Ui] Rated Insulation Voltage | 690 V |
| Connections - Terminals | power circuit: lugs-ring terminals 2-6 mm² |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536509045 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Ambient Air Temperature For Storage | -40-80 °C, -40-80 °C |
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Circularity Profile | ENVEOLI2003008EN |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2003008EN |
| Ambient Air Temperature For Operation | -20-70 °C, -20-70 °C |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2003008EN |
| Ip Degree Of Protection | IP20 IEC 60529 with terminal cover) |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
General Attributes
| Product Or Component Type | switch-disconnector-fuse |
|---|
ETIM
| ETIM 8 | EC001040 |
|---|
| ETIM 9 | EC001040 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
