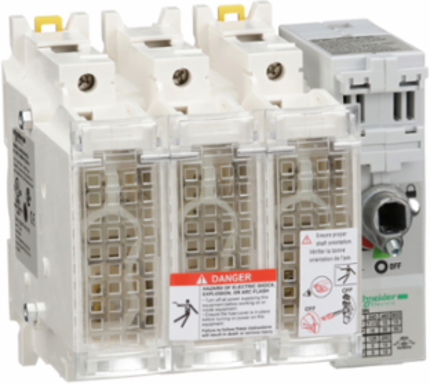

Schneider Electric GS2GU3N TeSys GS Switch Disconnector Fuse, 3P, 60A, Type UL, Fuse Size J
- MPN: GS2GU3N
- PPN: SCH-GS2GU3N
CAD
$372.23
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys GS fuse switch-disconnector, 3 poles (3P), 60A/750V, to be used with class J fuse links up to 60A, for motor applications up to 30kW@400V AC-23. To be equipped with an external front side mounting operating handle GS2AH (several models available). It provides screw terminals with 3P terminal shrouds, high short circuit current rating 100kA@600V. Add-on auxiliary contact modules, front mounting GS1AM (early-break and position signaling), side mounting GS1AN (position signaling) can complete the assembly (to be ordered separately). UL/CSA certified.
Features
- The Schneider Electric GS2GU3N is a 3-pole, 60A fusible disconnect switch designed for high-performance motor control and branch circuit protection. Part of the TeSys GS family, it combines a high-speed manual disconnect with a specialized fuse holder. This "IEC-style" design is favored in Canadian industrial panels because it takes up significantly less space than traditional NEMA-style safety switches.
- Rated for 60 Amps at 600V AC, the GS2GU3N is built for substantial industrial loads. In a standard 3-phase system, it can handle motors up to 50 HP at 600V or 30 HP at 480V. It is also rated for DC applications up to 250V DC, making it a versatile choice for solar arrays or DC motor drives in the Canadian resource sector.
- This unit is specifically designed to be used with Class J fuses (like the Mersen AJT series). Class J fuses are physically compact yet provide an incredible 100kA short-circuit current rating (SCCR). This high level of protection is essential for Canadian manufacturing facilities located near utility transformers, as it ensures the switch can safely clear catastrophic electrical faults.
- It is important to note that the GS2GU3N is the switch body only. To make it functional, it must be paired with an external rotary handle (e.g., GS2AH130) and a shaft extension (e.g., GS2AE series). This modularity allows the switch to be mounted deep inside a cabinet while the handle is mounted on the door, keeping operators safe from arc-flash hazards.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France, Mexico, United States

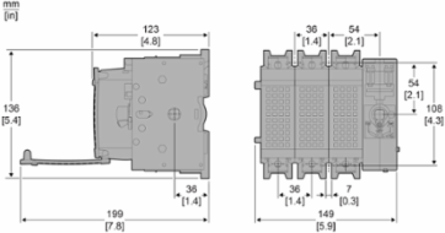

Depth123 mm
Physical Attributes
- Fuse Size
- J
Complementary Attributes
- Rated Operational Power In W
- 30 kW 400 V40 kW 500 V55 kW 690 V
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Network Type
- DC, AC
- Certificate Agency
- CSA C22.2 No 4, UL98
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.33751821862348175, 0.3 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 8 kg CO2 eq., 7.5242914979757085
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- PPIBS
- Service Catalog Item
- Finished good
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2003009EN
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1911
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Contacts Type And Composition
- 3 NO
- Device Short Name
- GS2GU
- Energy Efficiency Optimized
- False
- Fuse Type
- UL
- Mounting Support
- plate
- Number Of Poles
- 3P
- Product Name
- TeSys GS
- Protected Poles Description
- 3t
- Returnability
- Yes
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 209 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Pep Code
- ENVPEP2003009EN
- Pep Verification Date
- 2020-04-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- Manufacturing Plant Location: France or Tunisia
- Energy Model - Use [B6]
- Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
- Height Nominal
- 136 mm
- [Ie] Rated Operational Current
- 60 A
- [Ui] Rated Insulation Voltage
- 750 V
- Connections - Terminals
- power circuit: lugs-ring terminals 6-16 mm²
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]
- 8.85
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Poles Description3P
Carbon Footprint Of The Distribution Phase [A4]0.9244129554655871, 0.9 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.1 kg CO2 eq., 0.051595141700404856
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]200 kg CO2 eq., 199.7863636363637
Local Publishable Date2026-07-07
Stocking FlagN
Device TypeLV equipment - LV fuse - switch
TraceabilityNo
Average Life Duration15 year(s)
Weee ApplicabilityFinished product
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Device Applicationprotection
Electrical Durability6000 cycles
Fire Resistance960 °C body
Mechanical Durability10000 cycles
Network Frequency50/60 Hz
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component Typeswitch-disconnector-fuse
RangeTeSys
Software VersionEIME v5.8.1
Tightening Torquepower circuit 3.5-3.5 N.m
Type Of Operating Handleexternal frontal
Thermal Current 360 A
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionEstablish, support and interrupt for 20 years rated currents in normal conditions of circuit characterized by the current of 400A, including any conditions specified for overload in operation characterized by the current of 400A, for the operating voltage of 690VAC for the category of use AC-23 A.
Functional-unit UnitUnit
Energy Consumption On Product Lifetime In Kwh407.997
Energy Model - Installation [A5]Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
Energy Model - End Of Life [C1-c4]Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
Width Nominal149.3 mm
[Ith] Conventional Free Air Thermal Current60 A (at 40 °C)
[Uimp] Rated Impulse Withstand Voltage8 kV
Short-circuit Withstand17.6 kA
Package Weight(Lbs)1.770 kg
Warranty (In Months)18
Customs Code8536509065
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Ambient Air Temperature For Storage
- -40-80 °C, -40-80 °C
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 208.62418145012887
- Environmental Disclosure
- ENVPEP2003009EN
- Ip Degree Of Protection
- IP20 IEC 60529 with terminal cover)
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2020-04-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
Ambient Air Temperature For Operation-20-70 °C, -20-70 °C
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2003009EN
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP2003009EN
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- switch-disconnector-fuse
ETIM
- ETIM 8
- EC001040
ETIM 9EC001040
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
