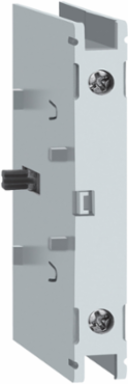

Schneider Electric VLS1P063R2S TeSys VLS Disconnect Switch, 63A, 1NO, DIN Rail Mount, 3.94 Inch Height

  • MPN: VLS1P063R2S
  • PPN: SCH-VLS1P063R2S
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $72.97

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    These TeSys VLS disconnect switches are for integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more. This family of disconnect switches has switches ranging from 16A to 125A. The 16A, 25A, 32A, 40A and 63A disconnect switches are UL508 motor disconnect switches rated. The 30A, 63A, 80A, 100A and 125A disconnect switches are UL98 non fusible disconnect switch rated. This fourth pole adder can be added to a VLS3P063R2 DIN rail mount switch. This fourth pole adder for DIN rail mounted devices can be mounted on the right or left hand side. This simultaneous closing adder pole has one normally open contact The operational voltage of this fourth pole adder module is 600 Vac 50/60 Hz. This fourth pole adder module has a 60 A current rating. Fourth pole adder pole is 3.94 inches tall, 0.91 inches wide and 1.73 inches deep. It weighs 0.24 lbs. This fourth pole adder block is cULus Listed and meets IEC 60947-3 requirements.

    Documentation & Downloads

    Specifications

    Key Specifications

    Network Frequency
    50/60 Hz
    Range Compatibility
    TeSys TeSys VARIO LS VLS3P
    Performance Level
    high performance
    Contacts Type And Composition
    1 NO
    Contact Operation
    simultaneous
    Device Short Name
    VLS1P
    Network TypeAC
    Product Or Component Typeadditional pole
    RangeTeSys
    Suitability For Isolationyes
    Poles Description1P

    Complementary

    [Ue] Rated Operational Voltage
    690 V AC 50/60 Hz
    Intermittent Duty Class
    class 120 - 60 %
    Mounting Support
    DIN rail
    Net Weight
    0.11 kg
    Making Capacity
    94.5 A 690 V AC-21A || 189 A 690 V AC-22A || 630 A 690 V AC-23A
    Connections - Terminals
    power circuit screw clamp terminals 50-50 mm² solid || power circuit screw clamp terminals 70-70 mm² flexible - without cable end
    Electrical Durability
    30000 cycles AC-21
    Mechanical Durability
    30000 cycles
    Width
    23 mm
    Depth
    48.6 mm
    Rated Operational Power In W
    30 kW 400 V AC-23A) || 45 kW 500 V AC-23A) || 45 kW 690 V AC-23A)
    [Icw] Rated Short-Time Withstand Current
    2500 A 690 V 1 s
    Height100 mm
    [Ith] Conventional Free Air Thermal Current63 A (at 55 °C)
    [Ithe] Conventional Enclosed Thermal Current63 A
    [Uimp] Rated Impulse Withstand Voltage8 kV
    Mounting Locationright || left
    [Icm] Rated Short-Circuit Making Capacity3550 A 690 V
    [Ie] Rated Operational Current60 A Ue: 600 V UL98 || 63 A AC-21A Ue: 400 V || 63 A AC-21A Ue: 500 V || 63 A AC-21A Ue: 690 V || 63 A AC-22A Ue: 400 V || 63 A AC-22A Ue: 500 V || 63 A AC-22A Ue: 690 V || 63 A AC-23A Ue: 400 V || 63 A AC-23A Ue: 500 V || 47 A AC-23A Ue: 690 V
    Colourgrey
    Tightening Torquepower circuit 5-6 N.m screw clamp terminals
    Breaking Capacity94.5 A 690 V AC-21A) || 189 A 690 V AC-22A) || 504 A 690 V AC-23A)
    Rated Conditional Short-Circuit Current50 kA 400 V 63 A gG

    Offer Sustainability

    Rohs Exemption Information
    Yes
    Toxic Heavy Metal Free
    Yes
    Reach Free Of Svhc
    Yes
    Eu Rohs Directive
    Compliant
    Mercury FreeYes
    Reach RegulationFree of Substances of Very High Concern above the threshold
    China Rohs RegulationPro-active China RoHS declaration (out of China RoHS legal scope)

    Environment

    Product Certifications
    cULus || GL
    Standards
    UL98 || CSA C22.2 No 4 || IEC 60947-3
    Mechanical Robustness
    vibrations 2...100 Hz Fc 0.7 g) IEC 60068-2-6 || shocks 11 ms Ea 15 gn) IEC 60068-2-27
    Ambient Air Temperature For Operation-25-55 °C
    Ip Degree Of ProtectionIP20 IEC 60529
    Fire Resistance960 °C IEC 60695-2-11
