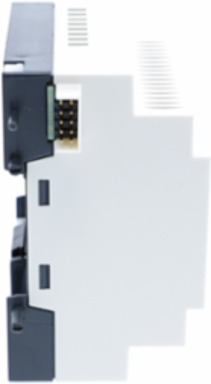

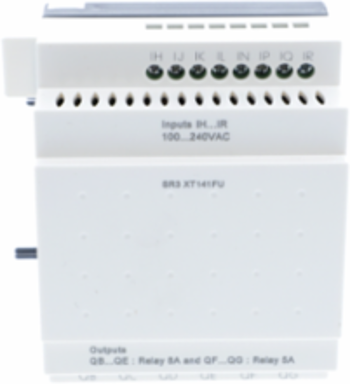

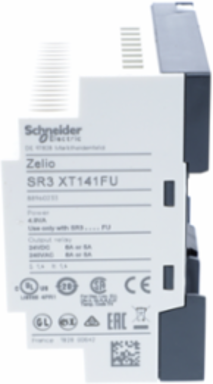

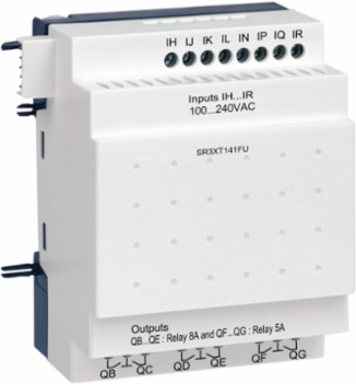

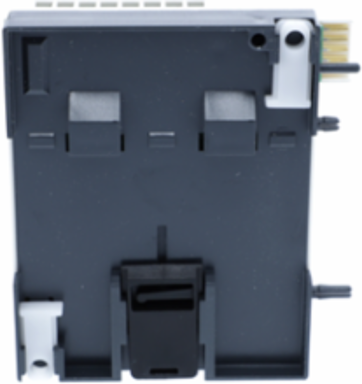

Schneider Electric SR3XT141FU Zelio Logic 14 I/O Expansion Module, 100-240V AC, IP20, 0.22 kg
- MPN: SR3XT141FU
- PPN: SCH-SR3XT141FU
CAD
$166.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Zelio Logic SR3 discrete I/O extension module smart relays uses a supply voltage of 100V-240V alternating current. It has 14 inputs / outputs contact with screw-clamp terminals. It enables simple ladder programming, adapted for non-specialists.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, France, United States |
|---|
Complementary Attributes
| Maximum Altitude Transport | 3048 m |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM, OM8 |
|---|---|
| Current State 0 Guaranteed | <= 0.5 mA discrete input), <= 0.5 mA discrete input)<= 0.5 mA discrete input), <= 0.5 mA discrete input) |
| Electrical Durability | AC-15 500000 cycles 230 V, 0.9 A relay output IEC 60947-5-1AC-12 500000 cycles 230 V, 1.5 A relay output IEC 60947-5-1, DC-13 500000 cycles 24 V, 0.6 A relay output IEC 60947-5-1, DC-12 500000 cycles 24 V, 1.5 A relay output IEC 60947-5-1 |
| Response Time | 50...255 ms FBD from state 1 to state 0)discrete input, 50 ms ladder from state 0 to state 1)discrete input, 50 ms ladder from state 1 to state 0)discrete input50...255 ms FBD from state 0 to state 1)discrete input10 ms from state 0 to state 1)relay output, 5 ms from state 1 to state 0)relay output |
| Voltage State 0 Guaranteed | <= 40 V discrete input, <= 40 V discrete input<= 40 V discrete input, <= 40 V discrete input |
| Certificate Agency | C-tick, GOST, CSA, GL, UL |
| Carbon Footprint Of The Distribution Phase [A4] | 0.07167315863669017, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | kg CO2 eq., 0 |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 152 kg CO2 eq., 151.92035887435827 |
| Local Publishable Date | 2026-03-26 |
| Stocking Flag | N |
| Device Type | PLC System - PLC Component |
| Traceability | Yes |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2011013EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1846 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Market Segmentation | Industrial |
| Checks | program memory on each power up |
| Contacts Type And Composition | NO relay output |
| Mechanical Durability | 10000000 cycles relay output |
| Operating Rate In Hz | 0.1 Hz at Ie)relay output10 Hz no load)relay output |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | Zelio Logic |
| Reverse Polarity Protection | with |
| Supply Frequency | 50/60 Hz |
| Sustainable Packaging | Yes |
| Total Lifecycle Carbon Footprint | 155 kg CO2 eq. |
| Pep Code | ENVPEP2011013EN |
| Pep Verification Date | 2026-06-26 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Manufacturing [A1-a3] | Electricity mix; Consumption mix; Low voltage; 2022; France, FR |
| Energy Model - Use [B6] | Electricity mix; Consumption mix; Low voltage; 2022; Italy, IT |
| Recyclability Potential In % | 10 |
| [Us] Rated Supply Voltage | 100...240 V AC |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8538908180 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder |
|---|---|
| Current State 1 Guaranteed | >= 0.17 mA discrete input), >= 0.17 mA discrete input)>= 0.17 mA discrete input), >= 0.17 mA discrete input) |
| Environmental Characteristic | EMC directive conforming to IEC 61000-6-2, EMC directive conforming to IEC 61000-6-3, EMC directive conforming to IEC 61000-6-4, EMC directive conforming to IEC 61131-2 zone Blow voltage directive conforming to IEC 61131-2 |
| Switching Capacity In Ma | >= 10 mA 12 V relay output), >= 10 mA 12 V relay output), >= 10 mA 12 V relay output)>= 10 mA 12 V relay output), >= 10 mA 12 V relay output), >= 10 mA 12 V relay output) |
| Voltage State 1 Guaranteed | >= 79 V discrete input, >= 79 V discrete input>= 79 V discrete input, >= 79 V discrete input |
| Connections - Terminals | screw terminals, 1 x 0.25...1 x 2.5 mm² 24 AWG...14 AWG) flexible with cable endscrew terminals, 2 x 0.25...2 x 0.75 mm² 24 AWG...18 AWG) flexible with cable end, screw terminals, 1 x 0.2...1 x 2.5 mm² 25 AWG...14 AWG) semi-solid, screw terminals, 1 x 0.2...1 x 2.5 mm² 25 AWG...14 AWG) solidscrew terminals, 2 x 0.2...2 x 1.5 mm² 24 AWG...16 AWG) solid |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.38292735165993547, 0.4 kg CO2 eq. |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 2 kg CO2 eq., 2.1875575511110843 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Serviceability | No |
| Field Service Division | IDIBS |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Clock Drift | 12 min/year 0-55 °C |
| Cycle Time | 6-90 ms |
| Number Or Control Scheme Lines | 120-120 ladder |
| Overvoltage Category | III conforming to IEC 60664-1 |
| Product Or Component Type | discrete I/O extension module |
| Returnability | Yes |
| Software Version | v6.2.5-6 |
| Supply Voltage Limits | 85-264 V |
| Tightening Torque | 0.5 N.m |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2024-01 |
| Pcr Version | PCR-4-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | To provide automated control of simple systems from 10 to 40 I/O for 10 years 100% of the time with a power consumption of 6W.To provide automated control of simple systems from 10 to 40 I/O for 10 years 100% of the time with a power consumption of 6W. |
| Functional-unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 350.4 |
| Energy Model - Installation [A5] | No energy used |
| Energy Model - End Of Life [C1-c4] | Global, European and French datasets are used. |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV EN/IEC 60947-1 and EN/IEC 60664-1 |
| Disturbance Radiated/Conducted | class B EN 55022-11 group 1 |
| Package Weight(Lbs) | 203.000 g |
| Warranty (In Months) | 18 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2, -20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2, -20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2, -20-55 °C IEC 60068-2-1 and IEC 60068-2-2, -20-55 °C IEC 60068-2-1 and IEC 60068-2-2-20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2, -20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2, -20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2 |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Carbon Footprint | 154.56251693576598 |
| Environmental Disclosure | ENVPEP2011013EN |
| Ip Degree Of Protection | IP20 IEC 60529 terminal block)IP40 IEC 60529 front panel) |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP2011013EN |
| Pcr Version | PCR-4-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Ambient Air Temperature For Storage | -40-70 °C, -40-70 °C |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI2011013EN |
| Eu Rohs Directive | Compliant By Exemption |
| Operating Altitude | 6561.68 ft (2000 m) |
| Packaging Without Single Use Plastic | Yes |
| Relative Humidity | 95-95 % without condensation or dripping water |
| Pep Verification Date | 2026-06-26 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
General Attributes
| Product Or Component Type | discrete I/O extension module |
|---|
| Range Of Product | Zelio Logic |
|---|
ETIM
| ETIM 8 | EC001417 |
|---|
| ETIM 9 | EC001417 |
|---|
Output Attributes
| Output Thermal Current | 5 A for 2 outputs relay output, 8 A for 4 outputs relay output |
|---|---|
| Output Voltage Limits | 5...30 V DC relay output)24...250 V AC |
| Number Of Outputs | 6 relay |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Input Attributes
| Discrete Input Frequency | 57...63 Hz, 47...53 Hz |
|---|---|
| Discrete Input Number | 8 |
| Input Impedance | 350 kOhm discrete input |
| Discrete Input Current | 0.6 mA |
|---|---|
| Discrete Input Voltage | 100...240 V AC |
