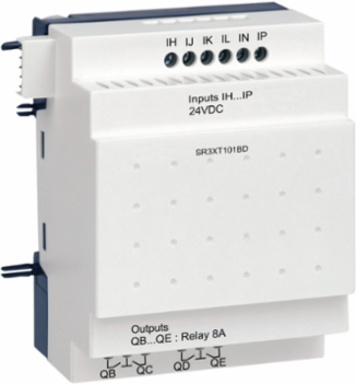

Schneider Electric SR3XT101BD Zelio Logic Discrete I/O Extension Module, 10 IO, 24V DC

  • MPN: SR3XT101BD
  • PPN: SCH-SR3XT101BD
  • UNSPSC: 39122331
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $119.34

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This Zelio Logic SR3 discrete I/O extension module smart relays uses a supply voltage of 24V direct current. It has 10 inputs / outputs contact with screw-clamp terminals. It enables simple ladder programming, adapted for non-specialists.

    Features

    • Simple ladder programming, adapted for non-specialists
    • Discovery package, coming with Zelio Soft programming software: the simplest way to learn and use this relay
    • Built-in EEPROM flash memory for data backup up to 10 years: easy-to-recover after a power shortage or incident
    • More I/O than SR2 model, for larger applications

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of OriginFrance
    Weight181 g

    Complementary Attributes

    Maximum Altitude Transport3048 m
    Us Rated Supply Voltage24 V DC
    Uimp Rated Impulse Withstand Voltage4 kV EN/IEC 60947-1 and EN/IEC 60664-1

    Important Information Attributes

    Persona Type IdsEU, OM, OM8
    Current State 0 Guaranteed<= 0.5 mA IB...IG used as discrete input circuit), <= 0.5 mA IB...IG used as discrete input circuit), <= 0.75 mA I1...IA and IH...IR discrete input circuit), <= 0.75 mA I1...IA and IH...IR discrete input circuit)<= 0.5 mA IB...IG used as discrete input circuit), <= 0.5 mA IB...IG used as discrete input circuit), <= 0.75 mA I1...IA and IH...IR discrete input circuit), <= 0.75 mA I1...IA and IH...IR discrete input circuit)
    Electrical DurabilityAC-15 500000 cycles 230 V, 0.9 A relay output IEC 60947-5-1AC-12 500000 cycles 230 V, 1.5 A relay output IEC 60947-5-1, DC-13 500000 cycles 24 V, 0.6 A relay output IEC 60947-5-1, DC-12 500000 cycles 24 V, 1.5 A relay output IEC 60947-5-1
    Switching Capacity In Ma>= 10 mA 12 V relay output), >= 10 mA 12 V relay output), >= 10 mA 12 V relay output)>= 10 mA 12 V relay output), >= 10 mA 12 V relay output), >= 10 mA 12 V relay output)
    Voltage State 1 Guaranteed>= 15 V I1...IA and IH...IR discrete input circuit, >= 15 V I1...IA and IH...IR discrete input circuit, >= 15 V IB...IG used as discrete input circuit, >= 15 V IB...IG used as discrete input circuit>= 15 V I1...IA and IH...IR discrete input circuit, >= 15 V I1...IA and IH...IR discrete input circuit, >= 15 V IB...IG used as discrete input circuit
    Certificate AgencyGL, C-tick, UL, GOST, CSA
    Carbon Footprint Of The End Of Life Phase C1 To C40.34142783571649415, 0.3 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase A1 To A32 kg CO2 eq., 1.950482348527617
    Local Data StatusPublishable
    Return IndicatorY
    ServiceabilityNo
    Field Service DivisionIDIBS
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label5
    Without Single Use PlasticYes
    Tier Id1
    Function Option IdSTANDARD
    Market Segmentation IdINDUSTRIAL
    Product Kit IdentifierN
    Clock Drift12 min/year 0-55 °C
    Counting Frequency1 kHz discrete input
    Mechanical Durability10000000 cycles relay output
    Operating Rate In Hz0.1 Hz at Ie)relay output10 Hz no load)relay output
    Product AvailabilityStock - Normally stocked in distribution facility
    Range Of ProductZelio Logic
    ReturnabilityYes
    Software Versionv6.2.5-6
    Sustainable PackagingYes
    Total Lifecycle Carbon Footprint154 kg CO2 eq.
    Database Version2024-01
    Disturbance Radiated/Conductedclass B EN 55022-11 group 1
    Customs Code8538908180
    Functional Unit DescriptionTo provide automated control of simple systems from 10 to 40 I/O for 10 years 100% of the time with a power consumption of 6W.To provide automated control of simple systems from 10 to 40 I/O for 10 years 100% of the time with a power consumption of 6W.
    Functional Unit Unitunit
    Energy Consumption On Product Lifetime In Kwh350.4
    Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
    Current State 1 Guaranteed>= 1.2 mA IB...IG used as discrete input circuit), >= 1.2 mA IB...IG used as discrete input circuit), >= 2.2 mA I1...IA and IH...IR discrete input circuit), >= 2.2 mA I1...IA and IH...IR discrete input circuit)>= 1.2 mA IB...IG used as discrete input circuit), >= 1.2 mA IB...IG used as discrete input circuit), >= 2.2 mA I1...IA and IH...IR discrete input circuit), >= 2.2 mA I1...IA and IH...IR discrete input circuit)
    Environmental CharacteristicEMC directive conforming to IEC 61000-6-2, EMC directive conforming to IEC 61000-6-3, EMC directive conforming to IEC 61000-6-4, EMC directive conforming to IEC 61131-2 zone Blow voltage directive conforming to IEC 61131-2
    Voltage State 0 Guaranteed<= 5 V I1...IA and IH...IR discrete input circuit, <= 5 V I1...IA and IH...IR discrete input circuit, <= 5 V IB...IG used as discrete input circuit, <= 5 V IB...IG used as discrete input circuit<= 5 V I1...IA and IH...IR discrete input circuit, <= 5 V I1...IA and IH...IR discrete input circuit, <= 5 V IB...IG used as discrete input circuit
    Connections Terminalsscrew terminals, 1 x 0.25...1 x 2.5 mm² 24 AWG...14 AWG) flexible with cable endscrew terminals, 2 x 0.25...2 x 0.75 mm² 24 AWG...18 AWG) flexible with cable end, screw terminals, 1 x 0.2...1 x 2.5 mm² 25 AWG...14 AWG) semi-solid, screw terminals, 1 x 0.2...1 x 2.5 mm² 25 AWG...14 AWG) solidscrew terminals, 2 x 0.2...2 x 1.5 mm² 24 AWG...16 AWG) solid
    Carbon Footprint Of The Distribution Phase A40.06390562420315724, 0.1 kg CO2 eq.
    Carbon Footprint Of The Installation Phase A5kg CO2 eq., 0
    Carbon Footprint Of The Use Phase B2 B3 B4 B6152 kg CO2 eq., 151.92035887435827
    Local Publishable Date2026-01-12
    Device TypePLC System - PLC Component
    TraceabilityYes
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI2011013EN
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1846
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Market SegmentationIndustrial
    Checksprogram memory on each power up
    Contacts Type And CompositionNO relay output
    Cycle Time6-90 ms
    Number Or Control Scheme Lines120-120 ladder
    Overvoltage CategoryIII conforming to IEC 60664-1
    Product Or Component Typediscrete I/O extension module
    Response Time10 ms from state 0 to state 1)relay output5 ms from state 1 to state 0)relay output
    Reverse Polarity Protectionwith
    Supply Voltage Limits19.2-30 V
    Tightening Torque0.5 N.m
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Data Sourceextrapolated product
    Nbr. Of Units In Pkg.1
    Warranty In Months18
    Functional Unit Quantity1
    Reference Lifetime In Y10
    Recyclability Potential In %10

    Environment Attributes Main

    Ambient Air Temperature For Operation-20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2, -20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2, -20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2, -20-55 °C IEC 60068-2-1 and IEC 60068-2-2, -20-55 °C IEC 60068-2-1 and IEC 60068-2-2-20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2, -20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2, -20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2
    Take BackNo
    China Rohs RegulationX
    Carbon Footprint154.27617468280556
    Environmental DisclosureENVPEP2011013EN
    Ip Degree Of ProtectionIP20 IEC 60529 terminal block)IP40 IEC 60529 front panel)
    Packaging Made With Recycled CardboardYes
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep CodeENVPEP2011013EN
    Pcr VersionPCR-4-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Circularity ProfileENVEOLI2011013EN
    Eu Rohs DirectiveCompliant By Exemption
    Operating Altitude6561.68 ft (2000 m)
    Packaging Without Single Use PlasticYes
    Relative Humidity95-95 % without condensation or dripping water
    Pep Verification Date2026-06-26
    Psr VersionPSR-0005-ed3.1-EN-2023 12 08

    General Attributes

    Product Or Component Typediscrete I/O extension module
    Range Of ProductZelio Logic

    ETIM

    ETIM 8EC001417
    ETIM 10EC001417
    ETIM 9EC001417

    Output Attributes

    Number Of Outputs4 relay
    Output Voltage Limits24...250 V AC relay output)5...30 V DC relay output)
    Output Thermal Current8 A for all 4 outputs relay output

    Contractual Warranty Attributes

    Warranty Period18 months
    Warranty18 months

    Input Attributes

    Discrete Input Current4 mA
    Discrete Input Typeresistive
    Input Compatibility3-wire proximity sensors PNP discrete input
    Discrete Input Number6 IEC 61131-2 Type 1
    Discrete Input Voltage24 V DC
    Input Impedance12 kOhm IB...IG used as discrete input circuit7.4 kOhm I1...IA and IH...IR discrete input circuit

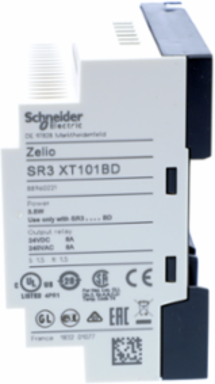

    Zelio Logic Discrete I/O Extension Module, 10 IO, 24V DC

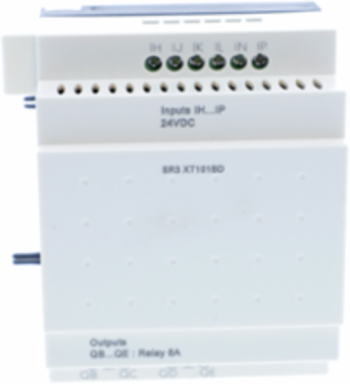

    Zelio Logic Discrete I/O Extension Module, 10 IO, 24V DC

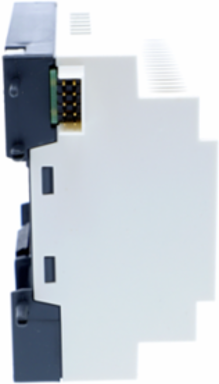

    Zelio Logic Discrete I/O Extension Module, 10 IO, 24V DC

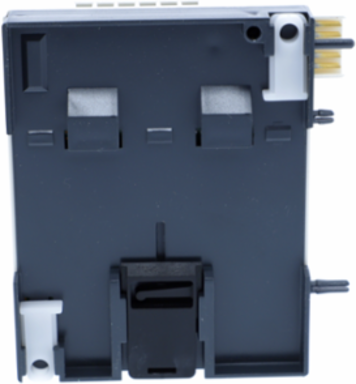

    Zelio Logic Discrete I/O Extension Module, 10 IO, 24V DC
