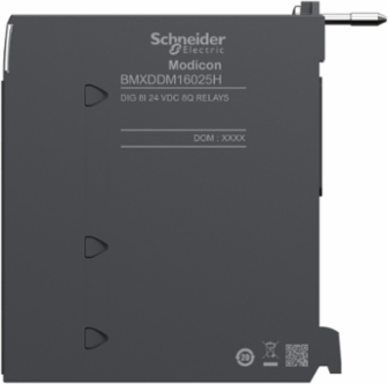

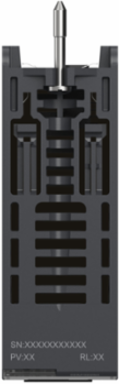

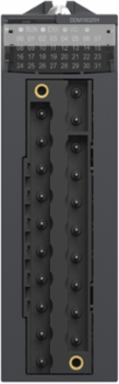

Schneider Electric BMXDDM16025H Discrete I/O Module X80, 8 Inputs, 8 Outputs, Relay, 24 V DC

MPN: BMXDDM16025H
PPN: SCH-BMXDDM16025H

$911.94

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This discrete mixed I/O relay module is part of the Modicon X80 range, an offer of common input/output and communication modules, power supplies and racks for Modicon M340 and Modicon M580. This product is composed of 8 input channels and 8 output channels and it is supplied with 24V DC. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C/-13°F to 158°F. Modicon X80 modules provide a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. This product is IP20 rated and offers 940097 hours of MTBF. This discrete module has a weight of 0.135kg and dimensions of 32x100x86mm. This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation. This product is certified by CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy and meets EN 61000-6-5, EN 61850-3, EN 61131-2 type 3 standards. This module is compatible with Modicon M340, M580 (Local or Remote I/O) PLCs with a 20-way caged, screw clamp, or spring-type removable terminal block. The product must be installed on the rack and fixed with 2 screws.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, France, United States

Complementary Attributes

Dc Maximum Filtering Time	7 ms
Minimum Switching Current	1 mA 5 V DC

Maximum Switching Voltage	125 V DC264 V AC

Important Information Attributes

Persona Type Ids	EU, OM8, SI
Dielectric Strength	1500 V AC 50/60 Hz 1 minute, primary/secondary2830 V AC 50/60 Hz 1 minute, output relay, 500 V DC 1 minute, between group of I/O
Insulation Resistance	> 10 MOhm 500 V DC, > 10 MOhm 500 V DC> 10 MOhm 500 V DC, > 10 MOhm 500 V DC
Voltage Detection Threshold	< 14 V DC sensor fault, < 14 V DC sensor fault, < 14 V DC sensor fault, < 14 V DC sensor fault, > 18 V DC sensor OK, > 18 V DC sensor OK, > 18 V DC sensor OK, > 18 V DC sensor OK< 14 V DC sensor fault, < 14 V DC sensor fault, < 14 V DC sensor fault, < 14 V DC sensor fault, > 18 V DC sensor OK, > 18 V DC sensor OK
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.3 kg CO2 eq., 0.2981032727
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	21 kg CO2 eq., 21.4653090909
Local Data Status	Publishable
Return Indicator	N
Stock Policy	2
Serviceability	No
Field Service Division	IDIBS
Weee Scope	Out
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2311046EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	2438
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Market Segmentation	Industrial
Dc Maximum Filtering Time	7 ms
Mtbf Reliability	940000 H
Product Or Component Type	discrete I/O module
Range Of Product	Modicon X80
Software Version	v5.9.4
Switching Frequency	1 Hz
Pep Code	ENVPEP2311046EN
Pep Verification Date	2023-11-01
Psr Version	PSR-0005-ed2-2016 03 29
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	10
Energy Model - Installation [A5]	Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
Energy Model - End Of Life [C1-c4]	Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
Nbr. Of Units In Pkg.	1
Take-back	No
Water Use (M3 Eq) Manufacturing [A1-a3]	59516.8

Persona Type Names	End User, OEM - Control Panelbuilder, System Integrator
Environmental Characteristic	gas resistant class Gx, gas resistant class 3C4dust resistant class 3S4, sand resistant class 3S4salt resistant level 2mold growth resistant class 3B2, fungal spore resistant class 3B2
Protection Type	1 external fuse per group of input channel 0.5 A fast blow, reverse polarity protection on input, 1 external fuse per output channel or group of output channel fast blow
Carbon Footprint Of The Distribution Phase [A4]	0.0219682909, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.0447348364, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	13 kg CO2 eq., 13.4007088643
Local Publishable Date	2026-07-22
Stocking Flag	Y
Device Type	PLC System - PLC Component
Traceability	Yes
Average Life Duration	20 year(s)
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	Yes
Tier Id	2
Function Option Id	STANDARD
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
Dc Typical Filtering Time	4 ms
Product Availability	Non-Stock - Not normally stocked in distribution facility
Protective Treatment	conformal coating
Returnability	No
Sustainable Packaging	Yes
Total Lifecycle Carbon Footprint	35 kg CO2 eq.
Database Version	2022-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	The Modicon M X80 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 1.79W (150 mA 3.3 V DC). The module offers the following ranges of voltage and current :& 10Voltage range: +/-5 V/+/-10 V/0..5 V/0..10 V/1..5 V,& 10Current range: +/-20 mA/0..20 mA/4..20 mA& 10& 10IP Degree of Protection: IP20& 10IEC 61010-2-201, IEC 61131-2,UL 61010-2-201,CSA C22.2 No 61010-2-201
Functional-unit Unit	Unit
Energy Model - Manufacturing [A1-a3]	Energy model used: Electricity Mix; Production mix; Low voltage; FR
Energy Model - Use [B6]	Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
Recyclability Potential In %	3
Package Weight(Lbs)	168.000 g
Warranty (In Months)	18
Customs Code	8538908180

Environment Attributes Main

Directives	2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI2311046EN
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Code	ENVPEP2311046EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review

Take Back	No
China Rohs Regulation	X
Carbon Footprint	35.2308243552
Environmental Disclosure	ENVPEP2311046EN
Ip Degree Of Protection	IP20
Packaging Without Single Use Plastic	Yes
Relative Humidity	5-95 % 55-55 °C without condensation
Pep Verification Date	2023-11-01
Psr Version	PSR-0005-ed2-2016 03 29

General Attributes

Product Or Component Type	discrete I/O module

Range Of Product	Modicon X80

ETIM

ETIM 8	EC001419

ETIM 9	EC001419

Output Attributes

Response Time On Output	<= 8 ms deactivation, <= 8 ms deactivation, <= 10 ms activation, <= 10 ms activation<= 8 ms deactivation, <= 8 ms deactivation, <= 10 ms activation, <= 10 ms activation
