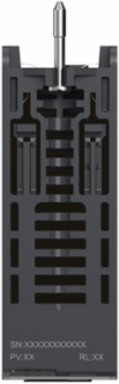

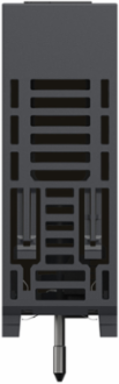

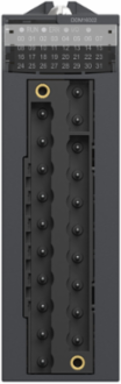

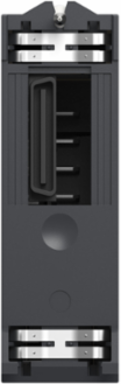

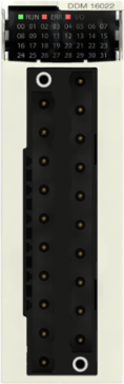

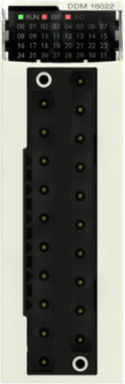

Schneider Electric BMXDDM16022 Modicon X80 Discrete I/O Module, 8 Inputs, 8 Outputs, 24V DC
- MPN: BMXDDM16022
- PPN: SCH-BMXDDM16022
CAD
$666.11
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This discrete I/O module has 8 input channels, 8 solid state output channels. It is a discrete I/O module with a discrete input/output voltage of 24V DC, an output current of 0.5A, a maximum power dissipation of 3.7W and current consumption of 67mA at 24V DC, 111mA at 3.3V DC. This product is robust, high quality and based on the latest innovative technology. It offers 447581 hours of MTBF. It is an IP20 rated product. It weighs 0.115kg. It is suitable for medium to large process applications. This product is certified by Merchant Navy, RCM, CSA, EAC, CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This input compatible with 2-wire/3-wire proximity sensors conforming to IEC 60947-5-2. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France
Complementary Attributes
- Maximum Voltage Drop
- <1.2 V at state 1, <1.2 V at state 1<1.2 V at state 1, <1.2 V at state 1
- Maximum Current Per Module
- 5 A
Dc Maximum Filtering Time7 ms
Maximum Overload Time15 ms
Important Information Attributes
- Persona Type Ids
- EU, OM8, SI
- Current Consumption
- <= 111 mA 3.3 V DC, <= 111 mA 3.3 V DC, <= 111 mA 3.3 V DC, <= 67 mA 24 V DC, <= 67 mA 24 V DC, <= 67 mA 24 V DC<= 111 mA 3.3 V DC, <= 111 mA 3.3 V DC, <= 111 mA 3.3 V DC, <= 67 mA 24 V DC, <= 67 mA 24 V DC
- Insulation Resistance
- > 10 MOhm 500 V DC, > 10 MOhm 500 V DC> 10 MOhm 500 V DC, > 10 MOhm 500 V DC
- Protection Type
- 1 external fuse per group of input channel 0.5 A fast blow, overvoltage protection on output, reverse polarity protection on input, reverse polarity protection on output
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0186992, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0380778667, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 13 kg CO2 eq., 13.4007088643
- Local Publishable Date
- 2026-01-23
- Stocking Flag
- N
- Device Type
- PLC System - PLC Component
- Traceability
- Yes
- Average Life Duration
- 20 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 2
- Function Option Id
- STANDARD
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Dc Maximum Filtering Time
- 7 ms
- Mtbf Reliability
- 450000 H
- Product Or Component Type
- discrete I/O module
- Range Of Product
- Modicon X80
- Reverse Polarity Protection
- reverse mounted diode
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 32 kg CO2 eq.
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- The Modicon M X80 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 1.79W (150 mA 3.3 V DC). The module offers the following ranges of voltage and current :& 10Voltage range: +/-5 V/+/-10 V/0..5 V/0..10 V/1..5 V,& 10Current range: +/-20 mA/0..20 mA/4..20 mA& 10& 10IP Degree of Protection: IP20& 10IEC 61010-2-201, IEC 61131-2,UL 61010-2-201,CSA C22.2 No 61010-2-201
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Electricity Mix; Production mix; Low voltage; FR
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
- Recyclability Potential In %
- 3
- Package Weight(Lbs)
- 142.000 g
- Warranty (In Months)
- 18
- Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3]
- 231.478
- Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Manufacturing [A1-a3]
- 38641.2
- Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]
- 49041.2
- Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]
- 224.458
- Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
- 23667.8
- Customs Code
- 8538908180
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
Dielectric Strength1500 V AC 50/60 Hz 1 minute, output/ground, 1500 V AC 50/60 Hz 1 minute, output/internal logic, 1500 V AC 50/60 Hz 1 minute, primary/secondary, 500 V DC 1 minute, between group of inputs and outputs
Load Impedance Ohmic>= 48 Ohm, >= 48 Ohm
Voltage Detection Threshold< 14 V DC preactuator fault, < 14 V DC preactuator fault, < 14 V DC preactuator fault, < 14 V DC preactuator fault, < 14 V DC sensor fault, < 14 V DC sensor fault, < 14 V DC sensor fault, < 14 V DC sensor fault, > 18 V DC preactuator OK, > 18 V DC preactuator OK, > 18 V DC preactuator OK, > 18 V DC preactuator OK, > 18 V DC sensor OK, > 18 V DC sensor OK, > 18 V DC sensor OK, > 18 V DC sensor OK< 14 V DC preactuator fault, < 14 V DC preactuator fault, < 14 V DC preactuator fault, < 14 V DC preactuator fault, < 14 V DC sensor fault, > 18 V DC preactuator OK, > 18 V DC preactuator OK
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.3 kg CO2 eq., 0.2537426667
Carbon Footprint Of The Manufacturing Phase [A1 To A3]18 kg CO2 eq., 18.2710666667
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Field Service DivisionIDIBS
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2311046EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2438
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Market SegmentationIndustrial
Current Per Channel0.625 A
Dc Typical Filtering Time4 ms
Product AvailabilityStock - Normally stocked in distribution facility
Protective Treatmentstandard version
ReturnabilityYes
Software Versionv5.9.4
Switching Frequency0.5/LI² Hz
Pep CodeENVPEP2311046EN
Pep Verification Date2023-11-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
Nbr. Of Units In Pkg.1
Take-backNo
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]216.32
Ecotoxicity (Fresh Water) (Ctue) End Of Life [C1-c4]75.0022
Net Use Of Fresh Water (M3) End Of Life [C1-c4]10012.6
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]216.32
Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle23667.8
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]213.954
Environment Attributes Main
- Directives
- 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2311046EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP2311046EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
China Rohs RegulationX
Carbon Footprint31.9822952643
Environmental DisclosureENVPEP2311046EN
Ip Degree Of ProtectionIP20
Packaging Without Single Use PlasticYes
Relative Humidity5-95 % 55-55 °C without condensation
Pep Verification Date2023-11-01
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- discrete I/O module
Range Of ProductModicon X80
ETIM
- ETIM 8
- EC001419
ETIM 9EC001419
Output Attributes
- Paralleling Of Outputs
- yes : 2 maximum
Response Time On Output1.2 ms
Surge Protection And Filtering Attributes
- Dc Typical Filtering Time
- 4 ms
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Discrete Input Number
- 8
Input Impedance6800 Ohm
